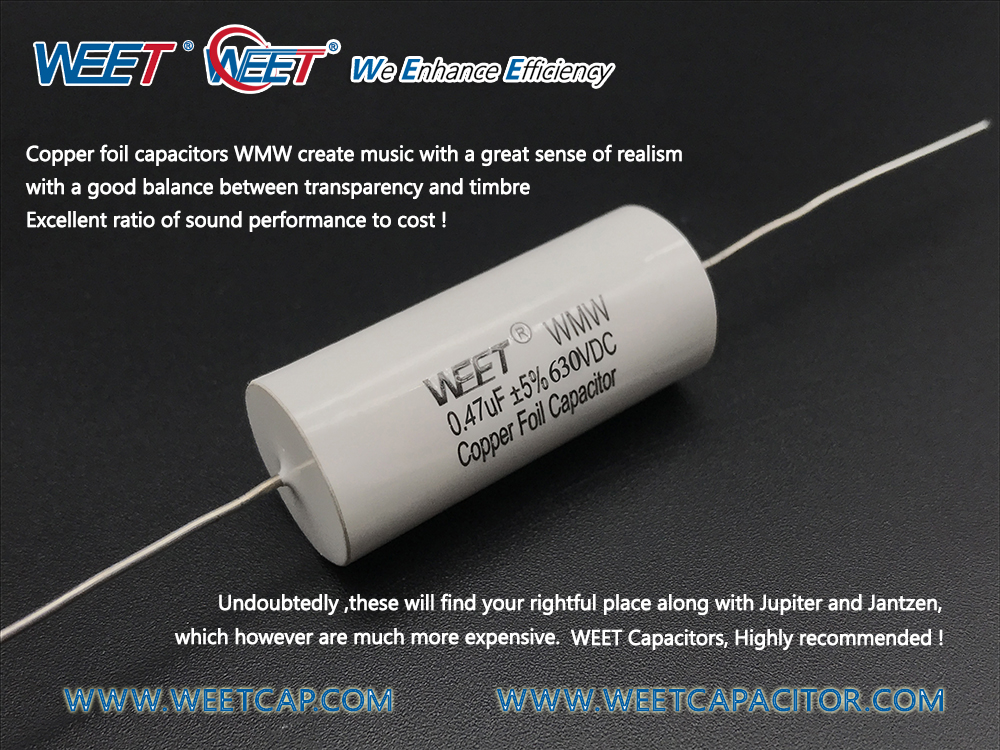

WEET 630VDC 0.47uF Copper Foil and Film Capacitors Cross Reference to Mundorf Duelund Jantzen Crossover In Speaker

Date: 2023-05-30
Passive flammability: GB10191-88    IEC384-16

Operating temperature: -55℃～+85℃

Capacitance range: 0.1~10uF

Capacitance tolerance: ±5% 1KHz

Rated voltage:100V.DC, 200V.DC, 400V.DC，250VDC, 600VDC，630VDC

Withstand voltage: 1.6VR 5S

Dissipation factor :≤0.0005 1KHz

Insulate the electric resistance: CR≤0.33μF,    I.R≥15,000MΩ

CR>0.33μF, I.R≥5,000S

Leads Diameter: 1.0  Pure Copper Wire


WMW Pure Copper Foil and Film Polypropylene Capacitors Axial Stock pcs
WMW Copper Foil Film PP 0.33uF 250V ±5% 15x35mm Axial RoHS 100
WMW Copper Foil Film PP 0.47uF 250V ±5% 16x35mm Axial RoHS 100
WMW Copper Foil Film PP 1.0uF 250V ±5% 21x35mm Axial RoHS 100
WMW Copper Foil Film PP 0.1uF 630V ±5% 16x35mm Axial RoHS 100
WMW Copper Foil Film PP 0.22uF 630V ±5% 20x35mm Axial RoHS 100
WMW Copper Foil Film PP 0.33uF 630V ±5% 24x35mm Axial RoHS 100
WMW Copper Foil Film PP 0.47uF 630V ±5% 24x35mm Axial RoHS 100
