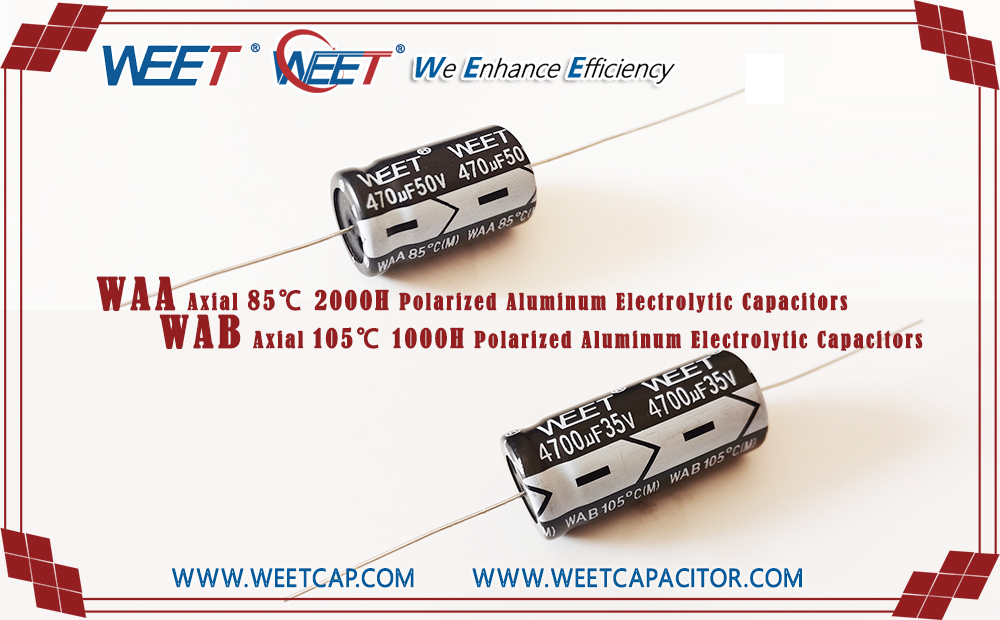

WEET WAA Axial 85℃ 2000H Polarized Aluminum Electrolytic Capacitors Standard Low Voltage
Operating Temperature：
-40℃~+85℃
Rated Voltage：
6.3V ~ 450V
Capacitance Range：
1uF ~ 10000uF
Capacitance Tolerance：
±10%(K), ±20%(M)
WEET WAB Axial 105℃ 1000H Polarized Aluminum Electrolytic Capacitors Super Low Voltage
Operating Temperature：
-40℃~+105℃
Rated Voltage：
6.3V ~ 450V
Capacitance Range：
1uF ~ 4700uF
Capacitance Tolerance：
±10%(K), ±20%(M)
Dimension diameter: Φ 5mm to Φ 25mm
Height (length): 11mm to 52mm
Voltage: 6.3V to 500V
Temperature: - 40 ℃ to+85 ℃，2000H; - 40 ℃ to+105 ℃, 1000H
Capacity: 0.1uF to 10000uF
Service life: 1000 hrs to 2000 hrs
Sticker size: Φ 5mm to Φ 16mm
Package: horizontal (axial through core) electrolytic capacitor
Polarity: Polarized
WEET also can provide from polarity to non polarity (bipolar, horizontal non polarity) electrolytic capacitor
Characteristics: from ordinary to special (high-frequency low impedance electrolytic capacitor, low leakage electrolytic capacitor, special size electrolytic capacitor)
Products used in: communication products (power supply, main plate), frequency converter, power supply, audio and frequency divider, LCD, energy-saving lamp, ballast, camera Audio amplifier, electronic digital picture frame, automotive electronics, LCD TV special aluminum electrolytic capacitor, etc
