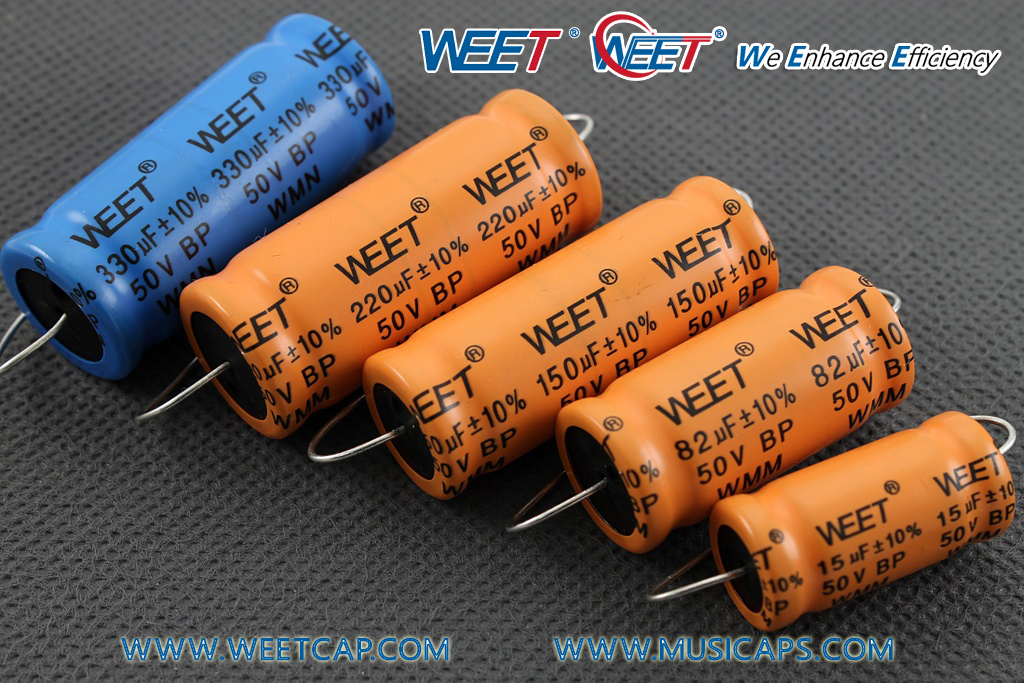

WEET Bi Polar Axial Aluminum Electrolytic Capacitors has very low DF, most popular DF is 5%, but we also can provide 1% 2% 3%, 4%, 5% 6%, 7%, 8%, 9%, 10%, 12% are available on request
https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-BP-Axial-Bi-polar-120HZ-Aluminum-Electrolytic-Capacitors-For-Audio-and-Speaker-System.html
https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-BP-Axial-Bi-polar-Aluminum-Electrolytic-Capacitors-for-Audio-and-Speaker-System.html
|
WEET DESCRIPTION
|
Art. No.
|
VISATON Article
|
Technical Data
|
|
WEET WMM 1000H 105°C, DF at Max 5% 1KHz BP Axial Ecap
|
|
15uF ±10% 50V OD:L: 13*27mm
|
5379
|
BIPOLAR CAPACITOR 15,0 uF
|
Dimensions 8 x 20 mm
|
|
22uF ±10% 50V OD:L: 13*27mm
|
5381
|
BIPOLAR CAPACITOR 22,0 uF
|
Dimensions10 x 25.5 mm
|
|
33uF ±10% 50V OD:L: 13*31mm
|
5380
|
BIPOLAR CAPACITOR 33,0 uF
|
Dimensions10 x 25.5 mm
|
|
47uF ±10% 50V OD:L: 13*31mm
|
5382
|
BIPOLAR CAPACITOR 47,0 uF
|
Dimensions13 x 26 mm
|
|
68uF ±10% 50V OD:L: 16*34mm
|
5384
|
BIPOLAR CAPACITOR 68,0 uF
|
Dimensions13 x 30 mm
|
|
82uF ±10% 50V OD:L: 16*34mm
|
5386
|
BIPOLAR CAPACITOR 82,0 uF
|
Dimensions16 x 33.5 mm
|
|
100uF ±10% 50V OD:L: 16*34mm
|
5388
|
BIPOLAR CAPACITOR 100,0 uF
|
Dimensions16 x 33.5 mm
|
|
150uF ±10% 50V OD:L: 16*43mm
|
5390
|
BIPOLAR CAPACITOR 150,0 uF
|
Dimensions16 x 33.5 mm
|
|
220uF ±10% 50V OD:L: 18*44mm
|
5392
|
BIPOLAR CAPACITOR 220,0 uF
|
Dimensions18 x 35.5 mm
|
|
WEET WMN 1000H 105°C, DF at Max 5% 120Hz BP Axial Ecap
|
|
330uF ±10% 50V OD:L: 18*44mm
|
5394
|
BIPOLAR CAPACITOR 330,0 uF
|
Dimensions22 x 38 mm
|
|
470uF ±10% 50V OD:L: 22*45mm
|
5396
|
BIPOLAR CAPACITOR 470,0 uF
|
Dimensions25 x 36.5 mm
|
