WEET WTP 3329 0.5W 6mm Round Trimming Potentiometer

PDF Download

Features

WEET WTP 3329 0.5W 6mm Round Trimming Potentiometer
Single Turn/ Cermet/ Industrial/ Sealed.
4 Terminal Styles.

Detailed Specifications

Standard Resistance Range 100Ω - 2MΩ
Resistance Tolerance ±10% ; ±20% for 10ohm
Absolute Minimum Resistance ≤10Ω(100Ω≤R≤1KΩ) ≤1%R(R>1KΩ)
Contact Resistance Variation CRV≤3% or 5Ω  (whichever is larger)
Insulation Resistance R1≥1GΩ(500Vdc)
Withstand Voltage 500VAC
Effective Travel 230°

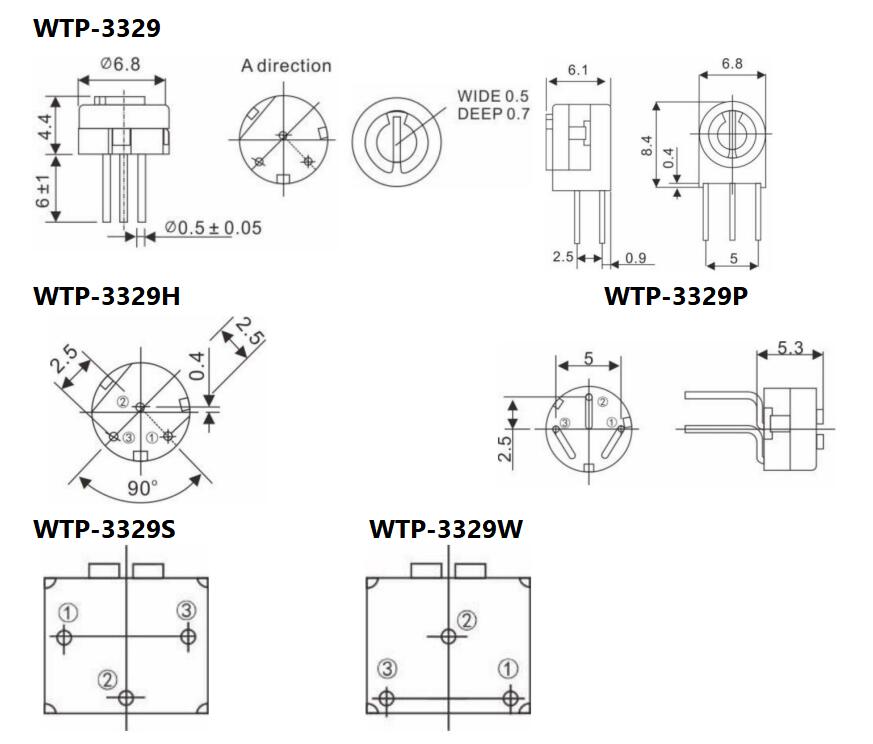

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations

Cross Reference

Cross BOURNS Murata B.I. (Beckman, TT Electronics) Tocos Vishay
3329 PV32 discontinued 62, 82 RJC06 T7
