WEET WVE 105℃ 2000 Hours Low Impedance SMD Aluminum Electrolytic Capacitors

Features

Low-Impedance
Operating with wide temperature range -55 ~ +105°C
Load life of 1000 ~ 2000 Hours
Comply with the RoHS directive

Detailed Specifications

Operating Temperature：			-55℃~+105℃
Rated Voltage：			6.3V - 100V.DC
Capacitance Range：			1uF - 4700uF
Capacitance Tolerance：			±20% at 120Hz, 20°C
Various Dimensions Size mm：			4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5, 12.5x13.5, 12.5x16, 16x16.5, 16x21.5, 18x16.5, 18x18.5

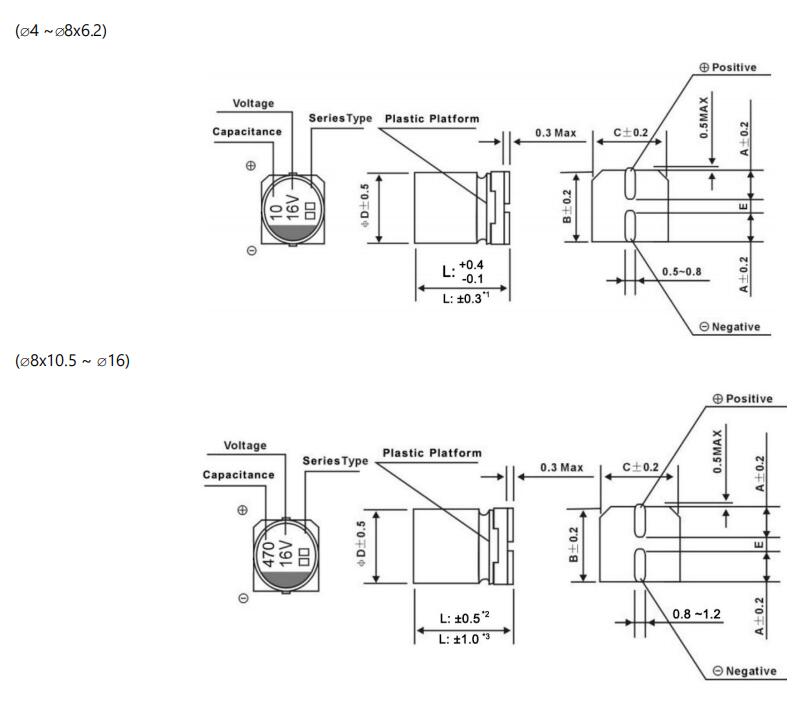

Product Drawing

Main Applications

The products are mainly used in LED display screen, outdoor advertising full-color display screen, PC power supply, audio power amplifier, adapter, charger, security, vehicle DVD, network communication equipment, control board card, set-top box, LED energy-saving lamp rectifier and other fields.

Cross Reference

Series	WEET PN	Size	Voltage	105°C 1000~2000 Hours Low lmpedance SMD Electrolytic Capacitor	Cross Reference Only
WVE	WVE1H151M100105TR	10*10.5mm	50V	SMD Aluminum Electrolytic Capacitor 150uF 50V +/-20% 105°C 2000Hrs	Panasonic EEEFK1H151P
WVE	WVE1H101M080105TR	8*10.5mm	50V	SMD Aluminum Electrolytic Capacitor 100uF 50V +/-20% 105°C 2000Hrs	Panasonic EEEFK1H101P
WVE	WVE1H470M063077TR	6.3*7.7mm	50V	SMD Aluminum Electrolytic Capacitor 47uF 50V +/-20% 105°C 2000Hrs	Panasonic EEEFK1H470XP
WVE	WVE1H330M063077TR	6.3*7.7mm	50V	SMD Aluminum Electrolytic Capacitor 33uF 50V +/-20% 105°C 2000Hrs	Panasonic EEEFK1H330XP
WVE	WVE1H220M063054TR	6.3*5.4mm	50V	SMD Aluminum Electrolytic Capacitor 22uF 50V +/-20% 105°C 1000Hrs	Panasonic EEEFK1H220P
WVE	WVE1H100M063054TR	6.3*5.4mm	50V	SMD Aluminum Electrolytic Capacitor 10uF 50V +/-20% 105°C 1000Hrs	Panasonic EEEFK1H100P
WVE	WVE1V331M100105TR	10*10.5mm	35V	SMD Aluminum Electrolytic Capacitor 330uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V331P
WVE	WVE1V221M080105TR	8*10.5mm	35V	SMD Aluminum Electrolytic Capacitor 220uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V221P
WVE	WVE1V101M063077TR	6.3*7.7mm	35V	SMD Aluminum Electrolytic Capacitor 100uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V101XP
WVE	WVE1V680M063077TR	6.3*7.7mm	35V	SMD Aluminum Electrolytic Capacitor 68uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V680XP
WVE	WVE1V470M063054TR	6.3*5.4mm	35V	SMD Aluminum Electrolytic Capacitor 47uF 35V +/-20% 105°C 1000Hrs	Panasonic EEEFK1V470P
WVE	WVE1V330M063054TR	6.3*5.4mm	35V	SMD Aluminum Electrolytic Capacitor 33uF 35V +/-20% 105°C 1000Hrs	Panasonic EEEFK1V330P
WVE	WVE1V220M050054TR	5*5.4mm	35V	SMD Aluminum Electrolytic Capacitor 22uF 35V +/-20% 105°C 1000Hrs	Panasonic EEEFK1V220R
WVE	WVE1V100M050054TR	5*5.4mm	35V	SMD Aluminum Electrolytic Capacitor 10uF 35V +/-20% 105°C 1000Hrs	Panasonic EEEFK1V100R
WVE	WVE1V4R7M040054TR	4*5.4mm	35V	SMD Aluminum Electrolytic Capacitor 4.7uF 35V +/-20% 105°C 1000Hrs	Panasonic EEEFK1V4R7R
WVE	WVE1E471M100105TR	10*10.5mm	25V	SMD Aluminum Electrolytic Capacitor 470uF 25V +/-20% 105°C 2000Hrs	Panasonic EEEFK1E471P
WVE	WVE1E331M080105TR	8*10.5mm	25V	SMD Aluminum Electrolytic Capacitor 330uF 25V +/-20% 105°C 2000Hrs	Panasonic EEEFK1E331V
WVE	WVE1E151M080105TR	8*10.5mm	25V	SMD Aluminum Electrolytic Capacitor 150uF 25V +/-20% 105°C 2000Hrs	Panasonic EEEFK1E151P
WVE	WVE1E470M063054TR	6.3*5.4mm	25V	SMD Aluminum Electrolytic Capacitor 47uF 25V +/-20% 105°C 1000Hrs	Panasonic EEEFK1E470P
WVE	WVE1E330M063054TR	6.3*5.4mm	25V	SMD Aluminum Electrolytic Capacitor 33uF 25V +/-20% 105°C 1000Hrs	Panasonic EEEFK1E330V
WVE	WVE1E220M050054TR	5*5.4mm	25V	SMD Aluminum Electrolytic Capacitor 22uF 25V +/-20% 105°C 1000Hrs	Panasonic EEEFK1E220R
WVE	WVE1E100M040054TR	4*5.4mm	25V	SMD Aluminum Electrolytic Capacitor 10uF 25V +/-20% 105°C 1000Hrs	Panasonic EEEFK1E100R
WVE	WVE1C471M080105TR	8*10.5mm	16V	SMD Aluminum Electrolytic Capacitor 470uF 16V +/-20% 105°C 2000Hrs	Panasonic EEEFK1C471P
WVE	WVE1C331M080105TR	8*10.5mm	16V	SMD Aluminum Electrolytic Capacitor 330uF 16V +/-20% 105°C 2000Hrs	Panasonic EEEFK1C331P
WVE	WVE1C221M063077TR	6.3*7.7mm	16V	SMD Aluminum Electrolytic Capacitor 220uF 16V +/-20% 105°C 2000Hrs	Panasonic EEEFK1C221XP
WVE	WVE1C151M063077TR	6.3*7.7mm	16V	SMD Aluminum Electrolytic Capacitor 150uF 16V +/-20% 105°C 2000Hrs	Panasonic EEEFK1C151XV
WVE	WVE1C680M063054TR	6.3*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 68uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C680P
WVE	WVE1C470M050054TR	5*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 47uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C470UR
WVE	WVE1C470M063054TR	6.3*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 47uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C470P
WVE	WVE1C220M050054TR	5*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 22uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C220R
WVE	WVE1C220M040054TR	4*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 22uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C220UR
WVE	WVE1C100M040054TR	4*5.4mm	16V	SMD Aluminum Electrolytic Capacitor 10uF 16V +/-20% 105°C 1000Hrs	Panasonic EEEFK1C100R
WVE	WVE1A102M100105TR	10*10.5mm	10V	SMD Aluminum Electrolytic Capacitor 1000uF 10V +/-20% 105°C 2000Hrs	Panasonic EEEFK1A102P
WVE	WVE1A471M080105TR	8*10.5mm	10V	SMD Aluminum Electrolytic Capacitor 470uF 10V +/-20% 105°C 2000Hrs	Panasonic EEEFK1A471P
WVE	WVE1A331M080105TR	8*10.5mm	10V	SMD Aluminum Electrolytic Capacitor 330uF 10V +/-20% 105°C 2000Hrs	Panasonic EEEFK1A331P
WVE	WVE1A221M063077TR	6.3*7.7mm	10V	SMD Aluminum Electrolytic Capacitor 220uF 10V +/-20% 105°C 2000Hrs	Panasonic EEEFK1A221XP
WVE	WVE1A151M063054TR	6.3*5.4mm	10V	SMD Aluminum Electrolytic Capacitor 150uF 10V +/-20% 105°C 1000Hrs	Panasonic EEEFK1A151P
WVE	WVE1A330M040054TR	4*5.4mm	10V	SMD Aluminum Electrolytic Capacitor 33uF 10V +/-20% 105°C 1000Hrs	Panasonic EEEFK1A330UR
WVE	WVE1A330M050054TR	5*5.4mm	10V	SMD Aluminum Electrolytic Capacitor 33uF 10V +/-20% 105°C 1000Hrs	Panasonic EEEFK1A330R
WVE	WVE1A220M040054TR	4*5.4mm	10V	SMD Aluminum Electrolytic Capacitor 22uF 10V +/-20% 105°C 1000Hrs	Panasonic EEEFK1A220R
WVE	WVE0J102M080105TR	8*10.5mm	6.3V	SMD Aluminum Electrolytic Capacitor 1000uF 6.3V +/-20% 105°C 2000Hrs	Panasonic EEEFK0J102P
WVE	WVE0J471M080105TR	8*10.5mm	6.3V	SMD Aluminum Electrolytic Capacitor 470uF 6.3V +/-20% 105°C 2000Hrs	Panasonic EEEFK0J471P
WVE	WVE0J471M080105TR	8*10.5mm	6.3V	SMD Aluminum Electrolytic Capacitor 470uF 6.3V +/-20% 105°C 2000Hrs	Panasonic EEEFK0J471P
WVE	WVE0J331M063077TR	6.3*7.7mm	6.3V	SMD Aluminum Electrolytic Capacitor 330uF 6.3V +/-20% 105°C 2000Hrs	Panasonic EEEFK0J331XP
WVE	WVE0J221M063054TR	6.3*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 220uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J221P
WVE	WVE0J101M050054TR	5*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 100uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J101UR
WVE	WVE0J101M063054TR	6.3*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 100uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J101P
WVE	WVE0J470M040054TR	4*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 47uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J470UR
WVE	WVE0J470M050054TR	5*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 47uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J470R
WVE	WVE0J220M040054TR	4*5.4mm	6.3V	SMD Aluminum Electrolytic Capacitor 22uF 6.3V +/-20% 105°C 1000Hrs	Panasonic EEEFK0J220R
WVE	WVE1C681M100105TR	10*10.5mm	16V	SMD Aluminum Electrolytic Capacitor 680uF 16V +/-20% 105°C 2000Hrs	Panasonic EEEFK1C681P
WVE	WVE1V151M080105TR	8*10.5mm	35V	SMD Aluminum Electrolytic Capacitor 150uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V151P
WVE	WVE1V101M080105TR	8*10.5mm	35V	SMD Aluminum Electrolytic Capacitor 100uF 35V +/-20% 105°C 2000Hrs	Panasonic EEEFK1V101P
WVE	WVE1H221M100105TR	10*10.5mm	50V	SMD Aluminum Electrolytic Capacitor 220uF 50V +/-20% 105°C 2000Hrs	Panasonic EEEFK1H221P
WVE	WVE1E101M063077TR	6.3*7.7mm	25V	SMD Aluminum Electrolytic Capacitor 100uF 25V +/-20% 105°C 2000Hrs	Panasonice EEEFK1E101XP
