WEET WVZ 105℃ 3000 Hours Extra Lower Impedance SMD Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WVZ 105℃ 3000 Hours Extra Lower Impedance SMD Aluminum Electrolytic Capacitors
Extra low impedance with temperature range -55 ~ +105°C
Impedance 40~60% less than VE series
Comply with the RoHS directive

Detailed Specifications


Operating Temperature： -55℃~+105℃
Rated Voltage： 6.3V - 50V.DC
Capacitance Range： 4.7uF - 4700uF
Capacitance Tolerance： ±20% at 120Hz, 20°C
Various Dimensions Size mm： 4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5, 12.5x13.5, 12.5x16, 16x16.5, 16x21.5, 18x16.5, 18x18.5

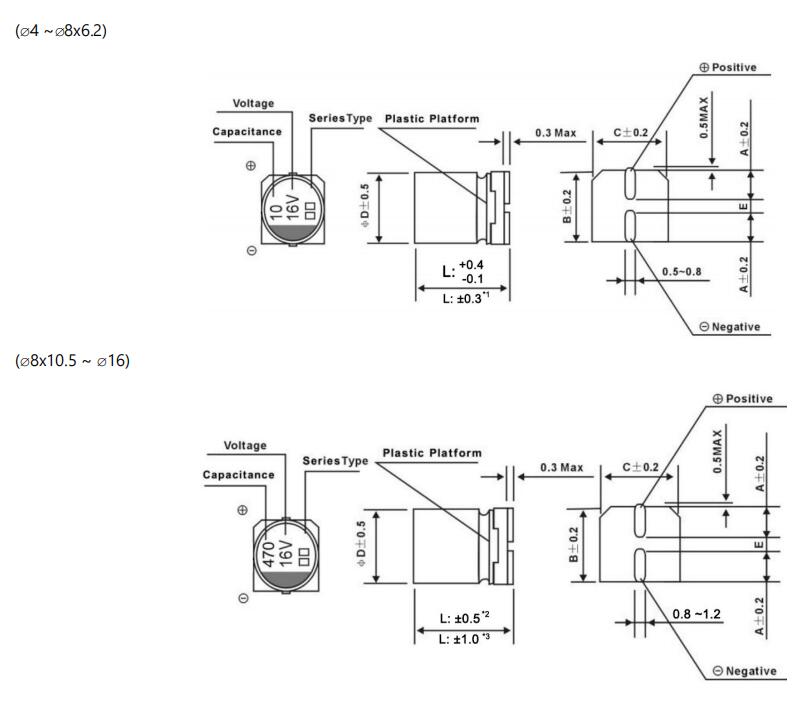

Product Drawing

Main Applications

The products are mainly used in LED display screen, outdoor advertising full-color display screen, PC power supply, audio power amplifier, adapter, charger, security, vehicle DVD, network communication equipment, control board card, set-top box, LED energy-saving lamp rectifier and other fields.

Cross Reference

Series WEET PN Size Voltage 105°C Extremely Low Impedance SMD Electrolytic Capacitor Cross Reference Only
WVZ WVZ1A102M100105TR 10*10.5mm 10V Chip Aluminum Electrolytic Capacitor 1000uF 10V +/-20% 105C 5000Hrs Panasonic EEEFK1A102GP
WVZ WVZ1C681M100105TR 10*10.5mm 16V Chip Aluminum Electrolytic Capacitor 680uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C681GP
WVZ WVZ1H471M160165TR 16*16.5mm 50V Chip Aluminum Electrolytic Capacitor 470uF 50V +/-20% 105C 5000Hrs Panasonic EEVFK1H471M
WVZ WVZ1H681M160165TR 16*16.5mm 50V Chip Aluminum Electrolytic Capacitor 680uF 50V +/-20% 105C 5000Hrs Panasonic EEVFK1H681M
WVZ WVZ1E332M180165TR 18*16.5mm 25V Chip Aluminum Electrolytic Capacitor 3300uF 25V +/-20% 105C 5000Hrs Panasonic EEVFK1E332V
WVZ WVZ1J220M080105TR 8*10.5mm 63V Chip Aluminum Electrolytic Capacitor 22uF 63V +/-20% 105C 5000Hrs Panasonic EEEFK1J220P
WVZ WVZ0J331M080105TR 8*10.5mm 6.3V Chip Aluminum Electrolytic Capacitor 330uF 6.3V +/-20% 105C 5000Hrs Panasonic EEEFK0J331P
WVZ WVZ2A330M100135TR 10*13.5mm 100V Chip Aluminum Electrolytic Capacitor 33uF 100V +/-20% 105C 5000Hrs Panasonic EEEFK2A330P
WVZ WVZ0J102M080105TR 8*10.5mm 6.3V Chip Aluminum Electrolytic Capacitor 1000uF 6.3V +/-20% 105C 5000Hrs Panasonic EEEFK0J102P
WVZ WVZ1E101M080105TR 8*10.5mm 25V Chip Aluminum Electrolytic Capacitor 100uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E101P
WVZ WVZ1H470M080105TR 8*10.5mm 50V Chip Aluminum Electrolytic Capacitor 47uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H470P
WVZ WVZ2A220M080105TR 8*10.5mm 100V Chip Aluminum Electrolytic Capacitor 22uF 100V +/-20% 105C 5000Hrs Panasonic EEEFK2A220P
WVZ WVZ1C221M080105TR 8*10.5mm 16V Chip Aluminum Electrolytic Capacitor 220uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C221P
WVZ WVZ1A331M080105TR 8*10.5mm 10V Chip Aluminum Electrolytic Capacitor 330uF 10V +/-20% 105C 5000Hrs Panasonic EEEFK1A331P
WVZ WVZ1C471M080105TR 8*10.5mm 16V Chip Aluminum Electrolytic Capacitor 470uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C471P
WVZ WVZ1E331M080105TR 8*10.5mm 25V Chip Aluminum Electrolytic Capacitor 330uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E331P
WVZ WVZ1E221M080105TR 8*10.5mm 25V Chip Aluminum Electrolytic Capacitor 220uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E221P
WVZ WVZ1E151M080105TR 8*10.5mm 25V Chip Aluminum Electrolytic Capacitor 150uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E151P
WVZ WVZ1V101M080105TR 8*10.5mm 35V Chip Aluminum Electrolytic Capacitor 100uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V101P
WVZ WVZ1V221M080105TR 8*10.5mm 35V Chip Aluminum Electrolytic Capacitor 220uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V221P
WVZ WVZ1H101M080105TR 8*10.5mm 50V Chip Aluminum Electrolytic Capacitor 100uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H101P
WVZ WVZ1V101M063077TR 6.3*7.7mm 35V Chip Aluminum Electrolytic Capacitor 100uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V101P
WVZ WVZ1C151M063077TR 6.3*7.7mm 16V Chip Aluminum Electrolytic Capacitor 150uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C151XP
WVZ WVZ1H220M063077TR 6.3*7.7mm 50V Chip Aluminum Electrolytic Capacitor 22uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H220P
WVZ WVZ1E680M063077TR 6.3*7.7mm 25V Chip Aluminum Electrolytic Capacitor 68uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E680P
WVZ WVZ0J471M080105TR 8*10.5mm 6.3V Chip Aluminum Electrolytic Capacitor 470uF 6.3V +/-20% 105C 5000Hrs Panasonic EEEFK0J471P
WVZ WVZ1K100M063077TR 6.3*7.7mm 80V Chip Aluminum Electrolytic Capacitor 10uF 80V +/-20% 105C 5000Hrs Panasonic EEEFK1K100XP
WVZ WVZ1V470M063077TR 6.3*7.7mm 35V Chip Aluminum Electrolytic Capacitor 47uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V470P
WVZ WVZ1A221M063077TR 6.3*7.7mm 10V Chip Aluminum Electrolytic Capacitor 220uF 10V +/-20% 105C 5000Hrs Panasonic EEEFK1A221XP
WVZ WVZ1J220M063077TR 6.3*7.7mm 63V Chip Aluminum Electrolytic Capacitor 22uF 63V +/-20% 105C 5000Hrs Panasonic EEEFK1J220XV
WVZ WVZ1E101M063077TR 6.3*7.7mm 25V Chip Aluminum Electrolytic Capacitor 100uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E101XP
WVZ WVZ1C101M063077TR 6.3*7.7mm 16V Chip Aluminum Electrolytic Capacitor 100uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C101P
WVZ WVZ1C221M063077TR 6.3*7.7mm 16V Chip Aluminum Electrolytic Capacitor 220uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C221XP
WVZ WVZ1V220M063058TR 6.3*5.8mm 35V Chip Aluminum Electrolytic Capacitor 22uF 35V +/-20% 105C 2000Hrs Panasonic EEEFK1V220R
WVZ WVZ1E470M063058TR 6.3*5.8mm 25V Chip Aluminum Electrolytic Capacitor 47uF 25V +/-20% 105C 2000Hrs Panasonic EEEFK1E470P
WVZ WVZ0J221M063058TR 6.3*5.8mm 6.3V Chip Aluminum Electrolytic Capacitor 220uF 6.3V +/-20% 105C 2000Hrs Panasonic EEEFK0J221P
WVZ WVZ1C470M063058TR 6.3*5.8mm 16V Chip Aluminum Electrolytic Capacitor 47uF 16V +/-20% 105C 2000Hrs Panasonic EEEFK1C470P
WVZ WVZ1V331M100135TR 10*13.5mm 35V Chip Aluminum Electrolytic Capacitor 330uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V331P
WVZ WVZ1V470M063058TR 6.3*5.8mm 35V Chip Aluminum Electrolytic Capacitor 47uF 35V +/-20% 105C 2000Hrs Panasonic EEEFK1V470P
WVZ WVZ1H220M063058TR 6.3*5.8mm 50V Chip Aluminum Electrolytic Capacitor 22uF 50V +/-20% 105C 2000Hrs Panasonic EEEFK1H220P
WVZ WVZ1E152M160165TR 16*16.5mm 25V Chip Aluminum Electrolytic Capacitor 1500uF 25V +/-20% 105C 5000Hrs Panasonic EEVFK1E152M
WVZ WVZ0J332M125160TR 12.5*16mm 6.3V Chip Aluminum Electrolytic Capacitor 3300uF 6.3V +/-20% 105C 5000Hrs Panasonic EEVFK0J332Q
WVZ WVZ1E222M160165TR 16*16.5mm 25V Chip Aluminum Electrolytic Capacitor 2200uF 25V +/-20% 105C 5000Hrs Panasonic EEVFK1E222M
WVZ WVZ2A101M125135TR 12.5*13.5mm 100V Chip Aluminum Electrolytic Capacitor 100uF 100V +/-20% 105C 5000Hrs Panasonic EEVFK2A101M
WVZ WVZ1V471M125135TR 12.5*13.5mm 35V Chip Aluminum Electrolytic Capacitor 470uF 35V +/-20% 105C 5000Hrs Panasonic EEVFK1V471Q
WVZ WVZ1V681M125135TR 12.5*13.5mm 35V Chip Aluminum Electrolytic Capacitor 680uF 35V +/-20% 105C 5000Hrs Panasonic EEVFK1V681V
WVZ WVZ1H331M125135TR 12.5*13.5mm 50V Chip Aluminum Electrolytic Capacitor 330uF 50V +/-20% 105C 5000Hrs Panasonic EEVFK1H331Q
WVZ WVZ1J221M125135TR 12.5*13.5mm 63V Chip Aluminum Electrolytic Capacitor 220uF 63V +/-20% 105C 5000Hrs Panasonic EEVFK1J221Q
WVZ WVZ1E102M125135TR 12.5*13.5mm 25V Chip Aluminum Electrolytic Capacitor 1000uF 25V +/-20% 105C 5000Hrs Panasonic EEVFK1E102V
WVZ WVZ2A470M125135TR 12.5*13.5mm 100V Chip Aluminum Electrolytic Capacitor 47uF 100V +/-20% 105C 5000Hrs Panasonic EEVFK2A470Q
WVZ WVZ1H221M100135TR 10*13.5mm 50V Chip Aluminum Electrolytic Capacitor 220uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H221P
WVZ WVZ2A220M100105TR 10*10.5mm 100V Chip Aluminum Electrolytic Capacitor 22uF 100V +/-20% 105C 5000Hrs Panasonic EEEFK2A220P
WVZ WVZ1H151M100105TR 10*10.5mm 50V Chip Aluminum Electrolytic Capacitor 150uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H151P
WVZ WVZ1K470M100135TR 10*13.5mm 80V Chip Aluminum Electrolytic Capacitor 47uF 80V +/-20% 105C 5000Hrs Panasonic EEEFK1K470P
WVZ WVZ0J152M100135TR 10*13.5mm 6.3V Chip Aluminum Electrolytic Capacitor 1500uF 6.3V +/-20% 105C 5000Hrs Panasonic EEEFK0J152P
WVZ WVZ1C471M100105TR 10*10.5mm 16V Chip Aluminum Electrolytic Capacitor 470uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C471P
WVZ WVZ1E471M100105TR 10*10.5mm 25V Chip Aluminum Electrolytic Capacitor 470uF 25V +/-20% 105C 5000Hrs Panasonic EEEFK1E471P
WVZ WVZ1J101M100105TR 10*10.5mm 63V Chip Aluminum Electrolytic Capacitor 100uF 63V +/-20% 105C 5000Hrs Panasonic EEEFK1J101P
WVZ WVZ1V221M100105TR 10*10.5mm 35V Chip Aluminum Electrolytic Capacitor 220uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V221P
WVZ WVZ1H331M100105TR 10*10.5mm 50V Chip Aluminum Electrolytic Capacitor 330uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1V331P
WVZ WVZ1A151M063077TR 6.3*7.7mm 10V Chip Aluminum Electrolytic Capacitor 150uF 10V +/-20% 105C 5000Hrs Panasonic EEEFK1A151P
WVZ WVZ1H4R7M050058TR 5*5.8mm 50V Chip Aluminum Electrolytic Capacitor 4.7uF 50V +/-20% 105C 2000Hrs Panasonic EEEFK1H4R7R
WVZ WVZ1J4R7M050058TR 5*5.8mm 63V Chip Aluminum Electrolytic Capacitor 4.7uF 63V +/-20% 105C 2000Hrs Panasonic EEEFK1J4R7R
WVZ WVZ1C220M050058TR 5*5.8mm 16V Chip Aluminum Electrolytic Capacitor 22uF 16V +/-20% 105C 2000Hrs Panasonic EEEFK1C220R
WVZ WVZ1C470M050058TR 5*5.8mm 16V Chip Aluminum Electrolytic Capacitor 47uF 16V +/-20% 105C 2000Hrs Panasonic EEEFK1C470UR
WVZ WVZ1E220M050058TR 5*5.8mm 25V Chip Aluminum Electrolytic Capacitor 22uF 25V +/-20% 105C 2000Hrs Panasonic EEEFK1E220R
WVZ WVZ1V100M050058TR 5*5.8mm 35V Chip Aluminum Electrolytic Capacitor 10uF 35V +/-20% 105C 2000Hrs Panasonic EEEFK1V100R
WVZ WVZ1A330M050058TR 5*5.8mm 10V Chip Aluminum Electrolytic Capacitor 33uF 10V +/-20% 105C 2000Hrs Panasonic EEEFK1A330R
WVZ WVZ1E330M063058TR 6.3*5.8mm 25V Chip Aluminum Electrolytic Capacitor 33uF 25V +/-20% 105C 2000Hrs Panasonic EEEFK1E330P
WVZ WVZ1H470M063077TR 6.3*7.7mm 50V Chip Aluminum Electrolytic Capacitor 47uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H470XP
WVZ WVZ1V4R7M040058TR 4*5.8mm 35V Chip Aluminum Electrolytic Capacitor 4.7uF 35V +/-20% 105C 2000Hrs Panasonic EEEFK1V4R7R
WVZ WVZ0J220M040058TR 4*5.8mm 6.3V Chip Aluminum Electrolytic Capacitor 22uF 6.3V +/-20% 105C 2000Hrs Panasonic EEEFK0J220R
WVZ WVZ1H100M050058TR 5*5.8mm 50V Chip Aluminum Electrolytic Capacitor 10uF 50V +/-20% 105C 2000Hrs Panasonic EEEFK1H100UR
WVZ WVZ1E100M040058TR 4*5.8mm 25V Chip Aluminum Electrolytic Capacitor 10uF 25V +/-20% 105C 2000Hrs Panasonic EEEFK1E100R
WVZ WVZ1C100M040058TR 4*5.8mm 16V Chip Aluminum Electrolytic Capacitor 10uF 16V +/-20% 105C 2000Hrs Panasonic EEEFK1C100R
WVZ WVZ2A331M180165TR 18*16.5mm 100V Chip Aluminum Electrolytic Capacitor 330uF 100V +/-20% 105C 5000Hrs Panasonic EEVFK2A331V
WVZ WVZ1J681M180165TR 18*16.5mm 63V Chip Aluminum Electrolytic Capacitor 680uF 63V +/-20% 105C 5000Hrs Panasonic EEVFK1J681M
WVZ WVZ1C472M180165TR 18*16.5mm 16V Chip Aluminum Electrolytic Capacitor 4700uF 16V +/-20% 105C 5000Hrs Panasonic EEVFK1C472V
WVZ WVZ1H102M180165TR 18*16.5mm 50V Chip Aluminum Electrolytic Capacitor 1000uF 50V +/-20% 105C 5000Hrs Panasonic EEVFK1H102M
WVZ WVZ2A151M125160TR 12.5*16mm 100V Chip Aluminum Electrolytic Capacitor 150uF 100V +/-20% 105C 5000Hrs Panasonic EEVFK2A151M
WVZ WVZ1V331M100105TR 10*10.5mm 35V Chip Aluminum Electrolytic Capacitor 330uF 35V +/-20% 105C 5000Hrs Panasonic EEEFK1V331P
WVZ WVZ1C101M063058TR 6.3*5.8mm 16V Chip Aluminum Electrolytic Capacitor 100uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C101P
WVZ WVZ1H100M063058TR 6.3*5.8mm 50V Chip Aluminum Electrolytic Capacitor 10uF 50V +/-20% 105C 5000Hrs Panasonic EEEFK1H100P
WVZ WVZ1C101M063058TR 6.3*5.8mm 16V Chip Aluminum Electrolytic Capacitor 100uF 16V +/-20% 105C 5000Hrs Panasonic EEEFK1C101P
WVZ WVZ0J470M050058TR 5*5.8mm 6.3V Chip Aluminum Electrolytic Capacitor 47uF 6.3V +/-20% 105C 5000Hrs Panasonic EEEFK0J470R
