WEET WSY X1 Y1 CD 400VAC and Y2 AC CE 300VAC Safety Standard Recognized Capacitors

PDF Download

Features

WEET WSY X1 Y1 CD 400VAC and Y2 AC CE 300VAC Safety Standard Recognized Capacitors
Ideal for across the line applications, from 7.5mm to10mm lead spacing, high reliability, and kinked or straight lead configurations.
Compact size,Cost effective product,Safety standards recognized


Detailed Specifications

Operating Temperature: -25°C~ +85°C
Capacitance Range: 10pF TO 10000pF
Capacitance Tolerance: ±10%, ±20%, +80-20%
Rated Voltage: AC 125V, 250V, 300V, 400V
Sub-class of safety performance: CD:X1Y1;CE:X1Y2
Temperature Coefficient: 2B(Y5P)±10%、2E(Y5U)+22%~-56%、2F(Y5V)+22%~-82%
Dissipation Factor (tan δ): 2B: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Insulation Resistance at 20℃: 2E/2F: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Dielectric Strength: 10000MΩat 500VDC for 1 minute.
1500V AC for 60 seconds. (250V AC)
4000V AC for 60 seconds. (400V AC)

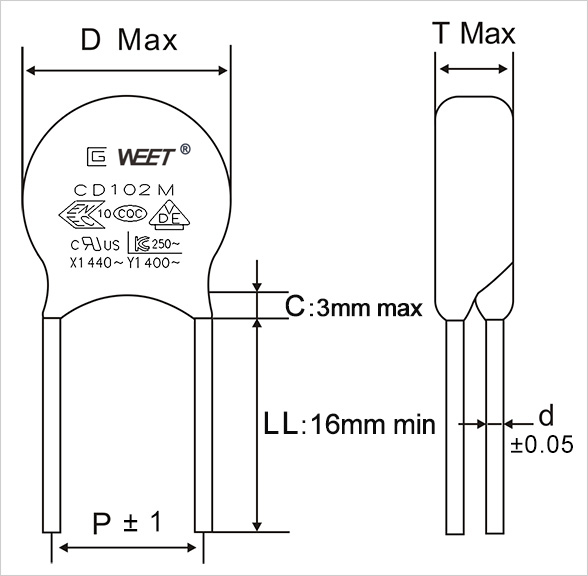

Product Drawing

WEET-WSY-Drawing

Main Applications

Line disturbances suppression, Motors and motor controls, Relays, Switching power supplies, Inverters, Line-to-line (Class X) filtering, Line-to-ground (Class Y) filtering, Antenna coupling, Primary and secondary coupling, Network and security protection, audio visual product,, Home Appliance, new energy, Industry automation, LED
