WEET WCA Radial Type 6KV 10KV 15KVDC High Voltage Disc Ceramic Capacitors

PDF Download

Features

WEET WCA Radial Type 6KV 10KV 15KVDC High Voltage Disc Ceramic Capacitors
Rated Working Voltage 1KV ,2KV, 3KV, 6KV, 8KV, 12KV,15KV DC.
Use for coupling, and by-pass circuit there are a stable and high reliability products.

Cut leads, Bulk, Ammo Tape Package,Long leads are available.


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature： -25°C~ +85°C
Rated Voltage： 1KV ~ 15KV DC
Capacitance Range： 100pF – 10,000pF
Test Voltage： UR≤500V, U=2.5UR；
UR>500V≤6KV, U=1.5UR+500V；
UR>6KV≤15KV, U=1.5UR

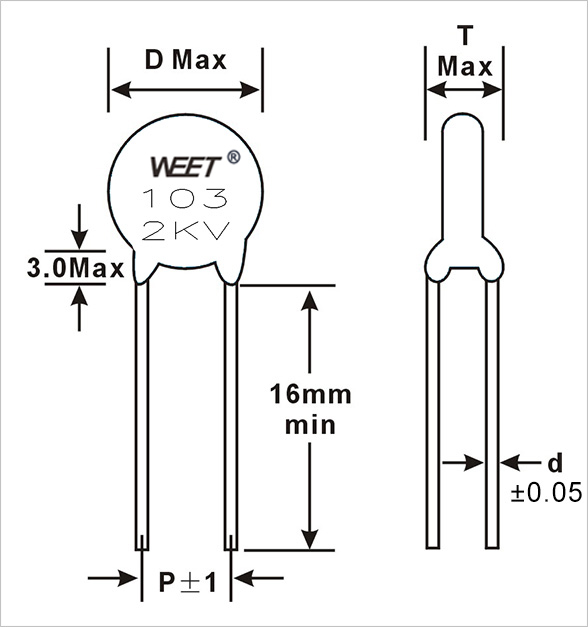

Product Drawing

WEET-WCA-Drawing

Main Applications

• DC-DC converters, Voltage multipliers.
• Radio and TV receiver, Modems, Interfaces, TV and monitors.
• Other electrical appliances where high voltage is present.
• High voltage power supplies, HV power supplies.
• Electrostatic coating, Arc spray and sputtering, Electrostatic cleaning power supplies, Ion generator power sources.
• High voltage power supplies for x-ray sources and pulsed lasers: Baggage scanner, Medical x-ray, Industrial laser.

Cross Reference

WCA Radial High Voltage Ceramic Disc Capacitor Cross to KEMET CGP Sereis, TDK CK45, Vishay HAZ, HAE, HAX 1 kVDC, HBZ, HBE, HBX 2 kVDC, HCZ, HCE, HCX 3 kVDC, HDE 4 kVDC, HEE 5 kVDC, HFZ, HFE 6 kVDC

Type Capacitance Cap. Code Capacitance Voltage Tolerance Temperature D max MM T Max MM P±1.0 MM WEET PN Cross Brand Cross PN
WCA 100K 100 10pF 1KV ±10% UJ 6.5 3 5 WCA3AK100BJ065000B KEMET CGP5C100KDUDAA7301
WCA 150K 150 15pF 1KV ±10% UJ 6.5 3 5 WCA3AK150BJ065000B KEMET CGP5C150KDUDAA7301
WCA 220K 220 22pF 1KV ±10% UJ 6.5 3 5 WCA3AK220BJ065000B KEMET CGP5C220KDUDAA7301
WCA 330K 330 33pF 1KV ±10% UJ 6.5 3 5 WCA3AK330BJ065000B KEMET CGP5C330KDUDAA7301
WCA 470K 470 47pF 1KV ±10% SL 7.5 3 5 WCA3AK470BS075000B KEMET CGP5C470KDSDAA7301
WCA 680K 680 68pF 1KV ±10% SL 7.5 3 5 WCA3AK680BS075000B KEMET CGP5C680KDSDAA7301
WCA 820K 820 82pF 1KV ±10% SL 7.5 3 5 WCA3AK820BS075000B KEMET CGP5C820KDSDAA7301
WCA 101K 101 100pF 1KV ±10% SL 6.5 3 5 WCA3AK101BS065000B KEMET CGP5C101KDSDAA7301
WCA 151K 151 150pF 1KV ±10% SL 7.5 3 5 WCA3AK151BS075000B KEMET CGP5C151KDSDAA7301
WCA 221K 221 220pF 1KV ±10% Y5P 6.5 3 5 WCA3AK221BB065000B KEMET CGP5C221KDYDAA7301
WCA 331K 331 330pF 1KV ±10% Y5P 6.5 3 5 WCA3AK331BB065000B KEMET CGP5C331KDYDAA7301
WCA 471K 471 470pF 1KV ±10% Y5P 6.5 3 5 WCA3AK471BB065000B KEMET CGP5C471KDYDAA7301
WCA 561K 561 560pF 1KV ±10% Y5P 6.5 3 5 WCA3AK561BB065000B KEMET CGP5C561KDYDAA7301
WCA 681K 681 680pF 1KV ±10% Y5P 6.5 3 5 WCA3AK681BB065000B KEMET CGP5C681KDYDAA7301
WCA 821K 821 820pF 1KV ±10% Y5P 6.5 3 5 WCA3AK821BB065000B KEMET CGP5C821KDYDAA7301
WCA 102K 102 1000pF 1KV ±10% Y5P 6.5 3 5 WCA3AK102BB065000B KEMET CGP5C102KDYDAA7301
WCA 122K 122 1200pF 1KV ±10% Y5P 8.5 3 5 WCA3AK122BB085000B KEMET CGP5C122KDYDAA7301
WCA 152K 152 1500pF 1KV ±10% Y5P 8.5 3 5 WCA3AK152BB085000B KEMET CGP5C152KDYDAA7301
WCA 222K 222 2200pF 1KV ±10% Y5P 9.5 3 5 WCA3AK222BB095000B KEMET CGP5C222KDYDAA7301
WCA 272K 272 2700pF 1KV ±10% Y5P 11.5 3 5 WCA3AK272BB115000B KEMET CGP5C273KDYDAA7301
WCA 332K 332 3300pF 1KV ±10% Y5P 11.5 3 5 WCA3AK332BB115000B KEMET CGP5C332KDYDAA7301
WCA 392K 392 3900pF 1KV ±10% Y5P 13 3 5 WCA3AK392BB130000B KEMET CGP5C392KDYDAA7301
WCA 472K 472 4700pF 1KV ±10% Y5P 13 3 5 WCA3AK472BB130000B KEMET CGP5C472KDYDAA7301
WCA 152M 152 1500pF 1KV ±20% Y5U 7.5 3 5 WCA3AM152BE075000B KEMET CGP5C152MDWDAA7301
WCA 222M 222 2200pF 1KV ±20% Y5U 7.5 3 5 WCA3AM222BE075000B KEMET CGP5C222MDWDAA7301
WCA 332M 332 3300pF 1KV ±20% Y5U 8.5 3 5 WCA3AM332BE085000B KEMET CGP5C332MDWDAA7301
WCA 472M 472 4700pF 1KV ±20% Y5U 9.5 3 5 WCA3AM472BE095000B KEMET CGP5C472MDWDAA7301
WCA 103M 103 10000pF 1KV ±20% Y5U 12 3 5 WCA3AM103BE120000B KEMET CGP5C103MDWDAA7301
WCA 152M 152 1500pF 1KV ±20% Y5V 6.5 3 5 WCA3AM152BF065000B KEMET CGP5C152MDVDAA7301
WCA 222M 222 2200pF 1KV ±20% Y5V 6.5 3 5 WCA3AM222BF065000B KEMET CGP5C222MDVDAA7301
WCA 332M 332 3300pF 1KV ±20% Y5V 7.5 3 5 WCA3AM332BF075000B KEMET CGP5C332MDVDAA7301
WCA 472M 472 4700pF 1KV ±20% Y5V 7.5 3 5 WCA3AM472BF075000B KEMET CGP5C472MDVDAA7301
WCA 103M 103 10000pF 1KV ±20% Y5V 9.5 3 5 WCA3AM103BF095000B KEMET CGP5C103MDVDAA7301
WCA 223M 223 22000pF 1KV ±20% Y5V 14 3.5 5 WCA3AM223BF140000B KEMET CGP5C223MDVDAA7301
WCA 223M 223 22000pF 1KV ±20% Y5V 14 3.5 7.5 WCA3AM223CF140000B KEMET CGP7C223MDVDAA7301
WCA 100K 100 10pF 2KV ±10% UJ 6.5 3.5 5 WCA3DK100BJ065000B KEMET CGP5C100KGUDAA7301
WCA 150K 150 15pF 2KV ±10% UJ 6.5 3.5 5 WCA3DK150BJ065000B KEMET CGP5C150KGUDAA7301
WCA 270K 270 27pF 2KV ±10% SL 6.5 3.5 5 WCA3DK270BS065000B KEMET CGP5C270KGSDAA7301
WCA 470K 470 47pF 2KV ±10% SL 6.5 3.5 5 WCA3DK470BS065000B KEMET CGP5C470KGSDAA7301
WCA 560K 560 56pF 2KV ±10% SL 6.5 3.5 5 WCA3DK560BS065000B KEMET CGP5C560KGSDAA7301
WCA 680K 680 68pF 2KV ±10% SL 6.5 3.5 5 WCA3DK680BS065000B KEMET CGP5C680KGSDAA7301
WCA 820K 820 82pF 2KV ±10% SL 7.5 3.5 5 WCA3DK820BS075000B KEMET CGP5C820KGSDAA7301
WCA 101K 101 100pF 2KV ±10% Y5P 6.5 3.5 5 WCA3DK101BB065000B KEMET CGP5C101KGYDAA7301
WCA 151K 151 150pF 2KV ±10% Y5P 6.5 3.5 5 WCA3DK151BB065000B KEMET CGP5C151KGYDAA7301
WCA 221K 221 220pF 2KV ±10% Y5P 6.5 3.5 5 WCA3DK221BB065000B KEMET CGP5C221KGYDAA7301
WCA 331K 331 330pF 2KV ±10% Y5P 6.5 3.5 5 WCA3DK331BB065000B KEMET CGP5C331KGYDAA7301
WCA 471K 471 470pF 2KV ±10% Y5P 6.5 3.5 5 WCA3DK471BB065000B KEMET CGP5C471KGYDAA7301
WCA 561K 561 560pF 2KV ±10% Y5P 7.5 3.5 5 WCA3DK561BB075000B KEMET CGP5C561KGYDAA7301
WCA 681K 681 680pF 2KV ±10% Y5P 7.5 3.5 5 WCA3DK681BB075000B KEMET CGP5C681KGYDAA7301
WCA 821K 821 820pF 2KV ±10% Y5P 7.5 3.5 5 WCA3DK821BB075000B KEMET CGP5C821KGYDAA7301
WCA 102K 102 1000pF 2KV ±10% Y5P 8 3.5 5 WCA3DK102BB080000B KEMET CGP5C102KGYDAA7301
WCA 222K 222 2200pF 2KV ±10% Y5P 12 3.5 5 WCA3DK222BB120000B KEMET CGP5C222KGYDAA7301
WCA 272K 272 2700pF 2KV ±10% Y5P 13 3.5 5 WCA3DK272BB130000B KEMET CGP5C272KGYDAA7301
WCA 272K 272 2700pF 2KV ±10% Y5P 13 3.5 7.5 WCA3DK272CB130000B KEMET CGP7C272KGYDAA7301
WCA 102M 102 1000pF 2KV ±20% Y5U 6.5 3.5 5 WCA3DM102BE065000B KEMET CGP5C102MGWDAA7301
WCA 222M 222 2200pF 2KV ±20% Y5U 8.5 3.5 5 WCA3DM222BE085000B KEMET CGP5C222MGWDAA7301
WCA 332M 332 3300pF 2KV ±20% Y5U 9.5 3.5 5 WCA3DM332BE095000B KEMET CGP5C332MGWDAA7301
WCA 472M 472 4700pF 2KV ±20% Y5U 10.5 3.5 5 WCA3DM472BE105000B KEMET CGP5C472MGWDAA7301
WCA 103M 103 10000pF 2KV ±20% Y5U 15 3.5 5 WCA3DM103BE150000B KEMET CGP5C103MGWDAA7301
WCA 103M 103 10000pF 2KV ±20% Y5U 15 3.5 7.5 WCA3DM103CE150000B KEMET CGP7C103MGWDAA7301
WCA 152M 152 1500pF 2KV ±20% Y5V 6.5 3.5 5 WCA3DM152BF065000B KEMET CGP5C152MGVDAA7301
WCA 222M 222 2200pF 2KV ±20% Y5V 6.5 3.5 5 WCA3DM222BF065000B KEMET CGP5C222MGVDAA7301
WCA 332M 332 3300pF 2KV ±20% Y5V 7.5 3.5 5 WCA3DM332BF075000B KEMET CGP5C332MGVDAA7301
WCA 472M 472 4700pF 2KV ±20% Y5V 8.5 3.5 5 WCA3DM472BF085000B KEMET CGP5C472MGVDAA7301
WCA 682M 682 6800pF 2KV ±20% Y5V 12 3.5 5 WCA3DM682BF120000B KEMET CGP5C682MGVDAA7301
WCA 103M 103 10000pF 2KV ±20% Y5V 12 3.5 5 WCA3DM103BF120000B KEMET CGP5C103MGVDAA7301
WCA 103M 103 10000pF 2KV ±20% Y5V 12 3.5 7.5 WCA3DM103CF120000B KEMET CGP7C103MGVDAA7301
WCA 180K 180 18pF 3KV ±10% SL 6.5 4 7.5 WCA3FK180CS065000B KEMET CGP7C180KHSDAA7301
WCA 220K 220 22pF 3KV ±10% SL 6.5 4 7.5 WCA3FK220CS065000B KEMET CGP7C220KHSDAA7301
WCA 270K 270 27pF 3KV ±10% SL 6.5 4 7.5 WCA3FK270CS065000B KEMET CGP7C270KHSDAA7301
WCA 330K 330 33pF 3KV ±10% SL 6.5 4 7.5 WCA3FK330CS065000B KEMET CGP7C330KHSDAA7301
WCA 470K 470 47pF 3KV ±10% SL 6.5 4 7.5 WCA3FK470CS065000B KEMET CGP7C470KHSDAA7301
WCA 680K 680 68pF 3KV ±10% SL 7.5 4 7.5 WCA3FK680CS075000B KEMET CGP7C680KHSDAA7301
WCA 101K 101 100pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK101CB065000B KEMET CGP7C101KHYDAA7301
WCA 121K 121 120pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK121CB065000B KEMET CGP7C121KHYDAA7301
WCA 151K 151 150pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK151CB065000B KEMET CGP7C151KHYDAA7301
WCA 221K 221 220pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK221CB065000B KEMET CGP7C221KHYDAA7301
WCA 331K 331 330pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK331CB065000B KEMET CGP7C331KHYDAA7301
WCA 471K 471 470pF 3KV ±10% Y5P 6.5 4 7.5 WCA3FK471CB065000B KEMET CGP7C471KHYDAA7301
WCA 681K 681 680pF 3KV ±10% Y5P 7.5 4 7.5 WCA3FK681CB075000B KEMET CGP7C681KHYDAA7301
WCA 102K 102 1000pF 3KV ±10% Y5P 9 4 7.5 WCA3FK102CB090000B KEMET CGP7C102KHYDAA7301
WCA 222K 222 2200pF 3KV ±10% Y5P 13 4 7.5 WCA3FK222CB130000B KEMET CGP7C222KHYDAA7301
WCA 222K 222 2200pF 3KV ±10% Y5P 13 4 10 WCA3FK222DB130000B KEMET CGP1C222KHYDAA7301
WCA 272K 272 2700pF 3KV ±10% Y5P 15 4 7.5 WCA3FK272CB150000B KEMET CGP7C272KHYDAA7301
WCA 272K 272 2700pF 3KV ±10% Y5P 15 4 10 WCA3FK272DB150000B KEMET CGP1C272KHYDAA7301
WCA 332K 332 3300pF 3KV ±10% Y5P 15 4 7.5 WCA3FK332CB150000B KEMET CGP7C332KHYDAA7301
WCA 332K 332 3300pF 3KV ±10% Y5P 15 4 10 WCA3FK332DB150000B KEMET CGP1C332KHYDAA7301
WCA 821K 821 820pF 3KV ±10% Y5U 9.5 4 7.5 WCA3FK821CE095000B KEMET CGP7C821KHWDAA7301
WCA 102K 102 1000pF 3KV ±10% Y5U 9.5 4 7.5 WCA3FK102CE095000B KEMET CGP7C102KHWDAA7301
WCA 122M 122 1200pF 3KV ±20% Y5U 7.5 4 7.5 WCA3FM122CE075000B KEMET CGP7C122MHWDAA7301
WCA 152M 152 1500pF 3KV ±20% Y5U 8.5 4 7.5 WCA3FM152CE085000B KEMET CGP7C152MHWDAA7301
WCA 222M 222 2200pF 3KV ±20% Y5U 8.5 4 7.5 WCA3FM222CE085000B KEMET CGP7C222MHWDAA7301
WCA 272M 272 2700pF 3KV ±20% Y5U 9.5 4 7.5 WCA3FM272CE095000B KEMET CGP7C272MHWDAA7301
WCA 332M 332 3300pF 3KV ±20% Y5U 10.5 4 7.5 WCA3FM332CE105000B KEMET CGP7C332MHWDAA7301
WCA 472M 472 4700pF 3KV ±20% Y5U 12 4 7.5 WCA3FM472CE120000B KEMET CGP7C472MHWDAA7301
WCA 102M 102 1000pF 3KV ±20% Y5V 6.5 4 7.5 WCA3FM102CF065000B KEMET CGP7C102MHVDAA7301
WCA 222M 222 2200pF 3KV ±20% Y5V 7.5 4 7.5 WCA3FM222CF075000B KEMET CGP7C222MHVDAA7301
WCA 272M 272 2700pF 3KV ±20% Y5V 7.5 4 7.5 WCA3FM272CF075000B KEMET CGP7C272MHVDAA7301
WCA 332M 332 3300pF 3KV ±20% Y5V 8.5 4 7.5 WCA3FM332CF085000B KEMET CGP7C332MHVDAA7301
WCA 472M 472 4700pF 3KV ±20% Y5V 9.5 4 7.5 WCA3FM472CF095000B KEMET CGP7C472MHVDAA7301
WCA 682M 682 6800pF 3KV ±20% Y5V 14 4 7.5 WCA3FM682CF140000B KEMET CGP7C682MHVDAA7301
WCA 103M 103 10000pF 3KV ±20% Y5V 14 4 7.5 WCA3FM103CF140000B KEMET CGP7C103MHVDAA7301
WCA 103M 103 10000pF 3KV ±20% Y5V 14 4 10 WCA3FM103DF140000B KEMET CGP1C103MHVDAA7301
WCA 101K 101 100pF 4KV ±10% Y5P 6.5 4 7.5 WCA3GK101CB065000B KEMET CGP7C101KUYDAA7301
WCA 221K 221 220pF 4KV ±10% Y5P 6.5 4 7.5 WCA3GK221CB065000B KEMET CGP7C221KUYDAA7301
WCA 331K 331 330pF 4KV ±10% Y5P 6.5 4 7.5 WCA3GK331CB065000B KEMET CGP7C331KUYDAA7301
WCA 471K 471 470pF 4KV ±10% Y5P 7.5 4 7.5 WCA3GK471CB075000B KEMET CGP7C471KUYDAA7301
WCA 681K 681 680pF 4KV ±10% Y5P 8 4 7.5 WCA3GK681CB080000B KEMET CGP7C681KUYDAA7301
WCA 102K 102 1000pF 4KV ±10% Y5P 10.5 4 7.5 WCA3GK102CB105000B KEMET CGP7C102KUYDAA7301
WCA 471K 471 470pF 4KV ±10% Y5U 6.5 4 7.5 WCA3GK471CE065000B KEMET CGP7C471KUWDAA7301
WCA 681K 681 680pF 4KV ±10% Y5U 6.5 4 7.5 WCA3GK681CE065000B KEMET CGP7C681KUWDAA7301
WCA 102M 102 1000pF 4KV ±20% Y5U 7.5 4 7.5 WCA3GM102CE075000B KEMET CGP7C102KUWDAA7301
WCA 152M 152 1500pF 4KV ±20% Y5U 8.5 4 7.5 WCA3GM152CE085000B KEMET CGP7C152KUWDAA7301
WCA 222M 222 2200pF 4KV ±20% Y5U 8.5 4 7.5 WCA3GM222CE085000B KEMET CGP7C222KUWDAA7301
WCA 102M 102 1000pF 4KV ±20% Y5V 6.5 4 7.5 WCA3GM102CF065000B KEMET CGP7C102KUVDAA7301
WCA 152M 152 1500pF 4KV ±20% Y5V 7 4 7.5 WCA3GM152CF070000B KEMET CGP7C152KUVDAA7301
WCA 222M 222 2200pF 4KV ±20% Y5V 7.5 4 7.5 WCA3GM222CF075000B KEMET CGP7C222KUVDAA7301
WCA 222M 222 2200pF 4KV ±20% Y5V 7.5 4 5 WCA3GM222CF050000B KEMET CGP5C222MUVDAA7301
WCA 332M 332 3300pF 4KV ±20% Y5V 8.5 4 7.5 WCA3GM332CF085000B KEMET CGP7C332KUVDAA7301
WCA 472M 472 4700pF 4KV ±20% Y5V 10 4 7.5 WCA3GM472CF100000B KEMET CGP7C472KUVDAA7301
WCA 682M 682 6800pF 4KV ±20% Y5V 13 4 7.5 WCA3GM682CF130000B KEMET CGP7C682KUVDAA7301
WCA 682M 682 6800pF 4KV ±20% Y5V 13 4 10 WCA3GM682DF130000B KEMET CGP1C682KUVDAA7301
WCA 103M 103 10000pF 4KV ±20% Y5V 15 4 7.5 WCA3GM103CF150000B KEMET CGP7C103KUVDAA7301
WCA 103M 103 10000pF 4KV ±20% Y5V 15 4 10 WCA3GM103DF150000B KEMET CGP1C103KUVDAA7301
WCA 101K 101 100pF 6KV ±10% Y5P 6.5 5 10 WCA3IK101DB065000B KEMET CGP1C101KKYDAA7301
WCA 221K 221 220pF 6KV ±10% Y5P 6.5 5 10 WCA3IK221DB065000B KEMET CGP1C221KKYDAA7301
WCA 331K 331 330pF 6KV ±10% Y5P 7.5 5 10 WCA3IK331DB075000B KEMET CGP1C331KKYDAA7301
WCA 471K 471 470pF 6KV ±10% Y5P 8.5 5 10 WCA3IK471DB085000B KEMET CGP1C471KKYDAA7301
WCA 681K 681 680pF 6KV ±10% Y5P 9.5 5 10 WCA3IK681DB095000B KEMET CGP1C681KKYDAA7301
WCA 102K 102 1000pF 6KV ±10% Y5P 12 5 10 WCA3IK102DB120000B KEMET CGP1C102KKYDAA7301
WCA 331K 331 330pF 6KV ±10% Y5U 6.5 5 10 WCA3IK331DE065000B KEMET CGP1C331KKWDAA7301
WCA 471K 471 470pF 6KV ±10% Y5U 6.5 5 10 WCA3IK471DE065000B KEMET CGP1C471KKWDAA7301
WCA 681K 681 680pF 6KV ±10% Y5U 7.5 5 10 WCA3IK681DE075000B KEMET CGP1C681KKWDAA7301
WCA 102M 102 1000pF 6KV ±20% Y5U 7.5 5 10 WCA3IM102DE075000B KEMET CGP1C102MKWDAA7301
WCA 152M 152 1500pF 6KV ±20% Y5U 9.5 5 10 WCA3IM152DE095000B KEMET CGP1C152MKWDAA7301
WCA 222M 222 2200pF 6KV ±20% Y5U 10 5 10 WCA3IM222DE100000B KEMET CGP1C222MKWDAA7301
WCA 332M 332 3300pF 6KV ±20% Y5U 12 5 10 WCA3IM332DE120000B KEMET CGP1C332MKWDAA7301
WCA 472M 472 4700pF 6KV ±20% Y5U 15 5 10 WCA3IM472DE150000B KEMET CGP1C472MKWDAA7301
WCA 102M 102 1000pF 6KV ±20% Y5V 6.5 5 10 WCA3IM102DF065000B KEMET CGP1C102MKVDAA7301
WCA 152M 152 1500pF 6KV ±20% Y5V 7.5 5 10 WCA3IM152DF075000B KEMET CGP1C152MKVDAA7301
WCA 222M 222 2200pF 6KV ±20% Y5V 8.5 5 10 WCA3IM222DF085000B KEMET CGP1C222MKVDAA7301
WCA 332M 332 3300pF 6KV ±20% Y5V 10.5 5 10 WCA3IM332DF105000B KEMET CGP1C332MKVDAA7301
WCA 472M 472 4700pF 6KV ±20% Y5V 12 5 10 WCA3IM472DF120000B KEMET CGP1C472MKVDAA7301

Related Products

Sitemap
Copyright © 2022 WEE Technology Company Limited. All rights reserved.
wx

ID:Wallis-Tao

×
