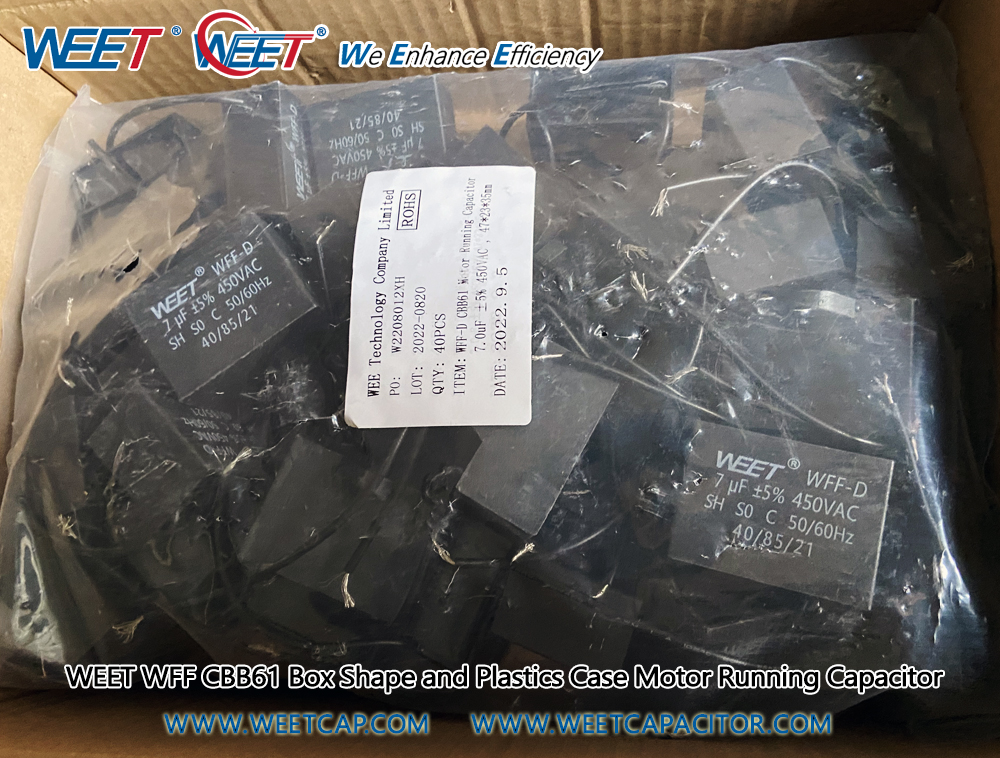

WEET WFF CBB61 Box Shape and Plastics Case Motor Running Capacitor

PDF Download

Features

WEET WFF CBB61 Box Shape and Plastics Case Motor Running Capacitor
Electrical apparatus use metallized film with precisely quality control.
High I.R. (insulation resistance) small size.High safety &high reliability.
Low D.F. (dissipation factor), lower temperature rise.Durability and characteristics of frequency, etc.


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature -40℃ ~ +85℃
Rated Voltage 250V, 450V AC
Withstand Voltage AC≥2UR 2S(lmax≤1.3 lnA)
Capacitance Range 1uF ~ 20uF
Capacitance Tolerance ±5%, ±10%, ±20%
Dissipation Factor ≤0.003 1KHz

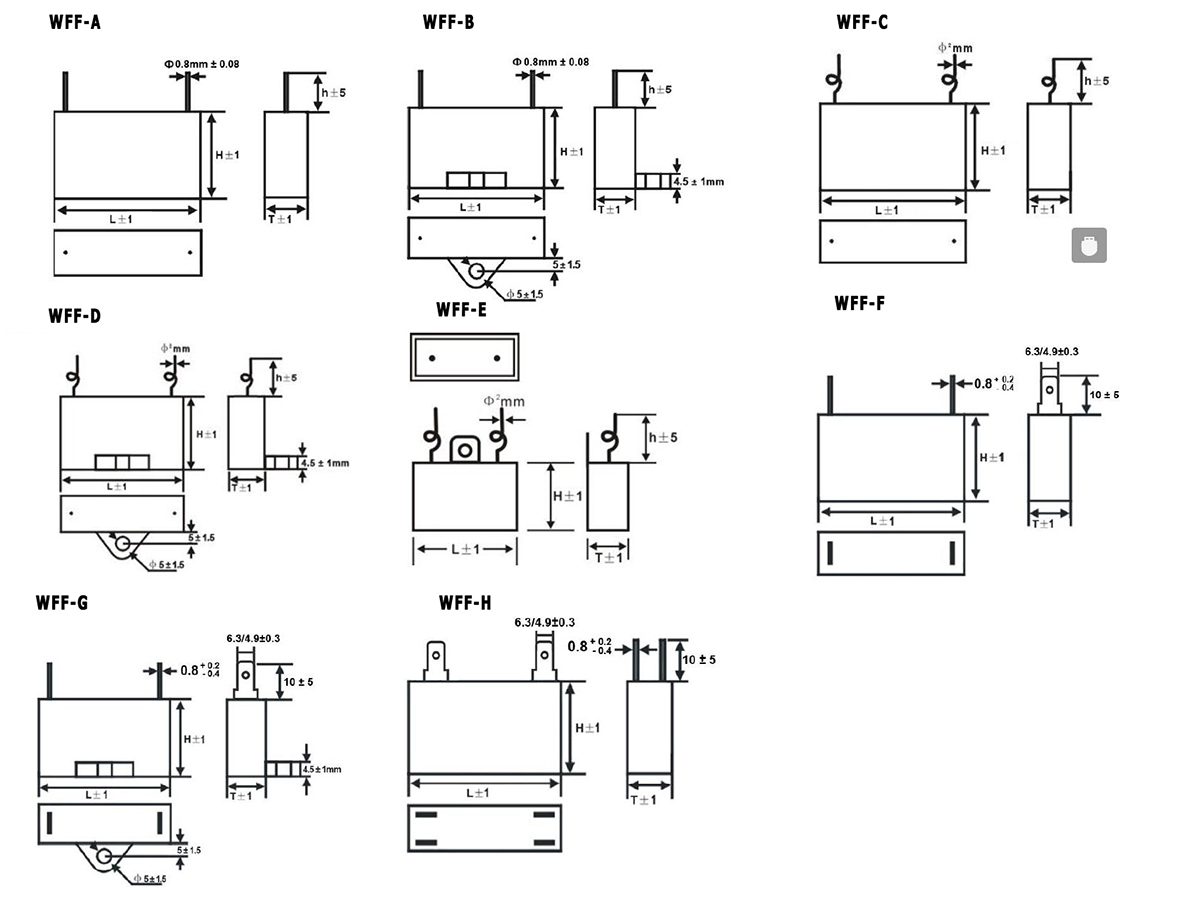

Product Drawing

WEET-WFF-Drawing

Main Applications

CBB61 capacitors have shown outstanding performance in the application of voltage reduction and speed regulation of electric fans, and are widely used in the speed control function of fans
In air conditioning systems, CBB61 capacitor is a common non-polar thin film capacitor widely used for starting and operating single-phase AC motors.

Its main function is to provide phase difference for the fan motor and compressor, helping the motor to start smoothly and maintain stable operation.
When the voltage passes through the capacitor, it can effectively adjust the current phase and avoid the motor from burning out due to difficulty in starting.
This type of capacitor typically has a withstand voltage of around 450V and a capacity range ranging from 1.2 μ F to 5 μ F, suitable for various brands and models of air conditioning outdoor units
