WEET WEK 2000H at 105C Audio Crossover Snap in Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WEK 2000H at 105C Audio Crossover Snap in Aluminum Electrolytic Capacitors
High ripple current, Smaller size, PCB Mounting
Load life of 2000 hours at 105℃
Audio Capacitors designed specially for ampiliers and speakers, with low loss angle, low leadage and low internal resistance, helping to improve audio quality.

Detailed Specifications

Operating Temperature: -40℃ ~ +105℃ (>160V: -25℃ ~ +105℃)
Rated Voltage: 16V - 500V.DC
Capacitance Range: 39uF - 47000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.01CV or 1.5mA whichever is smaller(at 20℃,after 5 minutes)

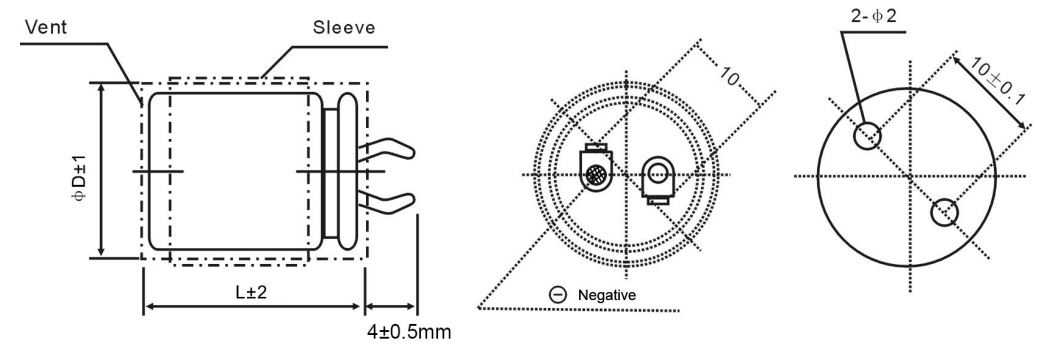

Product Drawing

Main Applications

Audio Capacitors designed specially for ampiliers and speakers,
