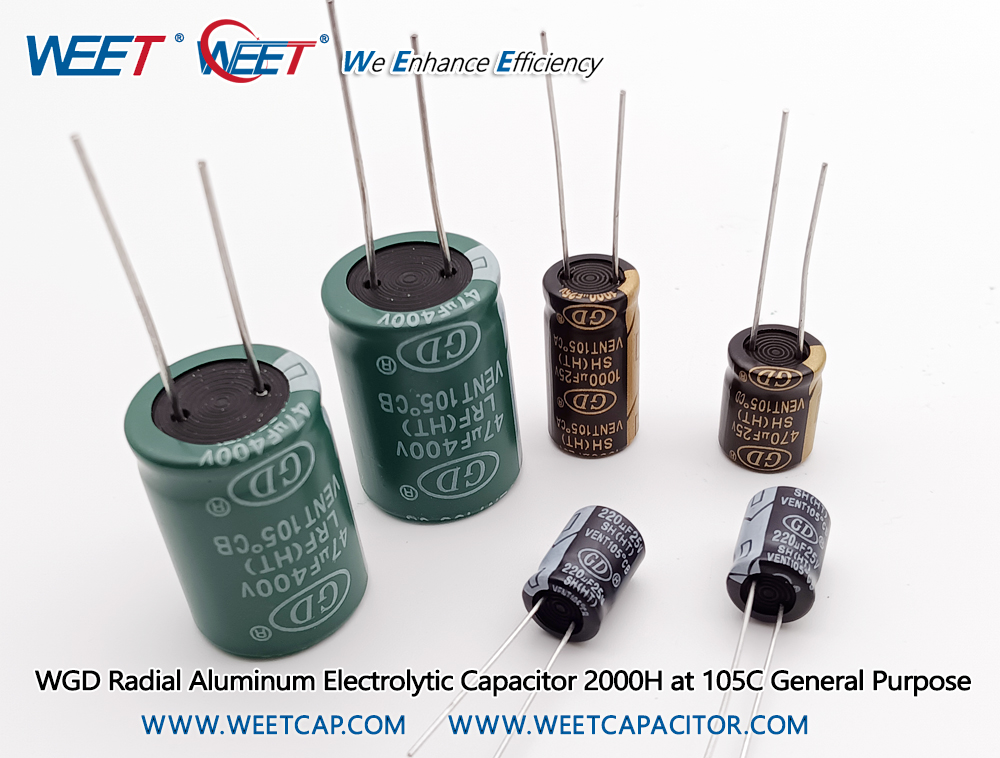

WEET WGD Radial Aluminum Electrolytic Capacitor 2000H at 105C General Purpose

PDF Download

Features

WEET WGD Radial Aluminum Electrolytic Capacitor 2000H at 105C General Purpose
Wide temperature range,105°C,Load life:2000-3000hours,
Small size,large capacity
Used in VCD、DVD、color-TV、air conditioning circuits etc.
Variety of packing: Bulk , Tape and Ammo in box

Detailed Specifications

Item Performance
Operating Temperature Range -40 to + 105℃ -25 to +105℃
Rated Working Voltage Range 6.3-63V.DC 100-450V.DC
Capacitance Tolerance 0.1-22000µF 0.1-1000µF
±20%(at+20,120HZ)
Capacitance Tolerance
Leakage Current I≤0.01CV or 3(µA)min I≤0.03CV or 20(µA)min

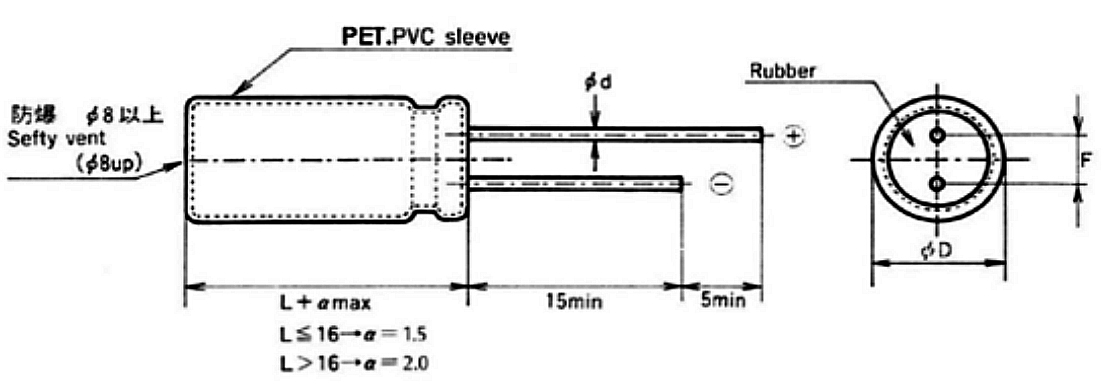

Product Drawing

Main Applications

Lead type radial electrolytic capacitors have reliable performance and a complete variety. Due to their small size and long service life, they are widely used in energy-saving lamps, digital televisions, set-top boxes, switch power supplies, chargers, displays, audio and other electronic devices.
