WEET WMX Small Size NP Aluminum Electrolytic Capacitors for Audio and Speaker System

PDF Download

Features

WEET WMX Small Size NP Aluminum Electrolytic Capacitors for Audio and Speaker System

Low Dissipation Factor, MAX 15% at 1KHz

Smaller size and Radial type for speaker applications

Specially produced for Cross-Over Networks with high fidelity audio system


Note 1:Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request.
Note 2:The sleeve (PET) color of the product differs from batch to batch, so there will be slight color difference. Thank you.

Detailed Specifications

Capacitance Tolerance ± 10%(K),or ±20%(M)at 1KHZ
Leakage Current (1) WMX-R,WMX-A : MAX. 0.03CV + 3μA  After 5 minutes application of rated working voltage
(2) WMX-S : MAX. 0.04CV + 3μA  After 5 minutes application of rated working voltage
Temp Range - 40℃ ~ + 105℃
Load Life After 1,000 hours application of rated voltage at 105 ± 2℃, capacitors meet the characteristics requirement listed as below
(a)  Capacitance change: Within ± 25% of initial
(b)  Tan δ:200% or less of initial specified
(c)  Leakage current  : Install specified value or less
MAX Dissipation Factor MAX 15% at 1KHz

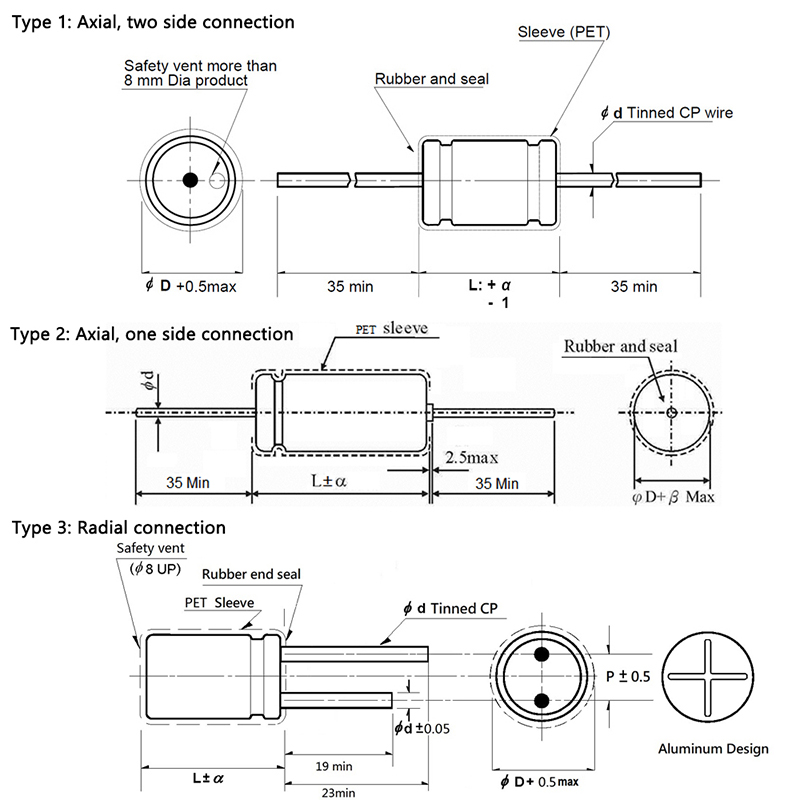

Product Drawing

Main Applications

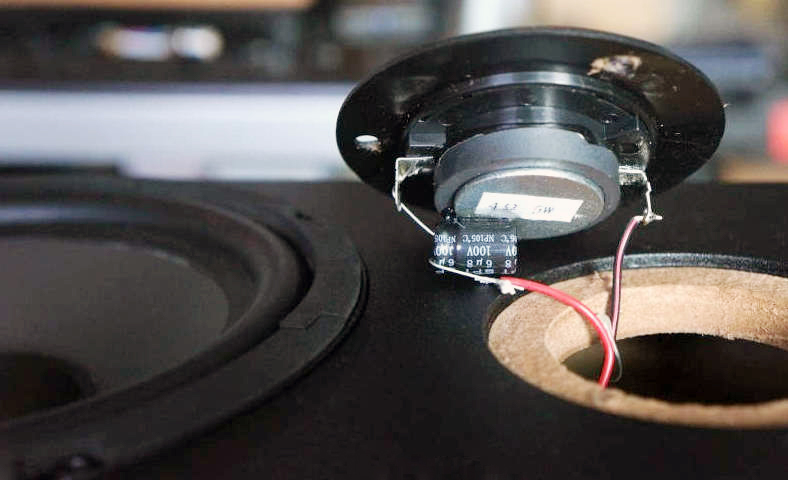

Smaller size and Radial type for speaker applications
