WEET AH Gold Aluminum Housed Wirewound Resistor

PDF Download

Features

WEET AH Gold Aluminum Housed Wirewound Resistor
High power rating , small size and ultra precision
Standard winding non-inductive winding types
High stability,strong construction
Suitable for vehicle
Wattage Range : 6 styles to choose ranging from 5 to 250 watts
Resistance Tolerance :±10%, ±5%, ±3%, ±2%, ±1%,±0.5%
Operating Temperature Range : -55℃ to +275℃
Dielectric Strength : AH-5,AH-10,AH-25:1000V; AH-50:1500V; AH-100,AH-250:2500V
Temperature Coefficient of Resistance Standard T.C. : ±30ppm/℃ = 10Ω and up,\

±50ppm/℃ = 1 to 9.99Ω, ±90ppm/℃ = below 1Ω

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Type Dimensions (mm) Resistance Range
L1±2 L2±1 L3±1 A±1 B±1 C±1 E±0.3 S±1 H±0.5 P±2
AH-5W 25 15 10 16.5 12.5 8.5 2 8 4 5 0.1Ω ~ 50K
AH-10W 32 29 14 20 15.5 10.5 2 10 5 6 0.1Ω ~ 100K
AH-25W 47 27 18 27 19 15 3.2 15.5 7 10 0.1Ω ~ 100K
AH-50W 70 50 39 29 21 15 3.2 15.5 7 10 0.1Ω ~ 100K
AH-80W, AH-100WS 102 66 35 47 37 28 4.5 25 12 5*18 0.1Ω ~ 100K
AH-100W 135 89 69 70 48 46 5 44.5 19 6*23 0.1Ω ~ 3K
AH-200W, AH-250W, AH-300W 155 114 98 77 64 53 5 55.5 25 6*21 0.1Ω ~ 3K

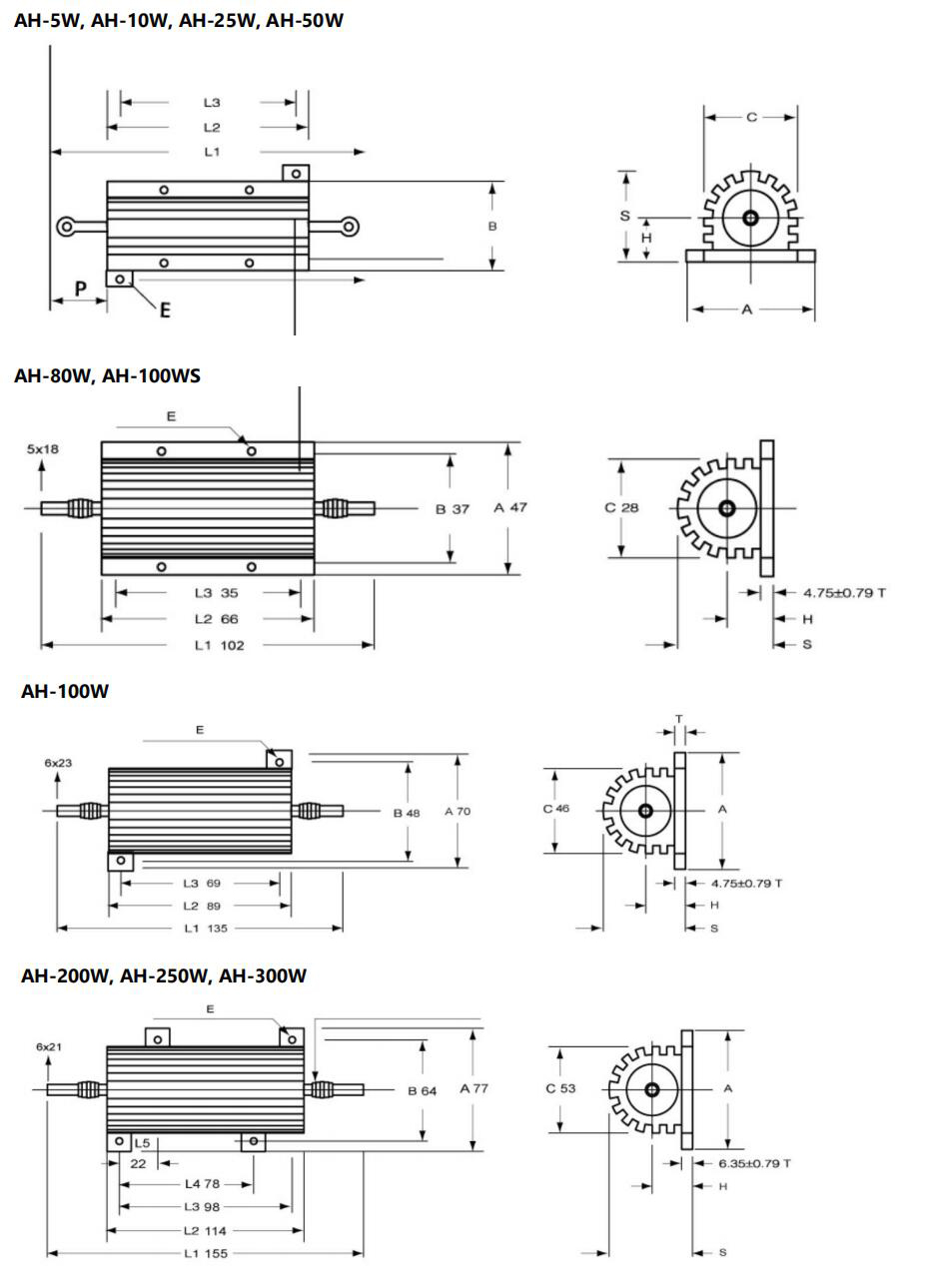

Product Drawing

Main Applications

The resistors we produce are widely applied in Automotive Industry, Power Supply Industry,LED Lighting, Home Appliances, Communication Equipment, electronic toys and other consumer goods,

Medical Equipment Industry, communication equipment, computers, automotive electronics, high-frequency and microwave circuits,automotive electronics, power circuits, converters, regulators and other fields
