WEET WFD CL21B MKT Box Type Metallized Polyester Film Capacitor

PDF Download

Features

WEET WFD CL21B MKT Box Type Metallized Polyester Film Capacitor
  • Non-inductive, plastic case and epoxy resin.
  • Box type provide the identical outer appearance.High reliability.
  • Cut leads, Bulk, Ammo Tape Package,Long leads are available.
Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature: -40°C~ +85°C
Rated Voltage: 63V, 100V, 160V, 250V, 400V, 630V.DC
Withstand Voltage: 1.6VR 5S
Capacitance Range: 0.001μF ~ 2.2μF
Capacitance Tolerance: ±5%, ±10%, ±20%
Dissipation Factor: ≤0.01 (at 1KHz)

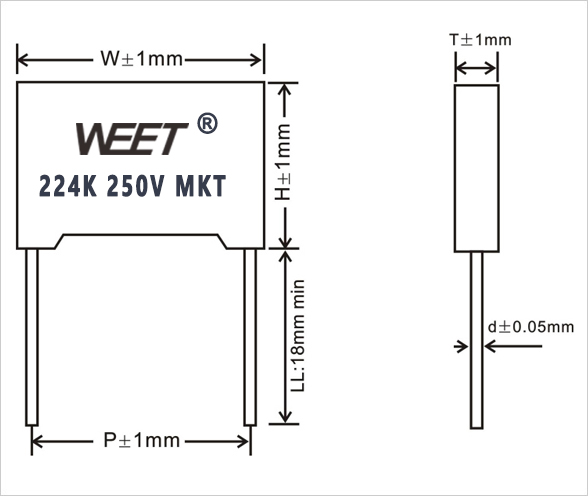

Product Drawing

WEET-WFD-Drawing

Main Applications

The function of CL21B capacitor is relatively limited, and it can only be used for DC and VHF level signal isolation, bypass, and coupling circuits.

It can also be used in filtering, noise reduction, and low pulsation circuits, as well as in resistive capacitive voltage reduction circuits.
