WEET WTP 063 065 0.1W Phenolic Consumer Trimming Potentiometer

PDF Download

Features

WEET WTP 063 065 0.1W Phenolic Consumer Trimming Potentiometer
Single turn Trimming Potentiometer.
Phenolic Trimming Potentiometer.
Cross slot rotor.
Tops adjust and side adjust available.

Detailed Specifications

Standard Resistance Range 100Ω - 2MΩ
Resistance Tolerance ±30%
Residual Resistance Max 5% of Nominal Resistance, But under 30Ω
Resistance Taper Linear (B)
Rated Power 0.1W
Operating Voltage 50V Max
Rotational Life Max ±5% change in resistance after 100 unloaded rotations
Load Life Max ±5% change in resistance after 3 hours loaded

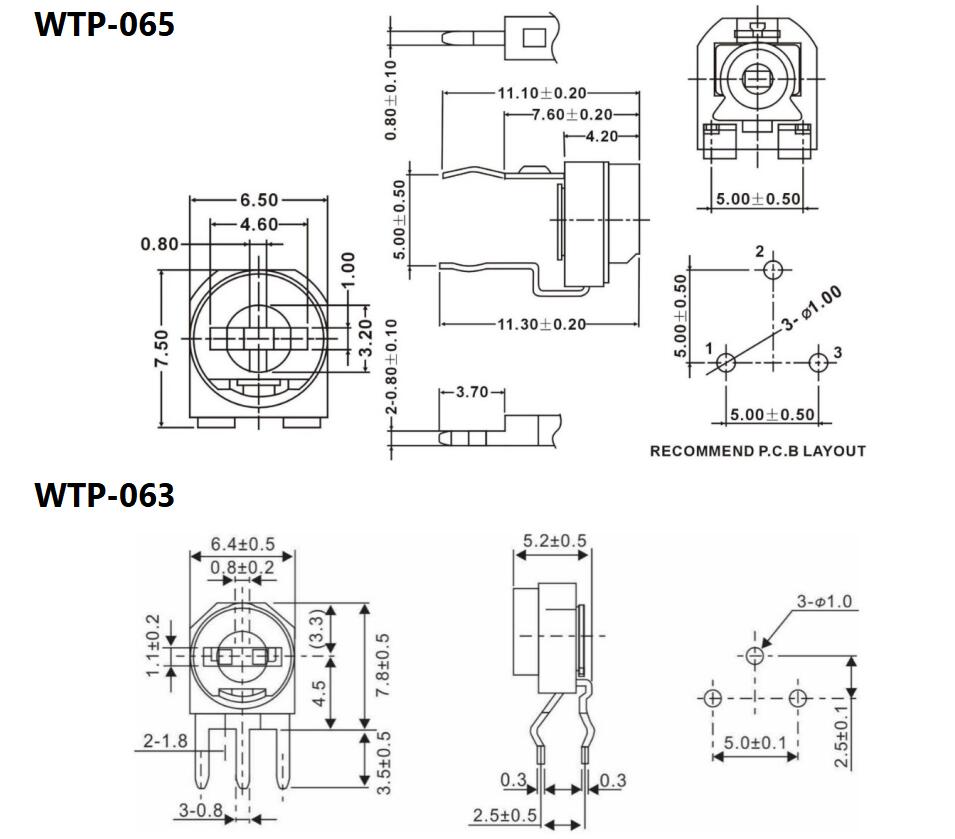

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations
