WEET WMQ CBB20H High Voltage Double Metallized Polypropylene Film Snubber Protection Capacitors

PDF Download

Features

WEET WMQ CBB20H High Voltage Double Metallized Polypropylene Film Snubber Protection Capacitors
Small size. low temperature raise, withstand high ripple current,and long life time.
High dV/dt, High pulse current, Low inductance, Self healing
Low ESR characteristics, excellent high frequency and high voltage capabilities.
Application:IGBT snubber, UPS, inverter, welding machine, power supply.

Detailed Specifications

Passive flammability IEC61070GB 17702.1
Operating temperature -40℃~+85℃
Capacitance range 0.1uF~4.7uF
Capacitance tolerance ±5%、±10% 1KHz
Rated voltage 1000、1200、1600、2000V.DC
Withstand Strike Current ability dv/dt>600v/us
Withstand voltage 1.6Un(60S)
Dissipation factor ≤0.0008 (at 10kHz)
Insulate the electric resistance IR ≥100 000MΩ,CN≤0.33uF
(20℃,100VDC,1min) IR ≥30000s  CN >0.33uF
Leads Diameter Tinned Pure Copper Wire

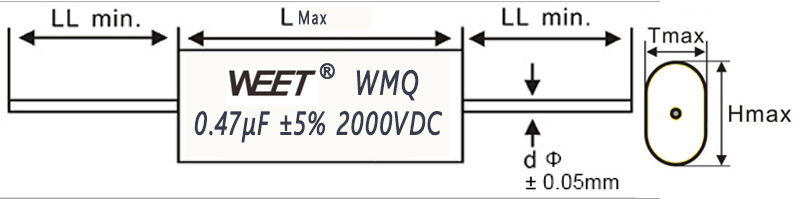

Product Drawing
