WEET WMN BP Axial Bi polar 120HZ Aluminum Electrolytic Capacitors For Audio and Speaker System

Features

Low Dissipation Factor, MAX 5% at 120Hz, Bi-Polarized，105℃ 1000 hours
Specially produced for Cross-Over Networks with high fidelity audio system
High-quality crossover non-polar aluminum electrolytic capacitors
Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Detailed Specifications

Operating Temperature：			-40℃~+105℃
Rated Voltage：			50V, 100V.DC
Leakage Current：			MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Capacitance Range：			47uF ~ 1000uF
Capacitance Tolerance：			±10%
Dissipation Factor：			MAX 5% at 120Hz (Other Dissipation Factor 3%, 4%, 5%, 6%, 7%, 8%, 9%, 12% are available on request)

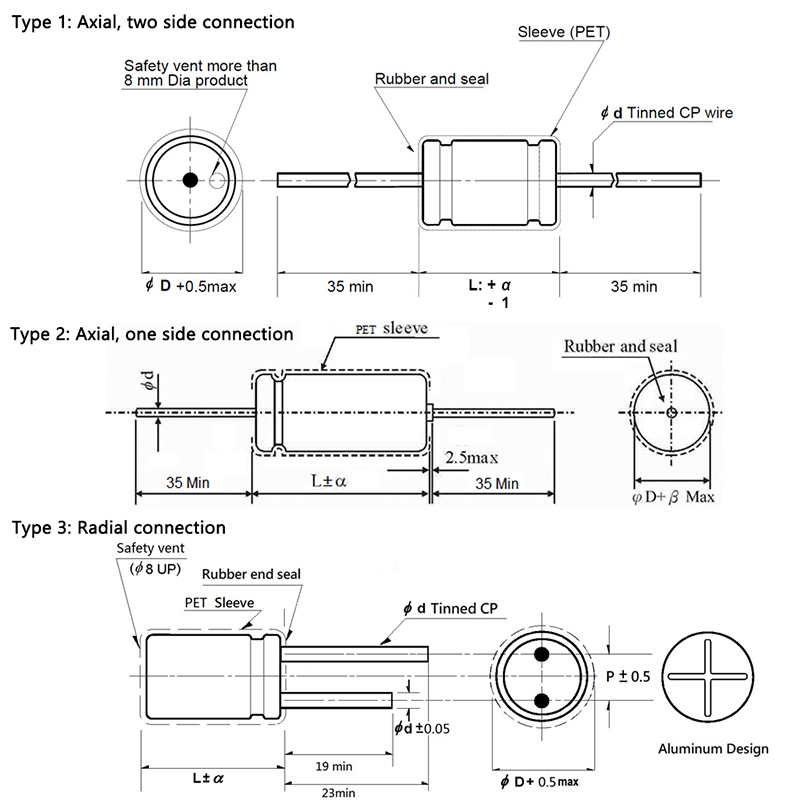

Product Drawing

Main Applications

Product mainly used: audio converters and dividers (partials), Audio amp, automotive electronics products, speaker.

Cross Reference

Popular Items cross reference to Visaton brand.

https://www.visaton.de/en/products/accessories/crossover-parts/electrolytic-capacitors

" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."

--- Comment by Stanislav Nadelyaev from Russia

WEET WMM 1000H 105°C, DF at Max 5% 1KHz BP Axial Ecap
15uF ±10% 50V OD:L: 13*27mm	82uF ±10% 50V OD:L: 16*34mm
22uF ±10% 50V OD:L: 13*27mm	100uF ±10% 50V OD:L: 16*34mm
33uF ±10% 50V OD:L: 13*31mm	150uF ±10% 50V OD:L: 16*43mm
47uF ±10% 50V OD:L: 13*31mm	220uF ±10% 50V OD:L: 18*44mm
68uF ±10% 50V OD:L: 16*34mm
WEET WMN 1000H 105°C, DF at Max 5% 120Hz BP Axial Ecap
330uF ±10% 50V OD:L: 18*44mm	470uF ±10% 50V OD:L: 22*45mm

No.	WMN 1000H 105°C, DF 10% 1KHz	Visaton PN	Visaton Article	WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1	330uF ±10% 50V OD:L: 18*44mm	5394	BIPOLAR CAPACITOR 330,0 µF	https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-330uF-50V-Cross-Visaton-Speaker-Driver-Capacitors.html
2	470uF ±10% 50V OD:L: 22*45mm	5396	BIPOLAR CAPACITOR 470,0 µF	https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-470uF-50V-1000H-105C-Low-DF-Ecap-Bipolar-Kondensator.html
3	680uF ±10% 50V OD:L: 22*45mm	/	/	https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-680uF-50V-63V-100V-Axial-Radial-Electrolytic-Capacitors.html
