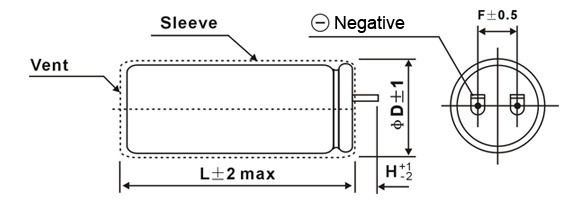

Item
|
Performance Characteristics
|
|
Operation Temperature Rage
|
- 40 ~ +85 ℃
|
- 25 ~ +85 ℃
|
|
Rated Working Voltage
|
10 ~ 100 VDC
|
160 ~ 450 VDC
|
|
Capacitance Range
|
47uF ~ 22000uF
|
|
Normal Capacitance Tolerance
|
±20% (120Hz, 20℃)
|
|
Leakage Current
|
I ≦3√CV or less after 5min, application of rated voltage.
|
|
C : Capacitance (µF) / V : Voltage (V)
|
|
Dissipation Factor (tanδ)
|
Rated Voltage
|
10 ~ 16
|
25
|
35
|
50
|
63 ~ 100
|
160 ~ 250
|
350 ~450
|
|
(120Hz 20℃)
|
tanδ(max.)
|
0.5
|
0.4
|
0.35
|
0.3
|
0.25
|
0.15
|
0.2
|
|
Low Temperature Characteristics
|
Impedance ratio at 120Hz
|
|
(120Hz)
|
Rated Voltage (V)
|
16 ~ 100
|
160 ~ 250
|
350 ~ 450
|
|
|
-25℃／+20℃
|
4
|
3
|
8
|
|
|
-40℃／+20℃
|
15
|
12
|
-
|
|
Load Life
|
After 2,000 hours application of rated voltage at +85℃, capacitors meet the characteristics requirements mentioned below.
|
|
|
Capacitance Change
|
Within 20% of initial value
|
|
|
tanδ
|
200% or less of initial specified value
|
|
|
Leakage Current
|
Initial specified value or less value
|
|
Shelf Life
|
After leaving Capacitors under no load at 85℃ for 500hours and applying voltage according to JIS C-5102 4-3, they meet the specified value for load life characteristics listed above.
|
