WEET WEG Lug Type Aluminum Electrolytic Capacitors For Photo Flash

PDF Download

Features

WEET WEG Lug Type Aluminum Electrolytic Capacitors For Photo Flash

Compliant to the RoHS directive.

High stability.

Compact and light weight.

For photo flash application

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Items Performance Characteristics
Operating Temperature Range(℃) - 20℃ ~ +55℃
Rated Voltage 330WV.DC 360WV.DC 400WV.DC 450WV.DC
Voltage Proof 350SV.DC 390SV.DC 430SV.DC 480SV.DC
Capacitance Tolerance(20℃,120Hz) -10% ~ +20% (20℃, 120Hz)
Dissipation Factor(20℃,120Hz) UR(V) 330 ~ 450, tan δ 0.15
Leakage Current I≤1 x C (μA) (20℃, after 5 minutes)
C=Nominal capacitance(μF), I= Leakage current (μA)

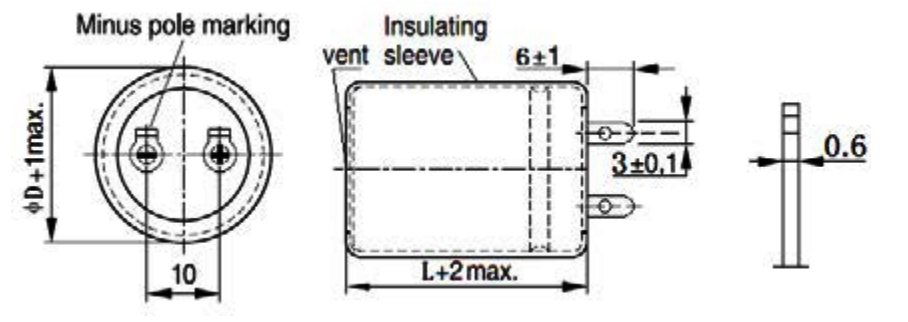

Product Drawing

WEET-WEG-Drawing

Main Applications

Aluminum electrolytic capacitors have two core functions in photo flash:
Charge storage: Through rapid charging and discharging characteristics, the stored electrical energy is released upon triggering, driving the instantaneous high-voltage discharge of flash lamps or strobe devices.  ‌
Instantaneous power support: In devices such as camera flashes and strobe lights, their low internal resistance and fast charging and discharging capabilities can meet the device's demand for instantaneous energy.  ‌
Traditional cameras/digital cameras: used to drive high-voltage discharge of flash tubes.  ‌
Strobe lighting fixtures: support flicker effects, such as dance lamps, photography fill lights, etc.  ‌
Electronic devices: They play a filtering and stabilizing role in electronic circuits, ensuring stable operation of the equipment.
