WEET WCC Axial 50VDC to 100VDC MONO Multilayer Monolithic Ceramic Capacitors

PDF Download

Features

WEET WCC Axial 50VDC to 100VDC MONO Multilayer Monolithic Ceramic Capacitors
Because of MLCC high frequency characteristics, it is also widely used in wireless communication products.
Through-hole Axial MLCC is small, light and thin, which is very suitable for portable electronic consumer goods. It is widely used in high frequency circuit and portable electronic products;
Under the condition of the same rated voltage and capacitance, the equivalent series resistance (ESR) of MLCC is small and the impedance is low in high frequency environment

Detailed Specifications

Operating Temperature: NPO (COG) X7R:-55℃~+125℃, Y5V (Z5U) -25℃~+85℃
Rated Voltage: DC 25V, 50V, 100V
Size Code: 0.15 Inches,0.17 Inches, 0.2 Inches
Capacitance Range: 1pF - 1µF
Capacitance Tolerance: ±5%, ±10%, ±20%,
Pitch Size: 5.08 mm, 7.5 mm, 10 mm,

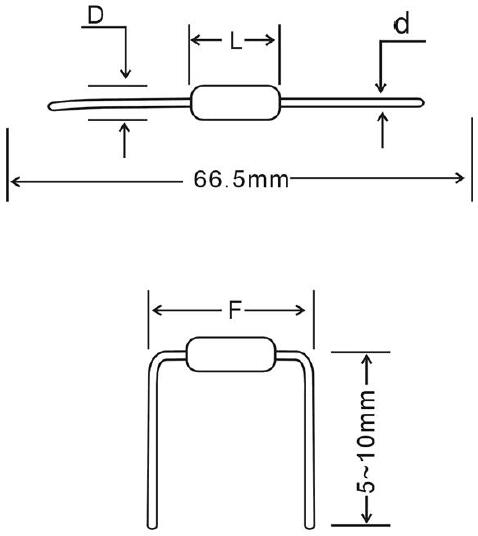

Product Drawing

WEET-WCC-Drawing

Main Applications

• Use in circuits requiring stable performance.
• Use as blocking、coupling、By-passing discriminating element.
• Suited for By-passing and coupling application such as store power and memory circuit.
