WEET WMG Superior 630V Aluminum Foil and Film Capacitors for Tweeter Bass Audio Applications

Features

WEET WMG 630V MusiCaps are constructed using separate layers of premium foil and polypropylene films, rather than the vapor deposited metallized film used by most other manufacturers. Film-plus-foil construction requires more costly materials and result in MusiCaps being approximately 100% larger than typical metallized-film capacitors, yet the benefits are immediately discernible.
Top of the range pure aluminum foil capacitor. Very Low Dielectric absorption factor. Very Low Dissipation factor, Very Low ESR, Very Low Inductance
A luxury capacitor designed especially for modern high-end tweeters and mid-range drivers
Aluminum foil spliced to polypropylene insulation film. (a layer of pure Aluminum foil and a layer of PP film).Separate layers of polypropylene film & conductive foil deliver superiors clarity of reproduction that metalized capacitors can not.

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Passive flammability	GB10191-88 IEC384-16
Operating temperature	-55℃～+85℃
Capacitance range	0.01~0.47uF
Capacitance tolerance	±3%、±5% 1KHz
Rated voltage	630V.DC
Withstand voltage	1.6VR 5S
Dissipation factor	≤0.0005 1KHz
Insulate the electric resistance	CR≤0.33μF, I.R≥15,000MΩ
Insulate the electric resistance	CR>0.33μF, I.R≥5,000S
Leads Diameter	0.8 Tinned Pure Copper Wire

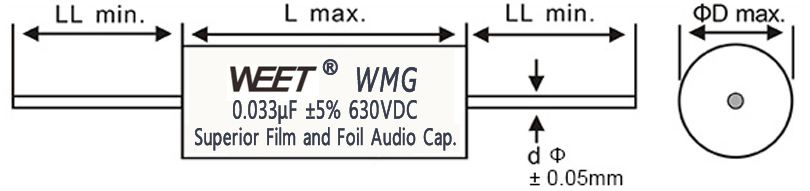

Product Drawing

Main Applications

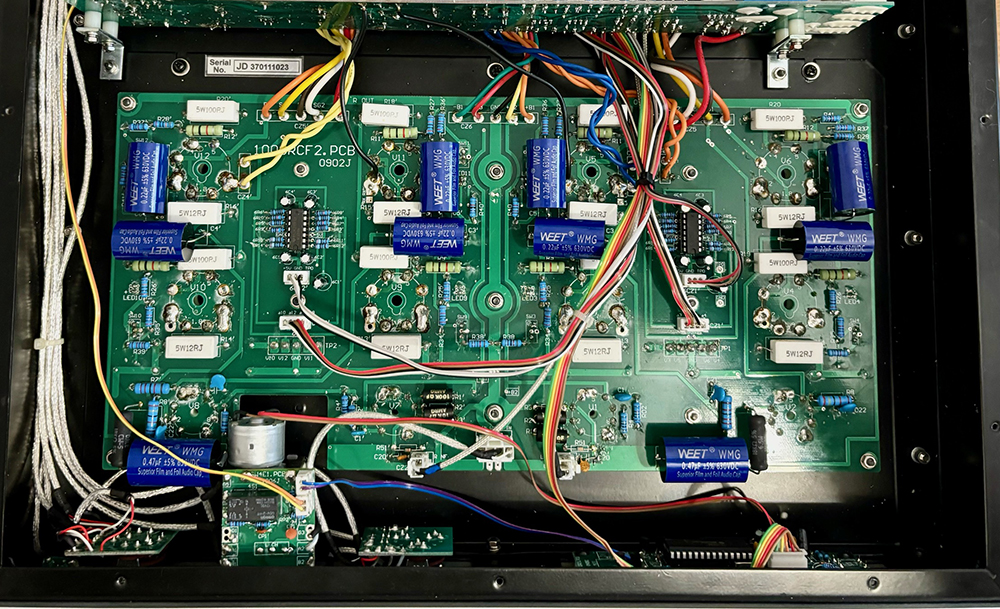

WEET WMG is specifically designed for use in amplifier sections of passive crossover networks. With extremely low ESR, inductance, and dielectric absorption, this premium pure aluminum foil capacitor will provide a surprisingly natural sound.

Cross Reference

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.

Items	*WEET WMG Pure Aluminum Foil and Polypropylene Film Capacitors Axial , DL:+/-2mm**	WEET Description , Manufacturing Process, Product Photos, Datasheet Download	Amtrans AMCY
1	0.022uF 630V +/-5% 8x24 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.022uF-630V-Aluminium-Foil-For-Speaker-Crossover-Usage.html	N/A
2	0.033uF 630V +/-5% 9.5x24 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.033uF-630V-Pure-Aluminium-Foil-Film-For-Guitar-and-Bass.html	N/A
3	0.047uF 630V +/-5% 12x24 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.047uF-630V-AUDIOPHILE-LOUDSPEAKER-AUDIO-COMPONENTS.html	N/A
4	0.068uF 630V +/-5% 10x30.5 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.068uF-630V-Aluminium-High-End-Audio-Capacitors-For-Amp.html	AMCY-683/630
5	0.1uF 630V +/-5% 12x30.5 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.1uF-630V-Pure-Aluminium-Foil-High-Quality-Capacitors-For-Audio.html	AMCY-104/630
6	0.22uF 630V +/-5% 16.5x30.5 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.22uF-630V-Film-and-Foil-Best-Audio-Grade-Hifi-Capacitors.html	AMCY-224/630
7	0.33uF 630V +/-5% 20x30.5 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.33uF-630V-MusiCap-Film-and-Foil-Capacitors-For-Amplifiers.html	AMCY-334/630
8	0.47uF 630V +/-5% 19.5x35 Axial RoHS	https://weetcap.com/Audio-Capacitors/WEET-WMG-0.47uF-630V-Across-Solen-Film-Foil-Polypropylene-Capacitors.html	AMCY-474/630
For other voltage and capacitance, please check with WEET sales. WEET is capable of doing custom service for you. Low MOQ and OEM branding are available on request. Thank you.
