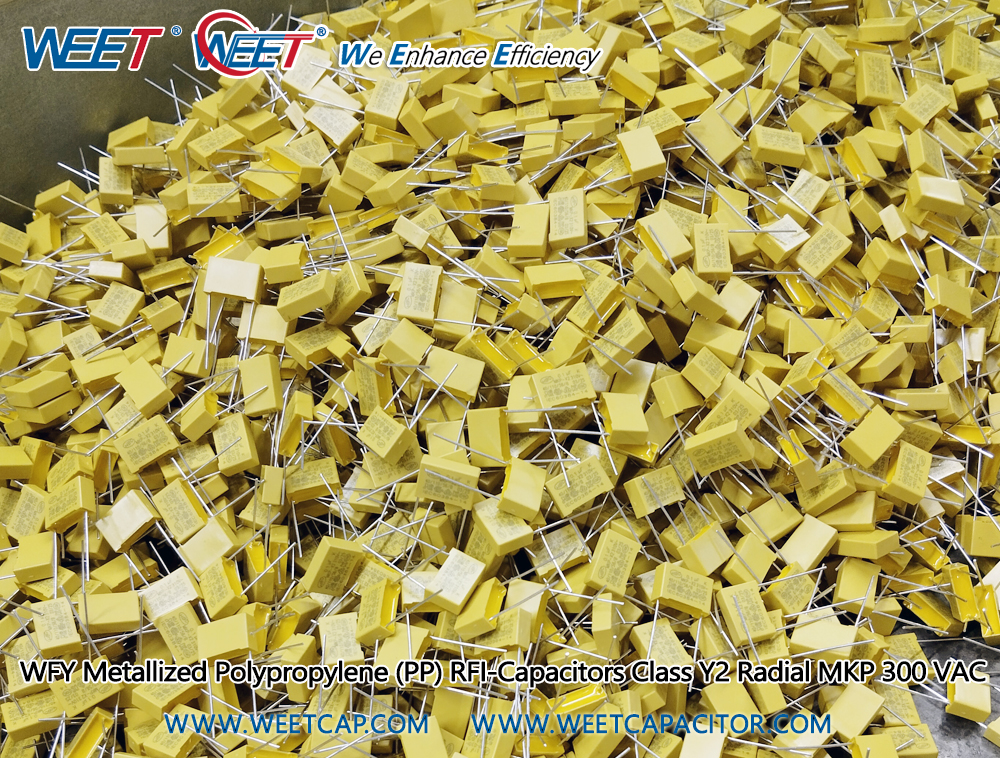

WEET WFY Metallized Polypropylene (PP) RFI-Capacitors Class Y2 Radial MKP 300 VAC

PDF Download

Features

WEET WFY Metallized Polypropylene (PP) RFI-Capacitors Class Y2 Radial MKP 300 VAC
Radial MKP 300 VAC - Line to Ground Application
Metallized Polypropylene (PP) RFI-Capacitors Class Y2
Withstanding overvoltage stressing.
Excellent active and passive flame resistant abilities.
Widely used in line to ground, line-by-pass, antenna coupling interference suppression circuit, etc.

Detailed Specifications

Climatic Category 40/110/56
Operating Temperature -40℃ to +110℃
Permissible DC Voltage 2000VDC at 85℃
Permissible DC Voltage 1500VDC at 105℃
Rated Voltage 250VAC, 300VAC  50/60Hz
Capacitance Range 1500pF~0.82µF
Capacitance Tolerance K: (±10%), M: (±20%)
Voltage Proof Between two leads 3000(DC) (5S)
Voltage Applied Speed 300V/S
Dissipation Factor 0.0015uF≤CR≤0.33uF   ≤0.1% (1kHz,20℃)
0.33uF<CR≤0.82uF     ≤0.2% (1kHz,20℃)
Insulation Resistance ≥15000MΩ;  CR≤0.33μF
≥5000S;       CR>0.33μF      (20℃,100V,1min)

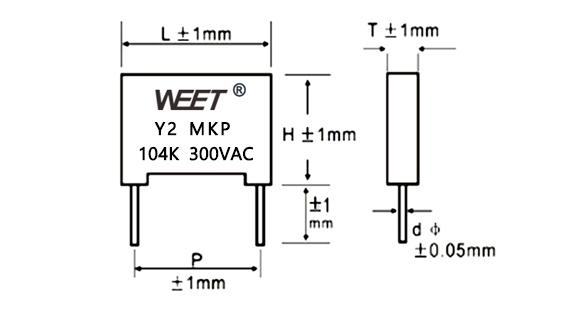

Product Drawing

WEET-WFY-Drawing

Main Applications

Standard line bypass (between line and ground) Y2 applications
Line bypass application for continuous operation
