WEET SMD Oscillator WQS-OSC5032
Cost-effective design
CMOS compatible logic levels
Tri-state function available
Supply voltage range :1.62V~5.5V(Compatible with 1.8V, 2.5V, 3.3V , 5.0V)
RoHS Compliant/Pb Free

Detailed Specifications

Holder Type 5.0x3.2mm SMD OSCILLATOR
Frequency Range 1.000 MHz to 160.000 MHz
Operating Temperature Range -10℃ - +70℃ / -40℃ - +85℃
Storage Temperature Range -55°C-+125°C
Supply Voltage 1.62V Min, 1.8/2.5/3.3/5.0V Typical, 5.5V Max
Symmetry(Duty Cycle) 45% Min/55 % Max Standard
Output Load 15pF HCMOS or 10 TTL
Aging First Year ±3ppm/ year Maximum

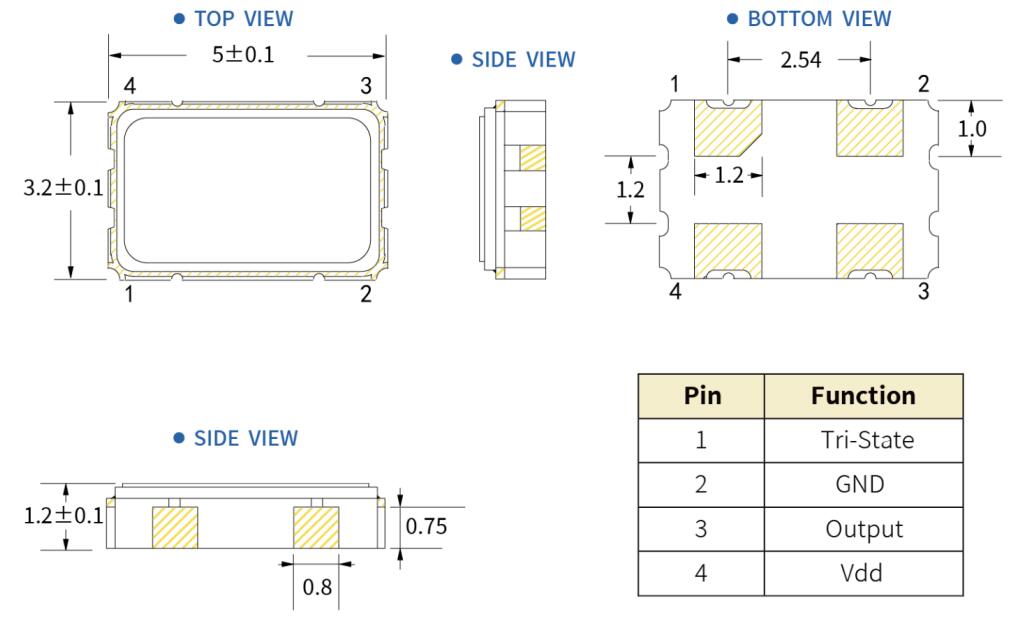

Product Drawing

Main Applications

Active crystal oscillator OSC 3225 3.2*2.5 24.576mhz SMD Type, 5032 car grade crystal oscillator passive SMD crystal oscillator, 7050 SMD Differential Output Crystal Clock Oscillator
Ideally suited designed for use in Ethernet, fiber channel,PCs, NB, PCMCIA Cards, Palmtop Computer, Portable Applications


Cross Reference

WEET Product Name Kyocera Murata  Crystek IQD Frequency Products Comtec Crystals Transko Rakon ABRACON Diodes Incorporated / SaRonix-eCera / Pericom PETERMANN-TECHNIK
WEET-Leaded-Quartz-Crystal-WQC-HC49S CYS HC49/4H HC49S HC49/S QEHC49H3 ABL, ABL2
WEET-SMD-Quartz-Crystal-WQC-HC49SMD CYSD HC49/4HSMX HC49SM HC49/SMD, UM/SMD QESM49H2 / H32 ABM8 HC-49/US-SMD
WEET-SMD-Quartz-Crystal-WQC-SMD3225 CX3225SB XRCJK (TSS-3225J), XRCJH (TAS-3225J) CSX3 CFPX-180 CM3225 CX32, CS32H RSX-8, QESM07 ABM8 FL, XR32 SMD03025
WEET-SMD-Quartz-Crystal-WQC-SMD5032 XRCLK (TSS-5032A) CSX2 CFPX-104 CM5032 CX53A, CS53A, QESM05 ABM3B FP, FY SMD0503
WEET-SMD-Oscillator-WQS-OSC3225 KC3225K CFPS-39, CFPS-40, CFPS-41 CXO3225T TP32, TSM32 QEN07 ASE FK, HX321 SPXO 3.2x2.5mm
WEET-SMD-Oscillator-WQS-OSC5032 KC5032K CFPS-36, CFPS-37, CFPS-67, CFPS-68, CFPS-69, CFPS-9 CXO5032T TCP53, TSM53, QEN05 ASFL1 FD, HX501 SPXO 5.0x3.2mm
WEET-SMD-Oscillator-WQS-OSC7050 KC7050K C18, C25, C32, C33 CFPS-32, CFPS-72, CFPS-73 CXO7050T TP75, TP75A, QEN101 ASV FN, HX701 SPXO 7.0x5.0mm
WEET-Differential-Crystal-Oscillator-WQS-3Z3225 IQXO-593 CXO3225PK TST32, TG32, TPSM3 AK3A HX322, NX322
WEET-Differential-Crystal-Oscillator-WQS-5Z5032 KC5032P IQXO-940, IQXO-941 CXO5032PK TGM5, TP53A, TPSM5 RXO5032M AK5 HX502, NX502
WEET-Differential-Crystal-Oscillator-WQS-7Z7050 KC7050G CCPD-023, CCPD-023, CCPD-033, CCPD-034 IQXO-620, IQXO-621, IQXO-942, IQXO-944 CXO7050PK TP75A, TPSM, TGM RXO7050M AK7 HX702, NX702
