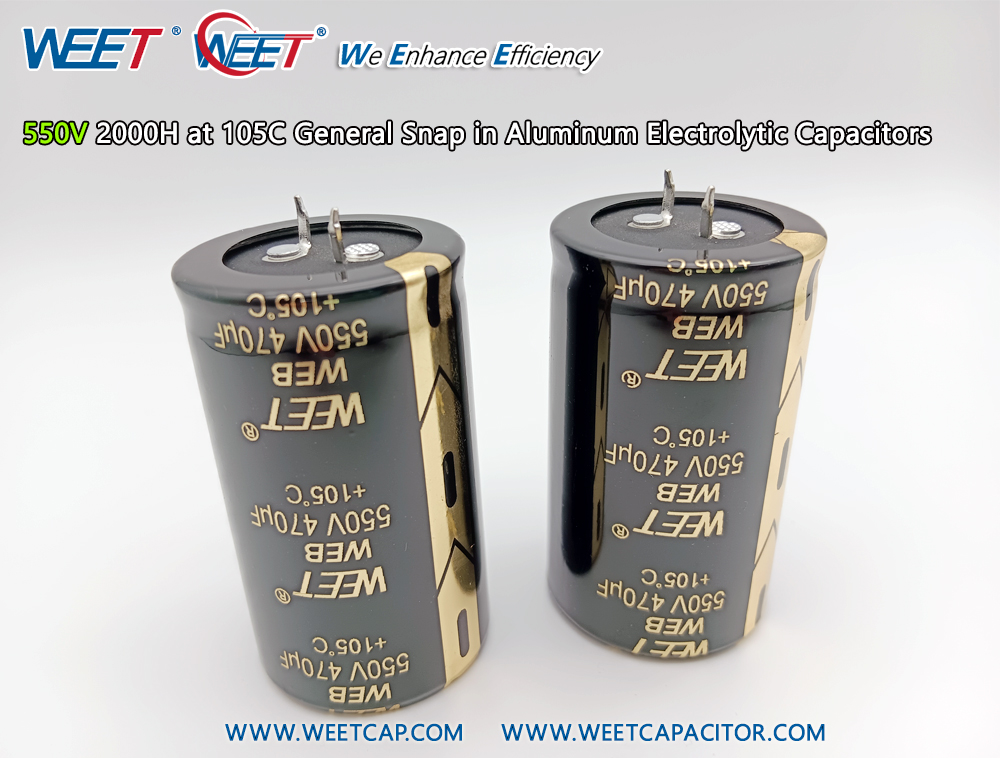

WEET WEB CD294 2000H at 105C General Snap in Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WEB CD294 2000H at 105C General Snap in Aluminum Electrolytic Capacitors
High ripple current, Smaller size, PCB Mounting
Load life of 2000 hours at 105℃


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature: -40℃ ~ +105℃ (>160V: -25℃ ~ +105℃)
Rated Voltage: 16V - 500V.DC
Capacitance Range: 39uF - 47000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.01CV or 1.5mA whichever is smaller(at 20℃,after 5 minutes)

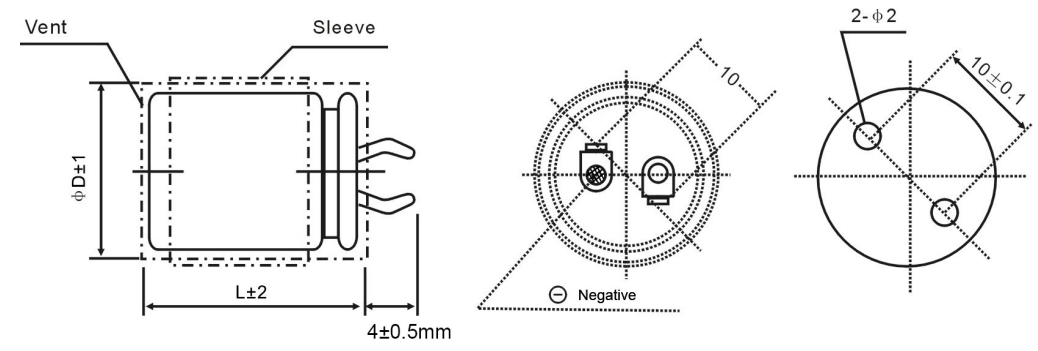

Product Drawing

WEET-WEB-Drawing

Main Applications

CD294 capacitors (cow horn electrolytic capacitors) are widely used in industrial electronic equipment, mainly in the following circuit scenarios:
Industrial power supply and frequency conversion equipment: suitable for industrial grade frequency converters, servo control systems, switching power supplies, and industrial power circuits, capable of withstanding high ripple currents and a wide temperature range (-55 ℃ to+105 ℃) in working environments.  ‌
Electric motors and power electronics: commonly used in welding machine filtering circuits, CNC machine tool main circuits, inverters, and electric vehicle power systems, with high reliability and long lifespan characteristics.  ‌
Energy storage and UPS system: applied to energy storage welding machines, communication power supplies, computer power supplies, and UPS high-power power supply circuits, it can support high-frequency switching actions and maintain voltage stability.  ‌
