WEET WEC CD295 5000H at 85C Long Life Miniaturized Snap in Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WEC CD295 5000H at 85C Long Life Miniaturized Snap in Aluminum Electrolytic Capacitors
Extended Lifetime 5000 hours at 85°C, High ripple current

High Professional Switch Mode Power Supplies,Frequency Converters

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature: 10V~400V: -40℃+85℃, 450V~500V: -25℃~+85℃
Rated Voltage: 10V - 500V.DC
Capacitance Range: 47uF - 68000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.01CV or 1.5mA whichever is smaller(at 20℃,after 5 minutes)

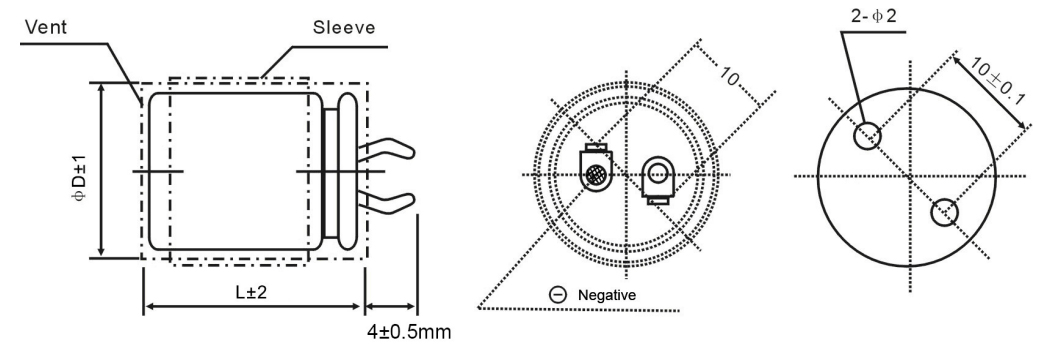

Product Drawing

WEET-WEC-Drawing

Main Applications

CD295 capacitors are mainly used in filtering circuits of electronic devices, commonly found in switch power modules, industrial control equipment, and high-frequency circuits. The following are specific application scenarios:
Switching power supply filtering: CD295 capacitor is often used as a filtering element to suppress power supply noise and transient interference, ensuring stable operation of the circuit. Its high ripple current resistance characteristics (such as the 350V series can reach) 30A@120Hz )Make it perform excellently in switch power modules.  ‌
Industrial control circuits: In industrial automation equipment, CD295 capacitors are used for signal filtering and power decoupling, with a working temperature range covering -40 ℃ to+85 ℃, and can adapt to complex environments
High frequency circuit applications: Some models (such as 400V/390 μ F) are used in high-frequency signal processing circuits to achieve high-frequency filtering and energy storage due to their low equivalent series resistance (ESR ≤ 0.5 Ω) and wide temperature range (-40 ℃/+85 ℃).  ‌
