WEET WED CD135 2000H at 85C Miniaturized Screw Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WED CD135 2000H at 85C Miniaturized Screw Aluminum Electrolytic Capacitors
High ripple current, Size may be selected
Used for computers, communication Powers and inverters

Detailed Specifications

Operating Temperature: -40℃ ~ +85℃ (315WV,-25℃ ~ +85℃)
Rated Voltage: 16V - 500V.DC
Capacitance Range: 270uF - 820000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.02CV or 5mA whichever is smaller(at 20℃,after 5 minutes)

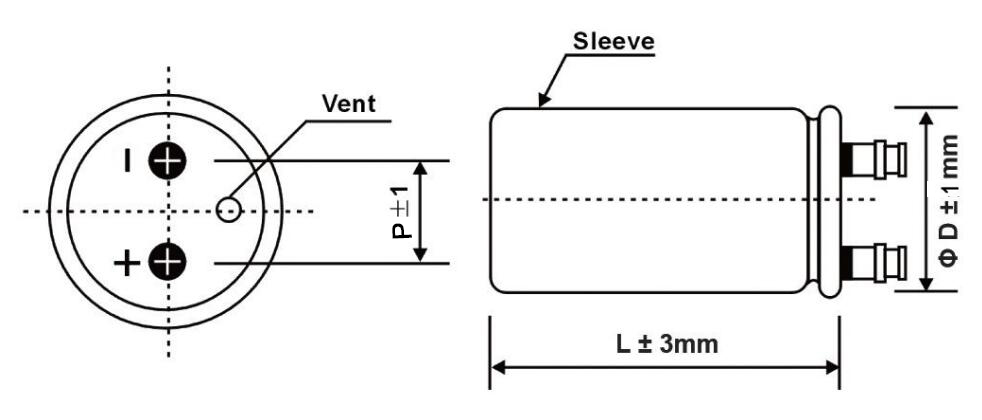

Product Drawing

WEET-WED-Drawing
