WEET WQC TF308 32.768KHz Cylindrical Tuning Fork Crystal

PDF Download

Features

WEET WQC TF308 32.768KHz Cylindrical Tuning Fork Crystal
Miniature Cylindrical Tuning Fork Crystals
Package Size: Ф3.0x8.0mm
Low Aging, Low Power Consumption, High Shock
RoHS Compliant/Pb Free

Detailed Specifications

Item

Symb.

Electrical spec.

Notes

Nominal Frequency

Freq.

32.768KHz



Operating Temperature

T_use

-10~+60/-20~+70



Storage Temperature Range

T_stg

-4085



Oscillation Mode

-

Fundamental



Frequency Tolerance

f_tol

±10ppm / ±20ppm

at 25±3

Turnover Temperature

Ti

±25±5



Parabolic curvature constant

B

-0.042ppm/(△℃)² max.

Over Operating Temp. Range (Reference 25)

Drive Level

DL

1 μW Max.



Load Capacitance

CL

6pF;7pF;9pF;12.5pF



Effective Resistance

RR

30kΩ max



Aging

f_age

±3 ppm Max.

1st. Year at 25

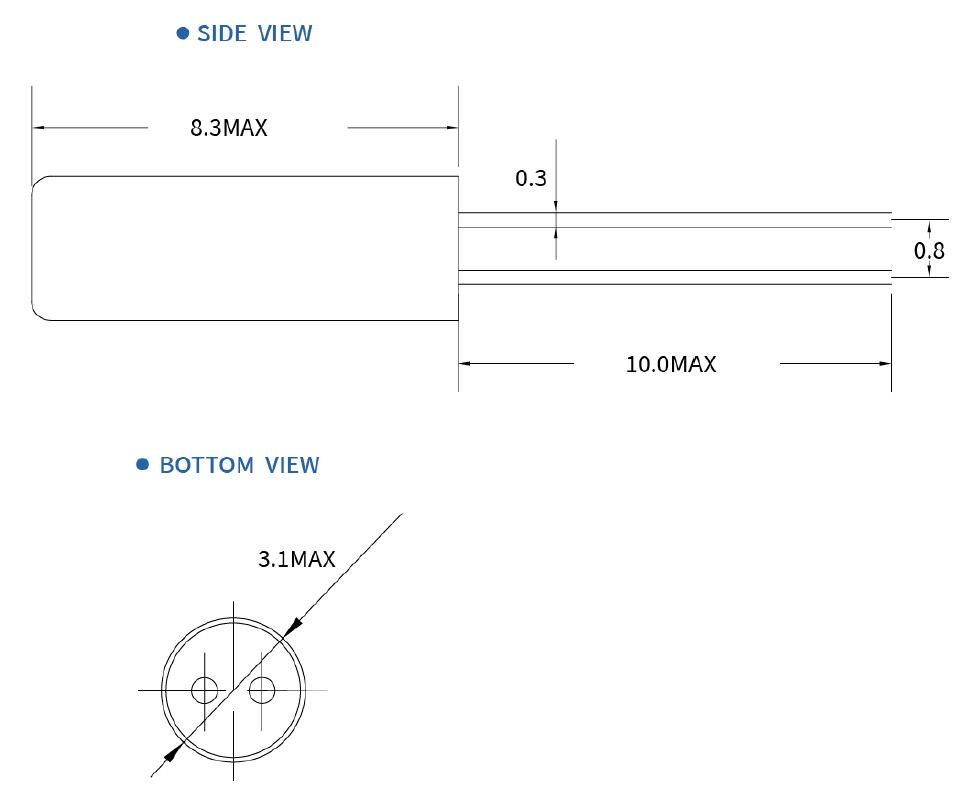

Product Drawing

Main Applications

Real Time Clock
Portable Electronics
Smart Meters
Communication Electronics
loT Devices
