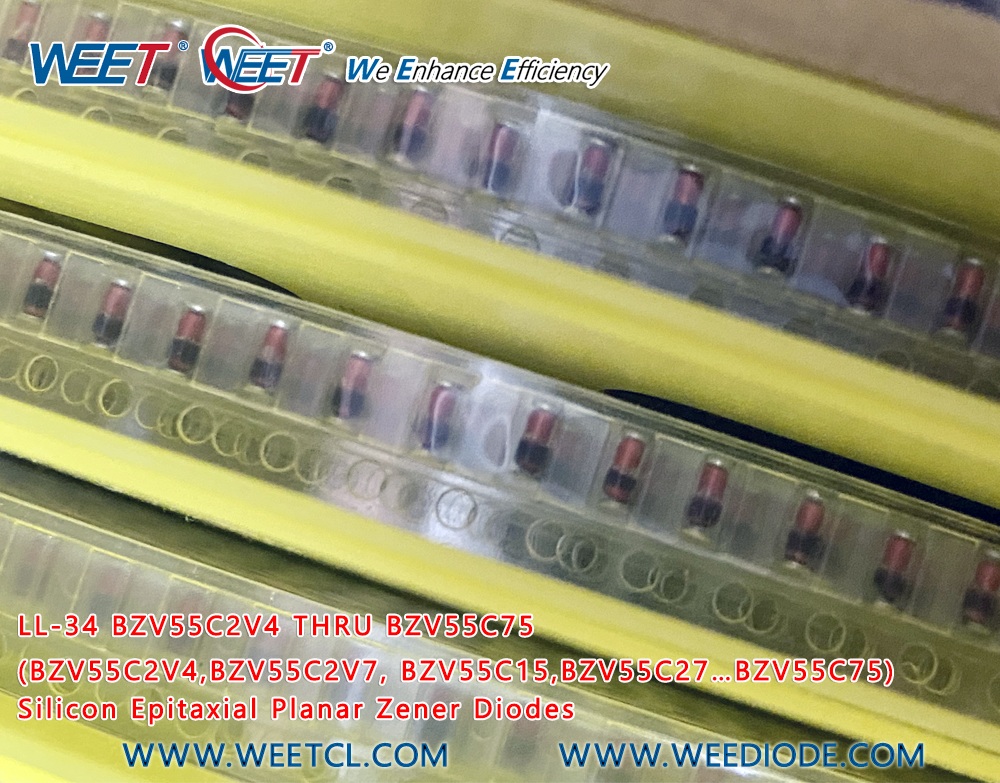

WEET LL-34 BZV55C2V4 THRU BZV55C75 (BZV55C2V4,BZV55C2V7, BZV55C15,BZV55C27…BZV55C75) Silicon Epitaxial Planar Zener Diodes

PDF Download

Features

WEET LL-34 BZV55C2V4 THRU BZV55C75 (BZV55C2V4,BZV55C2V7, BZV55C15,BZV55C27…BZV55C75) Silicon Epitaxial Planar Zener Diodes

LL-34 BZV55C2V4 THRU BZV55C75 (BZV55C2V4,BZV55C2V7, BZV55C15,BZV55C27…BZV55C75) Silicon Epitaxial Planar Zener Diodes

• Total power dissipation: max. 500 mW
• Two tolerance series: ± 2% and approx. ± 5%

Applications:Low voltage stabilizers or voltage references

Detailed Specifications

Power Dissipation: max. 500 mW
Junction and Storage Temperature Range:- 65 to + 200℃

Product Drawing

Main Applications

Industrial:Motor Control,Smart Power Meter,Welder,Industrial Air Conditioning
Automotive:Electric Vehicle Charging Station, DC Converter, Switching, Inverter, Control/Monitor
Computing:Input Stage Rectification, Transient Protection, ESD Protection, DC/DC Power, Camera Motor Drive
Aerospace:Cockpit Electronics, Engine Systems, Actuation Systems, Communications, Passenger Cabin Systems
Medical:Hearing Aid, Glucometer, Electrocardiograph, Patient Monitor, Supervisory, Ultrasound Imaging
LED Lighting:LED Street Lamp, Compact Fluorescent Lamp (CFL) , Rice cooker, Garden Lighting, LCD, Backlighting
Consumer:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Power Supply:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Alternative Energy:Power Bank, Smartphone, Tablet, Wearable, Wireless Headset, Solar Panel, Solar Inverter

Cross Reference

We are glad to inform you that WEET Diodes and Bridge Rectifiers Cross Reference to PANJIT Taiwan Semiconductor GI MOTOROLA IR FUJI FAGOR LITE-ON .
Fast lead time and stock offer. thank you.Please download from below link for more details, thank you.
https://www.weetcl.com/Cross-Reference/
