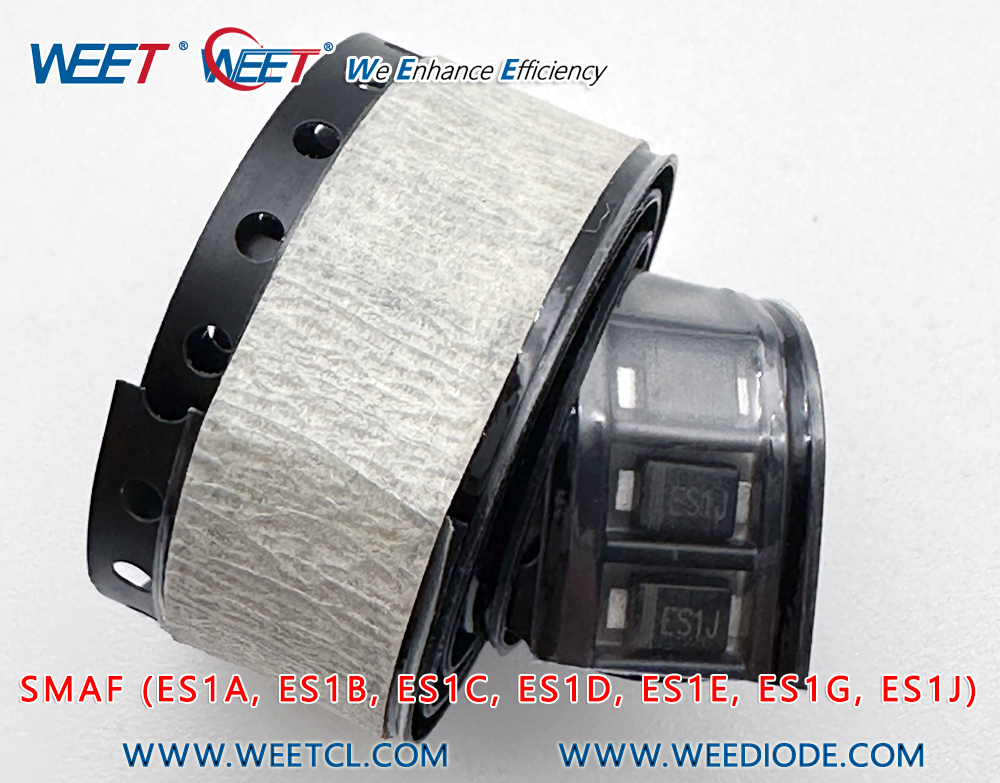

WEET SMAF ES1A THRU ES1J (ES1A, ES1B, ES1C, ES1D, ES1E, ES1G, ES1J) Ultra-Fast Recovery Rectifiers

PDF Download

Features

WEET SMAF ES1A THRU ES1J (ES1A, ES1B, ES1C, ES1D, ES1E, ES1G, ES1J) Ultra-Fast Recovery Rectifiers
VOLTAGE RANGE 50 to 600 Volts
CURRENT 1.0 Ampere
Plastic package has underwrites laboratory flammability Classification 94V-0
Glass passivated chip junction
Built-in strain relief
Super Fast switiching speed for high efficiency
High temperature soldering guaranteed 250℃/10 seconds


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

MECHANICAL DATA
Case: Transfer molded plastic
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Weight: 0.002ounce, 0.064 gram

Product Drawing

Main Applications

Industrial:Motor Control,Smart Power Meter,Welder,Industrial Air Conditioning
Automotive:Electric Vehicle Charging Station, DC Converter, Switching, Inverter, Control/Monitor
Computing:Input Stage Rectification, Transient Protection, ESD Protection, DC/DC Power, Camera Motor Drive
Aerospace:Cockpit Electronics, Engine Systems, Actuation Systems, Communications, Passenger Cabin Systems
Medical:Hearing Aid, Glucometer, Electrocardiograph, Patient Monitor, Supervisory, Ultrasound Imaging
LED Lighting:LED Street Lamp, Compact Fluorescent Lamp (CFL) , Rice cooker, Garden Lighting, LCD, Backlighting
Consumer:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Power Supply:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Alternative Energy:Power Bank, Smartphone, Tablet, Wearable, Wireless Headset, Solar Panel, Solar Inverter

Cross Reference

We are glad to inform you that WEET Diodes and Bridge Rectifiers Cross Reference to PANJIT Taiwan Semiconductor GI MOTOROLA IR FUJI FAGOR LITE-ON .
Fast lead time and stock offer. thank you.Please download from below link for more details, thank you.
https://www.weetcl.com/Cross-Reference/
