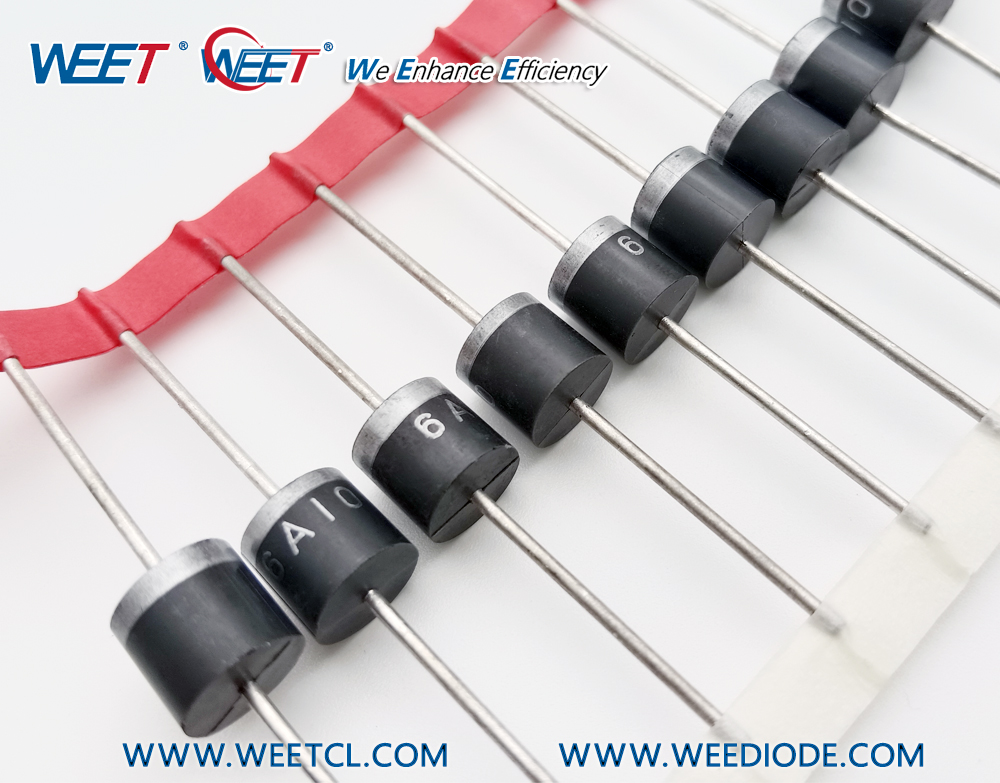

WEET R-6 6A05 THRU 6A10 (6A05, 6A1, 6A2, 6A4, 6A6, 6A8, 6A10) General Purpose Plastic Rectifier

PDF Download

Features

WEET R-6 6A05 THRU 6A10 (6A05, 6A1, 6A2, 6A4, 6A6, 6A8, 6A10) General Purpose Plastic Rectifier
Low forward voltage drop
Low leakage current
High forward surge capability
High temperature soldering guaranteed
260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension

Detailed Specifications

MECHANICAL DATA
Case: Transfer molded plastic
Epoxy: UL94V-0 rate flame retardant
Polarity: Color band denotes cathode end
Lead: Plated axial lead, solderable per MIL-STD-202E method 208C
Mounting position: Any

Product Drawing

Main Applications

Industrial:Motor Control,Smart Power Meter,Welder,Industrial Air Conditioning
Automotive:Electric Vehicle Charging Station, DC Converter, Switching, Inverter, Control/Monitor
Computing:Input Stage Rectification, Transient Protection, ESD Protection, DC/DC Power, Camera Motor Drive
Aerospace:Cockpit Electronics, Engine Systems, Actuation Systems, Communications, Passenger Cabin Systems
Medical:Hearing Aid, Glucometer, Electrocardiograph, Patient Monitor, Supervisory, Ultrasound Imaging
LED Lighting:LED Street Lamp, Compact Fluorescent Lamp (CFL) , Rice cooker, Garden Lighting, LCD, Backlighting
Consumer:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Power Supply:SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Alternative Energy:Power Bank, Smartphone, Tablet, Wearable, Wireless Headset, Solar Panel, Solar Inverter

Cross Reference

We are glad to inform you that WEET Diodes and Bridge Rectifiers Cross Reference to PANJIT Taiwan Semiconductor GI MOTOROLA IR FUJI FAGOR LITE-ON .
Fast lead time and stock offer. thank you.Please download from below link for more details, thank you.
https://www.weetcl.com/Cross-Reference/
