WEET WFP CBB60 Round Shape and Plastics Case Motor Running Capacitor

Features

Metallized polypropylene( MPP) film capacitor, Dry structure, Epoxy filling
Flame retardant plastic shell, RoHS Compliant
The protection class is S0, B and C Life Degree on request

High pressure-resistant,long life, Self-healing

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature	-40℃ ~ +85℃
Voltage Range	450VAC
Capacitance Range	1uF ~ 100uF
Capacitance Tolerance	±5%、±10%
Operating Frequency	50/60Hz
Withstand Voltage	T-T:2Un/2S; T-C:≥2200VAC/2S
Dissipation Factor	≤0.004 100Hz
Insulation Resistance	≥3000S

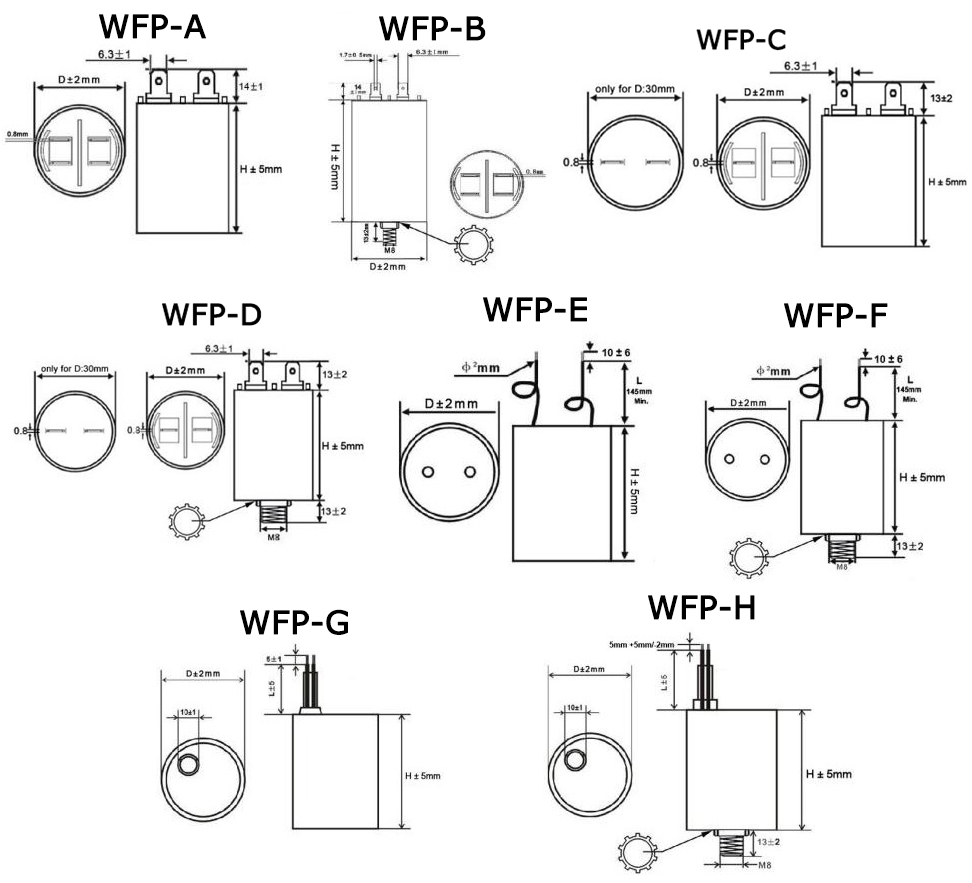

Product Drawing

Main Applications

WEET CBB60 capacitors are widely applied as AC motor start or motor running for water pump, washing machine, paper smashing machine, ceiling fans, ventilation equipment, air conditioning and so on.

WFP-CBB60-Metallized-Polypropylene-MPP-Film-Capacitor-Dry-Structure-Epoxy-Filling-1uF-to-100uF.jpg

Cross Reference

https://www.weetcap.com/pdf/WEET-Cross-Reference-for-Capacitors.pdf

CAP/uF	WEET CBB60 450V Two Wires Type	WEET PN	CAP/uF	WEET CBB60 450V Two Wires Type	WEET PN
1	WFP-E 450VAC 1uF ±5% 34*60mm	WFPES2105J000000BR	16	WFP-E 16uF 450VAC ±5% 38*70mm	WFPES2166J000000BR
1.5	WFP-E 450VAC 1.5uF ±5% 34*60mm	WFPES2155J000000BR	18	WFP-E 450VAC 18uF ±5% 38*70mm	WFPES2186J000000BR
2	WFP-E 450VAC 2uF ±5% 34*60mm	WFPES2205J000000BR	20	WFP-E 450VAC 20uF ±5% 38*70mm	WFPES2206J000000BR
2.5	WFP-E 450VAC 2.5uF ±5% 34*60mm	WFPES2255J000000BR	22	WFP-E 450VAC 22uF ±5% 40*70mm	WFPES2226J000000BR
3	WFP-E 450VAC 3uF ±5% 34*60mm	WFPES2305J000000BR	24	WFP-E 450VAC 24uF ±5% 40*70mm	WFPES2246J000000BR
3.5	WFP-E 450VAC 3.5uF ±5% 34*60mm	WFPES2355J000000BR	25	WFP-E 25uF 450VAC ±5% 40*70mm	WFPES2256J000000BR
4	WFP-E 450VAC 4uF ±5% 34*60mm	WFPES2405J000000BR	30	WFP-E 450VAC 30uF ±5% 45*90mm	WFPES2306J000000BR
4.5	WFP-E 450VAC 4.5uF ±5% 34*60mm	WFPES2455J000000BR	35	WFP-E 450VAC 35uF ±5% 45*90mm	WFPES2356J000000BR
5	WFP-E 450VAC 5uF ±5% 34*60mm	WFPES2505J000000BR	40	WFP-E 40uF 450VAC ±5% 45*90mm	WFPES2406J000000BR
6	WFP-E 6uF 450VAC ±5% 34*60mm	WFPES2605J000000BR	45	WFP-E 450VAC 45uF ±5% 45*90mm	WFPES2456J000000BR
7	WFP-E 450VAC 7uF ±5% 34*60mm	WFPES2705J000000BR	50	WFP-E 50uF 450VAC ±5% 50*120mm	WFPES2506J000000BR
8	WFP-E 450VAC 8uF ±5% 34*60mm	WFPES2805J000000BR	55	WFP-E 450VAC 55uF ±5% 50*120mm	WFPES2556J000000BR
9	WFP-E 450VAC 9uF ±5% 34*60mm	WFPES2905J000000BR	60	WFP-E 450VAC 60uF ±5% 50*120mm	WFPES2606J000000BR
10	WFP-E 10uF 450VAC ±5% 34*60mm	WFPES2106J000000BR	65	WFP-E 450VAC 65uF ±5% 50*120mm	WFPES2656J000000BR
11	WFP-E 450VAC 11uF ±5% 38*70mm	WFPES2116J000000BR	70	WFP-E 450VAC 70uF ±5% 50*120mm	WFPES2706J000000BR
12	WFP-E 450VAC 12uF ±5% 38*70mm	WFPES2126J000000BR	75	WFP-E 450VAC 75uF ±5% 50*120mm	WFPES2756J000000BR
13	WFP-E 450VAC 13uF ±5% 38*70mm	WFPES2136J000000BR	80	WFP-E 450VAC 80uF ±5% 50*120mm	WFPES2806J000000BR
14	WFP-E 450VAC 14uF ±5% 38*70mm	WFPES2146J000000BR	85	WFP-E 450VAC 85uF ±5% 60*120mm	WFPES2856J000000BR
15	WFP-E 450VAC 15uF ±5% 38*70mm	WFPES2156J000000BR	90	WFP-E 450VAC 90uF ±5% 60*120mm	WFPES2906J000000BR
Other values are acceptable by request, Size is flexible and for reference only, thank you.			100	WFP-E 450VAC 100uF ±5% 60*120mm	WFPES2107J000000BR
