WEET WFR CBB65 Round Shape and Aluminum Case Motor Capacitors

PDF Download

Features

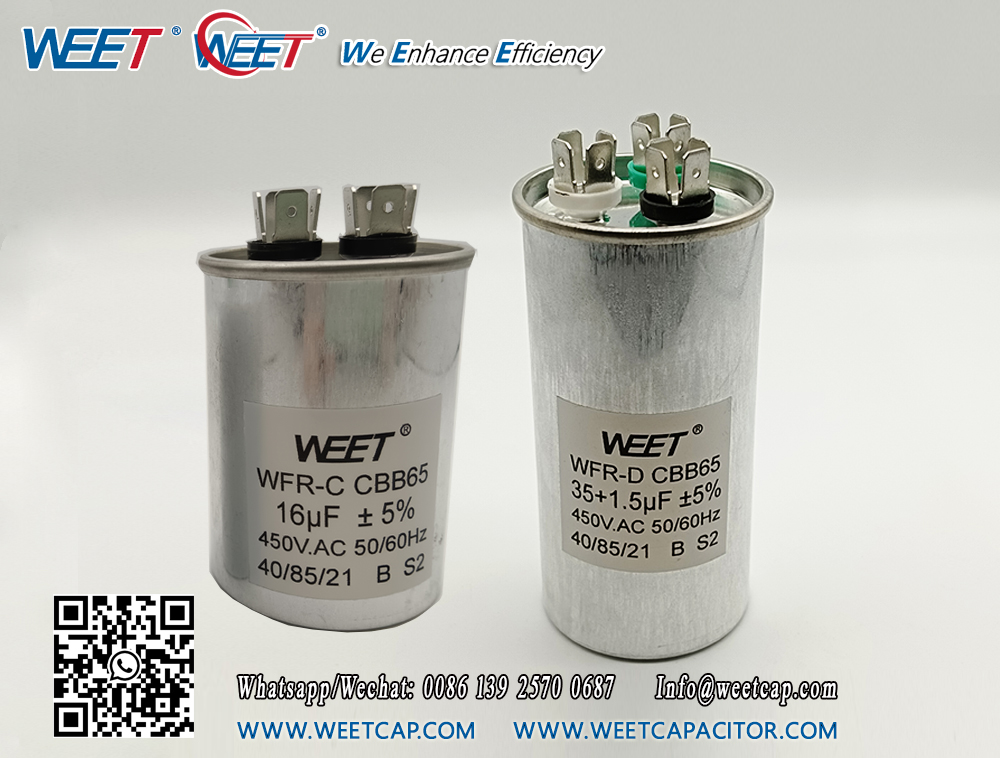

WEET WFR CBB65 Round Shape and Aluminum Case Motor Capacitors
Self-healing, metallized polypropylene film, Oil filled
Metal Case, Moisture and Oil Resistant, RoHS Compliant
WEET WFR AC Motor Running capacitors are oil-filled metallized polypropylene film capacitors
These capacitors are used in split phase motor, compressor, filter and other AC applications.
The capacitors are housed aluminum cases with steel covers.
Different terminal configurations are available for various wiring options.

Detailed Specifications

Operating Temperature  -40~+85
Voltage Range 370VAC,  450VAC
Capacitance Range 2uF~100uF
Capacitance Tolerance ±5%±10%
Operating Frequency 50/60Hz
Withstand Voltage T-T:2Un/2S; T-C:≥2200VAC/2S
Dissipation Factor ≤0.004 100Hz
Insulation Resistance ≥3000S

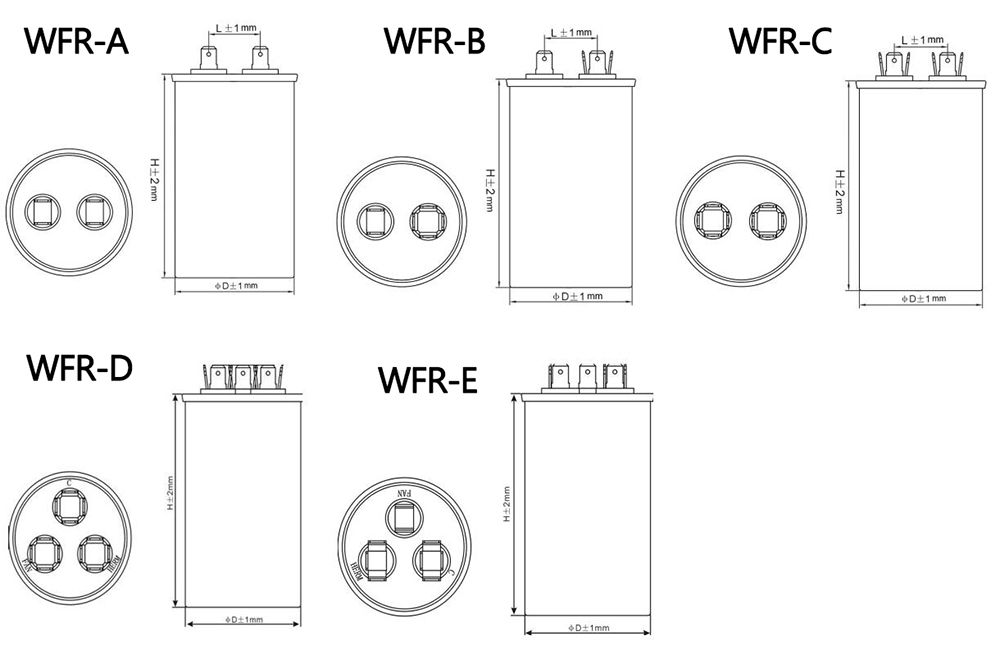

Product Drawing

Main Applications

These capacitors are used in split phase motor, compressor, filter and other AC applications.
