WEET WTD CA55 SMD Conductive Solid Polymer Tantalum Capacitors

PDF Download

Features

WEET WTD CA55 SMD Conductive Solid Polymer Tantalum Capacitors
Extremely low ESR , Volumetrically efficient , Stable in electrical & storage performances

Long lifespan, High reliability.

Epoxy molded encapsulation, Chip, Easy for integration, Polarized

https://www.weetcap.com/pdf/WEET-WTD-CA55-SMD-Conductive-Solid-Polymer-Tantalum-Capacitors-Manufacturing-Process.pdf

Detailed Specifications

Operating Temp.: -55'C ~ +125'C; >85℃(with rated voltage derating)
DC Leakage at 25℃: I0≤0.1 CRUR
Capacitance: 0.68μF~1000μF
Voltage Range: 2.5V, 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 40V, 50V
Tolerance: M: ±20% (Standard Tolerance)
Case Size: P A B C D E V W G S
Package Type: Tape & Reel
Cross Ref.: AVX TCJ series, Kemet T520 Series, Vishay T55

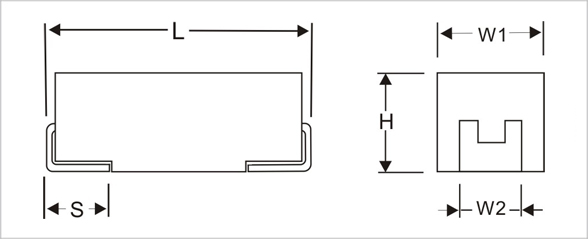

Product Drawing

WEET-WTD-Drawing

Main Applications

WEET WTD Tantalum Capacitor typical applications include DC/DC converters , notebook PCs , portable electronics , telecommunications (mobile phone and base station ), displays ,SSD,HDD and USB.

Cross Reference

AVX TCJ series, Kemet T520 Series, Vishay T55
