WEET WFS CD60 Round Shape and Aluminum Case Motor Starting Capacitors

PDF Download

Features

WEET WFS CD60 Round Shape and Aluminum Case Motor Starting Capacitors
WEET WFS are non-polarized aluminum electrolytic capacitors
These capacitors are used in starting fractional horsepower,
Single-phase electric motors, as well as in gear motor applications.
The capacitors are housed in metal cans with plastic insulation.

Detailed Specifications

Operating Temperature -40 ~ +65
Voltage Range 110VAC~ 330VAC
Capacitance Range 50uF ~ 1500uF
Capacitance Tolerance ±15%
Operating Frequency 50/60Hz
Withstand Voltage Between Terminals 1.2 times working voltage, no break down within 2s
Withstand Voltage Between Terminal And Case
2000VAC, no break down with 60s

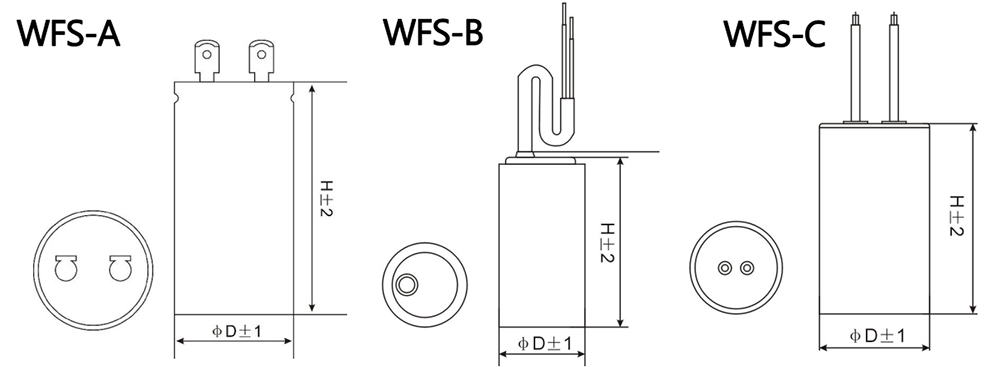

Product Drawing

Main Applications

CD60 start run capacitor is a kind of aluminum electrolytic capacitor, which is mainly used for starting single-phase motor, especially for equipment such as air compressor, water pump start capacitor, and soybean milk machine. It has a small size, large capacity, and stability, and can provide the required starting current and torque when starting an AC motor. CD60 starting capacitor also has the ability to accommodate charges and can play a role in isolating direct current, coupling, bypassing, filtering, etc. in circuits.
