WEET WFT High Voltage Metallized Polypropylene Film Capacitors For Power Supply

PDF Download

Features

WEET WFT High Voltage Metallized Polypropylene Film Capacitors  For Power Supply
Metallized polypropylene film wound.
Non-inductive construction the polyester tape or specific tape wrap and epoxy resin end filled,
Excellent self-hearing property and temperature stability,
Copper solder tags, copper screw, copper nut and others are available on request.

Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Passive Flammability standard GB/T 2693 idt IEC 60384-l
Operating temperature -40℃~+85℃
Capacitance range 160pF~20uF
Capacitance tolerance ±5%、±10% 1KHz
Rated voltage 3K-30KVDC/1K-10KVAC
Withstand voltage 1.4Un(60S)
Dissipation factor SHALL NOT BE GREATER THAN 0.1%
Insulate the electric resistance IR ≥100 000MΩ,CN≤0.33uF
(20℃,100VDC,1min) IR ≥30000s  CN >0.33uF

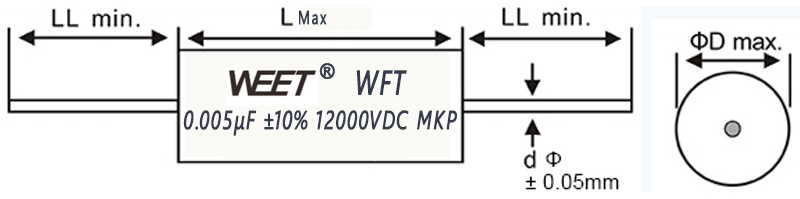

Product Drawing

Main Applications

Mainly used high voltage converter super high voltage power supply, high voltage coupling and carrier wave communication signal coupling in high voltage transmission lne.

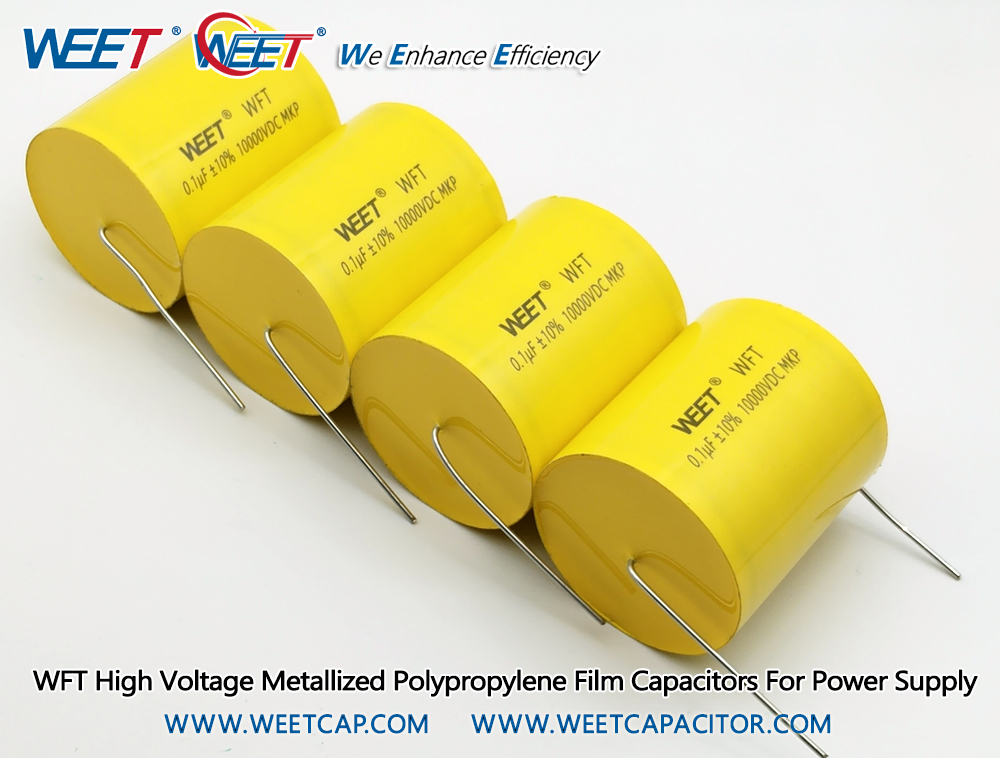

WEET-High-Voltage-MKP-Axial-Capacitor-12000V-Small-Size-and-3K-30KVDC-1K-10KVAC
