WEET MH Trapezium Metal Clad Wirewound Resistor

PDF Download

Features

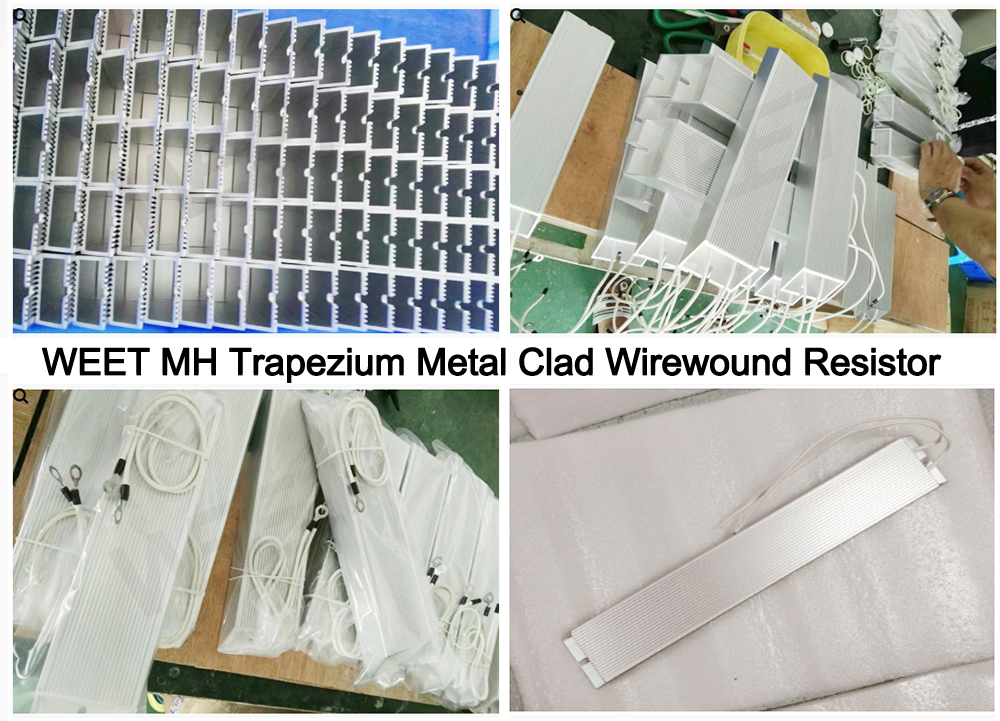

WEET MH Trapezium Metal Clad Wirewound Resistor
High power rating , small size and ultra precision
Excellent load life stability.
Excellent short time over load
Strongly resistant to moisture, solvent and insulation.
Self-extinguish material is used in molding
Both standard winding type and non-inductive winding type are available
Terminal arrangements should be separately specified
High-surge-resistant items are also available .

Items with the thermal switches are also available

Contact Whatsapp  Send Enquiry WEET YouTube

Detailed Specifications

Type Dimensions (mm) Max. Weight(g) Resistance Range (Ω) Non-Inductive Type
L1 L2 W H D
MH(L)60 115 100 40 20 5.3 110 0.1Ω-10KΩ 0.1Ω-2.5KΩ
MH(L)80 140 125 40 20 5.3 160 0.1Ω-10KΩ 0.2Ω-3KΩ
MH(L)100 165 150 40 20 5.3 200 0.1Ω-10KΩ 0.2Ω-4KΩ
MH(L)120 190 175 40 20 5.3 240 0.15Ω-15KΩ 0.2Ω-5KΩ
MH(L)150 215 200 40 20 5.3 290 0.15Ω-15KΩ 0.2Ω-6KΩ
MH(L)200 165 150 60 30 5.3 460 0.3Ω-20KΩ 0.2Ω-7KΩ
MH(L)300 215 200 60 30 5.3 750 0.5Ω-30KΩ 0.5Ω-8KΩ
MH(L)400 265 250 60 30 5.3 930 0.5Ω-30KΩ 0.5Ω-10KΩ
MH(L)500 335 320 60 30 5.3 1100 0.5Ω-30KΩ 0.5Ω-12KΩ
MH(L)800 400 385 60 30 5.3X2 1250 1Ω-50KΩ 0.5Ω-12KΩ
MH(L)1000 400 385 100 50 5.3X2 2800 1Ω-100KΩ 1Ω-15KΩ

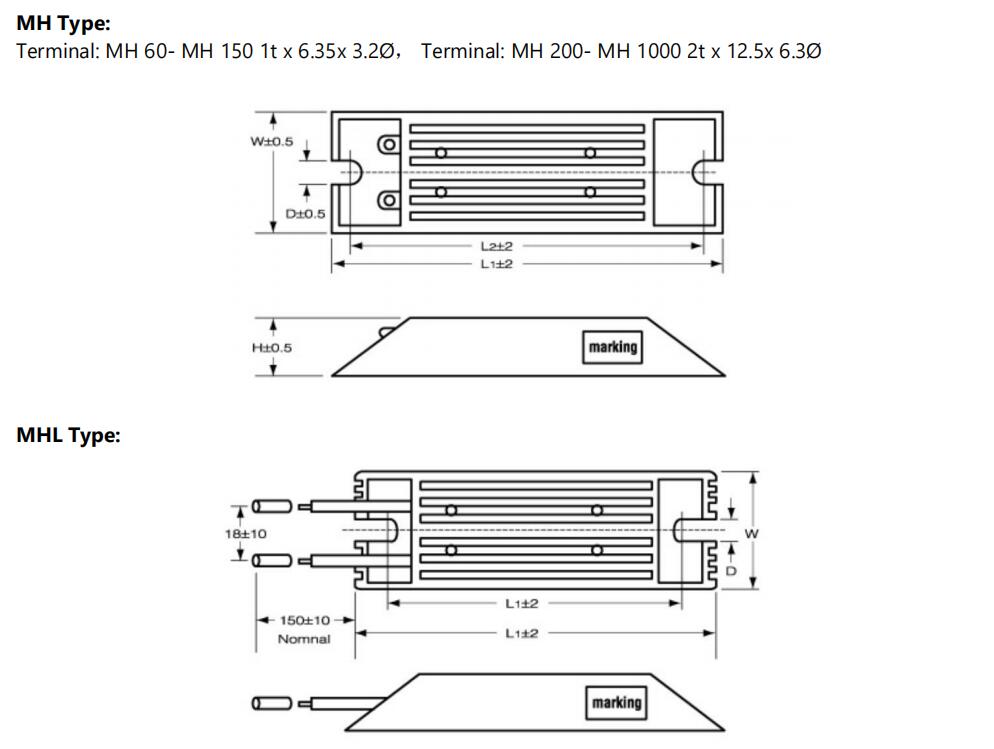

Product Drawing

Main Applications

The resistors we produce are widely applied in Automotive Industry, Power Supply Industry,LED Lighting, Home Appliances, Communication Equipment, electronic toys and other consumer goods,

Medical Equipment Industry, communication equipment, computers, automotive electronics, high-frequency and microwave circuits,automotive electronics, power circuits, converters, regulators and other fields
