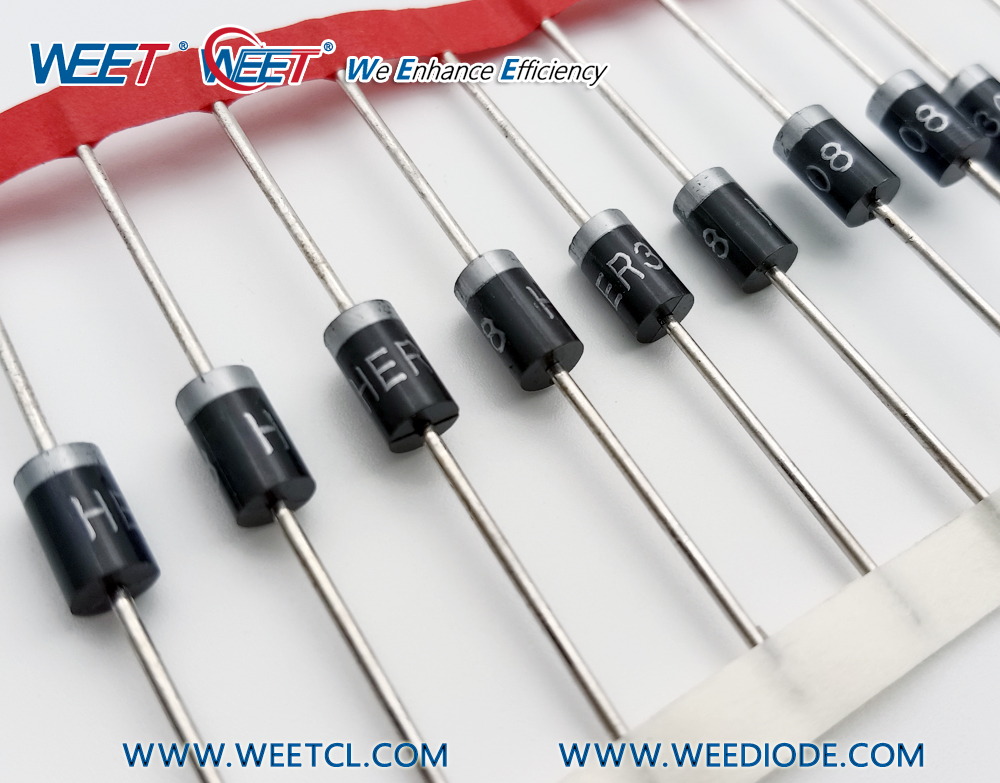

Features
VOLTAGE RANGE 50 to 1000 Volts
CURRENT 3.0 Ampere
Low power loss, high efficiency
Low forward voltage drop
Low leakage current
High forward surge capability
High reliability
High temperature soldering guaranteed
260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
Detailed Specifications
MECHANICAL DATA
Case: Transfer molded plastic
Epoxy: UL94V-0 rate flame retardant
Polarity: Color band denotes cathode end
Lead: Plated axial lead, solderable per MIL-STD-202E method 208C
Mounting position: Any
Main Applications
Industrial：Motor Control,Smart Power Meter,Welder,Industrial Air Conditioning
Automotive：Electric Vehicle Charging Station, DC Converter, Switching, Inverter, Control/Monitor
Computing：Input Stage Rectification, Transient Protection, ESD Protection, DC/DC Power, Camera Motor Drive
Aerospace：Cockpit Electronics, Engine Systems, Actuation Systems, Communications, Passenger Cabin Systems
Medical：Hearing Aid, Glucometer, Electrocardiograph, Patient Monitor, Supervisory, Ultrasound Imaging
LED Lighting：LED Street Lamp, Compact Fluorescent Lamp (CFL) , Rice cooker, Garden Lighting, LCD, Backlighting
Consumer：SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Power Supply：SMPS, Uninterruptable Power Supply, ORing Diode Function, Application_Low Voltage Power
Alternative Energy：Power Bank, Smartphone, Tablet, Wearable, Wireless Headset, Solar Panel, Solar Inverter
