WEET FR Series Fusible Resistor

PDF Download

Features

WEET FR Series Fusible Resistor

Flame retardant coating. Body coating is in gray, with 4 or 5 color bands or stamping

Standard tolerance:± 1%, ± 2%, ± 5%

Applications are widely used in constant voltage designed, overload protection,

Applicable for battery charges, TV sets, cordless phones and PC/CPU coolers

Detailed Specifications

Series Power Rating Dimension(mm) Max. Working Voltage Max. Overload Voltage Resistance Range
(Watt) L ØD H Ød ±2%(G) ±5%(J)
FR 1/4W 6.0±0.2 2.3±0.3 26.5±2 0.5±0.05 250 300 1.7Ω~1KΩ 2.2Ω~1KΩ
FR 1/2W 9.0±0.5 3.2±0.3 26±2 0.58±0.05 250 400 1.7Ω~1KΩ 2.2Ω~1KΩ
FR 1W 11.0±0.5 4.5±0.5 35±2 0.68±0.05 300 500 1.7Ω~1KΩ 0.27Ω~1KΩ
FR 2W 15.0±0.5 5.0±0.5 32±2 0.78±0.05 350 500 1.7Ω~1KΩ 0.33Ω~1KΩ
FR 3WS 15.0±0.5 5.0±0.5 32±2 0.78±0.05 350 500 1.7Ω~1KΩ 0.33Ω~1KΩ
FR SW 17.0±0.5 6.0±0.5 32±2 0.78±0.05 350 500 1.7Ω~1KΩ 0.33Ω~1KΩ

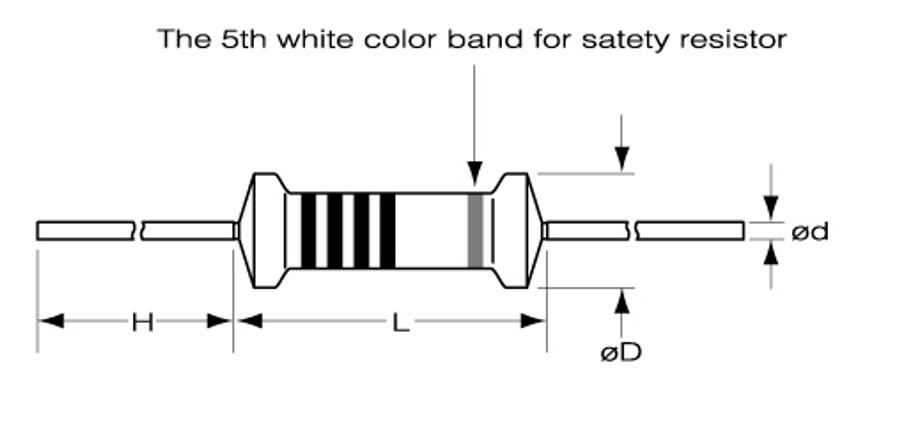

Product Drawing

WEET-FR-Drawing

Main Applications

Ideal circuit opening controller, disconnecting units from overload rating specified. Flame retardant coating. Body coating is in gray, with 4 or 5 color bands or stamping
Fusible resistors can be customed designs. It is specially spiraled to provide the fusible function with flame retardant coating.
Applications are widely used in constant voltage designed, overload protection, applicable for battery charges, TV sets, cordless phones and PC/CPU coolers
