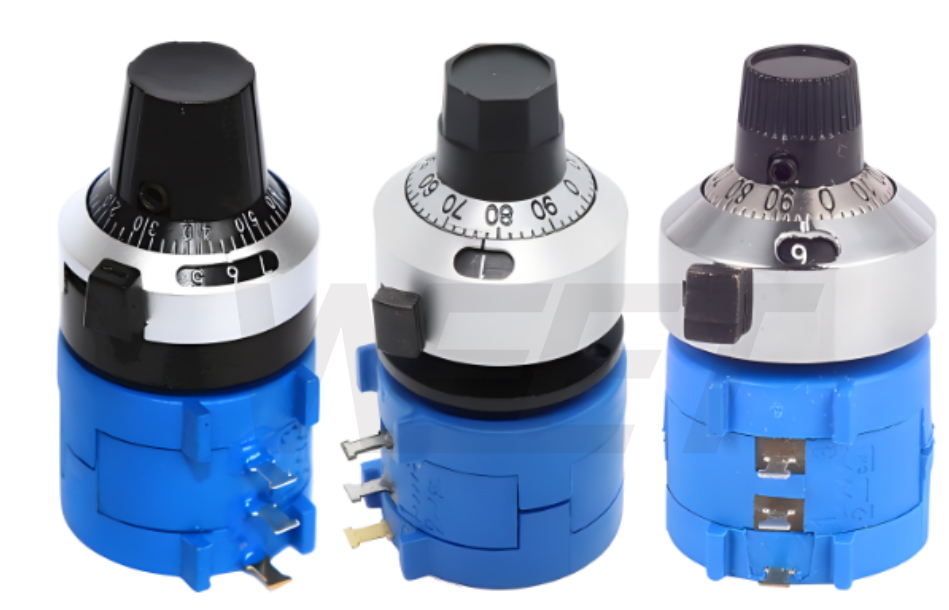

WEET WTP H23 Turns Counting Dial for Digital Circuits and Systems

PDF Download

Features

WEET WTP H23 Turns Counting Dial for Digital Circuits and Systems
Model Name External Diameter(mm) Height(mm) Axle Hole Diameter(mm) Shaw Center Distance
Number of turns Character displaying on Window

Fixed Type H-23-6A 22mm 24mm 6.35mm, 4mm 9mm 0~9 1/3 digits Fixed by Screw


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

PN External Diameter(mm) Height(mm) Axle Hole Diameter(mm) Shaw Center Distance Number of turns  Character displaying on Window Fixed Type
WTP-H23-1 22mm 24mm 6.35mm /4mm 9mm 0~9 3 digits Fixed by Screw
WTP-H23-2 23.3mm 22.6mm 6.35mm 9mm 0~14 One digit Fixed by Screw

Product Drawing

WEET-WTP-H23-Drawing
