WEET MO Series Metal Oxide Resistor

PDF Download

Features

WEET MO Series Metal Oxide Resistor

High Power-to-Size ratio for significant space savings

Excellent long-term stability

Complete flameproof construction

High surge/overload capability

Wide Resistance range: 1Ω~180KΩ

Standard tolerance: ±1%, ±2%, ±5%

Detailed Specifications

Power Rating 70 1/4W, 1/2WS 1/2W, 1WS 1W, 2WS 2W, 3WS 3W, 5WS 5W, 7WS 10W
Series Number MO
Operating Temp. Range -55~ +155
Max. Working Voltage 250V 350V 350V 350V 500V 600V 800V
Max. Overload Voltage 400V 400V 600V 600V 800V 800V 1000V
Dielectric Withstanding Voltage(AC) 300V 350V 350V 500V 1000V 1000V 1000V
Max. Intermittence Overload Voltage 400V 700V 1000V 1000V 1000V 1000V 1000V
Value Range ±1%,  ±2%,  ±5%, 1Ω-180KΩ
Temp. Coefficient (by Type) ±350ppm/

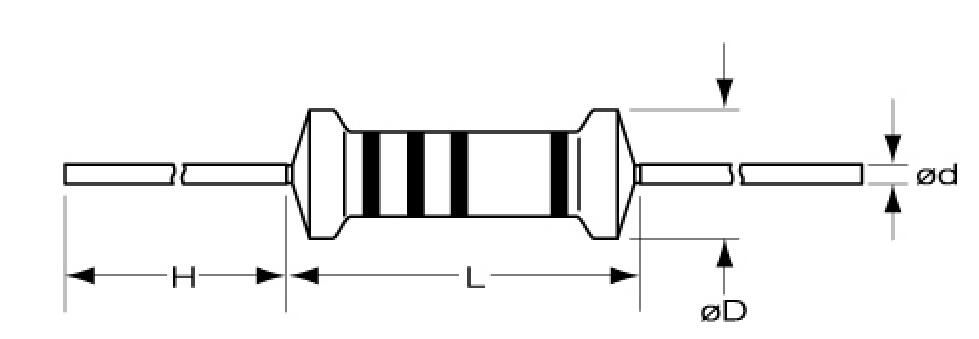

Product Drawing

WEET-MO-Drawing

Main Applications

Complete flameproof construction. Metal Oxide also can replace many low power general purpose wire wound applications, saving both money and time with shorter delivery cycles.
These Metal Oxide Resistors offer excellent performance in applications where stability and uniformity of characteristics are desired.
They provide lower cost alternative to Carbon Composition Resistors and General Purpose Metal Films.
Metal Oxide resistors also can replace many low power general purpose wire wound applications.
Saving both time and money, with shorter delivery cycles.

Cross Reference

Jantzen 10W MOX Resistors,VIS VISATON MOX 10W Resistor, Mundorf Metal Oxide Film 10W Resistors M-Resist MOX
