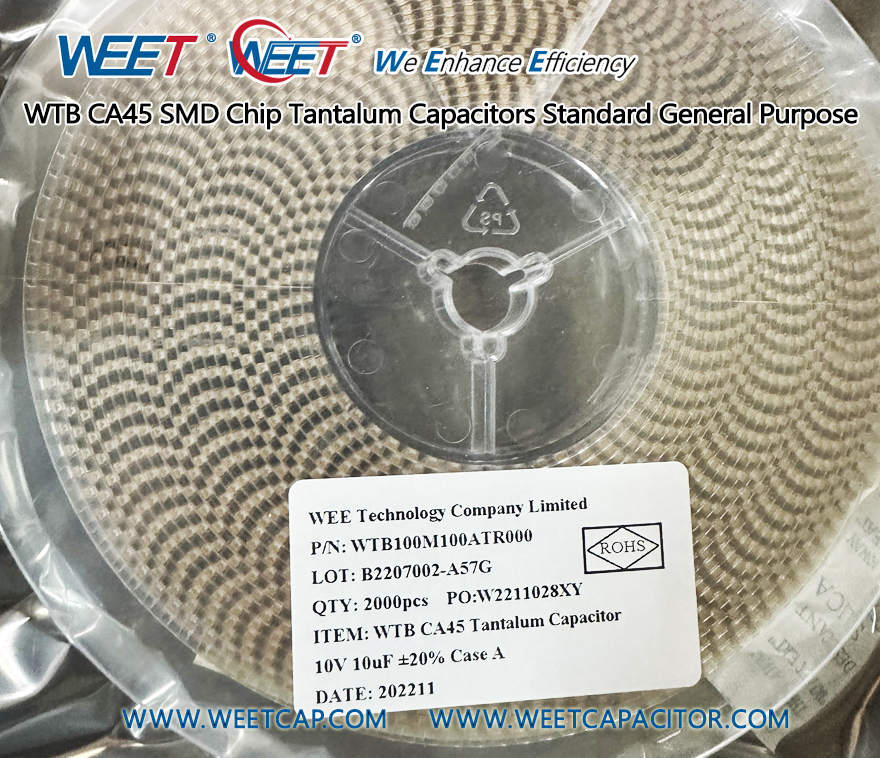

WEET WTB CA45 SMD Chip Tantalum Capacitors Standard General Purpose

PDF Download

Features

WEET WTB CA45 SMD Chip Tantalum Capacitors Standard General Purpose
  • Compatible with all popular “High Volume” automatic pick and equipment
  • Molded case available in six case codes
  • Optical character recognition qualified

Detailed Specifications

Operating Temp.: -55'C ~ +125'C; >85℃(with rated voltage derating)
DC Leakage at 25℃: I0≤0.01 CRUR  or 0.5 uA (Choose the greater one)
Capacitance: 0.1μF~1000μF
Voltage Range: 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 40V, 50V, 63V, 75V, 100V
Tolerance: K: ±10%; M: ±20% (Standard Tolerance)
Case Size: A, B, C, D, E case (SMT)
Package Type: Tape & Reel
SPQ/MPQ: Reel Qty.: A B 2000pcs; C D 500pcs; E 400pcs
Cross Ref.: AVX TAJ series F930, Kemet T491 Series, Vishay 293D

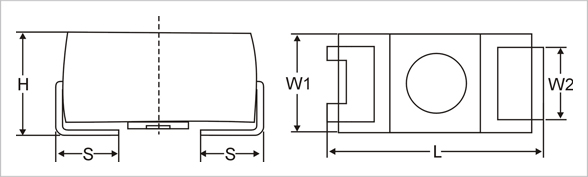

Product Drawing

WEET-WTB-Drawing

Main Applications

WEET WTB Tantalum Capacitor offered by jb is available as per diverse demands of our clients, widely used in various applications, most often in the form of surface mounted devices (SMD). These surface mount tantalum capacitors claim much less space on the printed circuit board and allow for greater packing densities.

Cross Reference

AVX TAJ series F930, Kemet T491 Series, Vishay 293D
