WEET MF Series Metal Film Precision Resistor

PDF Download

Features

WEET MF Series Metal Film Precision Resistor

High precision and low temperature coefficient

Resistance Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%, ±0.05%,±0.01%,

T.C.R/℃: ±5ppm/℃,±10ppm/℃,±15ppm/℃,±25ppm/℃,±50ppm/℃,±100ppm/℃

Mainly used in the industries of precision instruments, electronic measurement.

Detailed Specifications

Power Rating 70  1/6W, 1/8W, 1/4WS 1/4W, 1/2WS 1/2W, 1WS 1W, 2WS 2W, 3WS, 3W, 5W 5WS
Series Number MF
Operating Temp. Range  -55~ +155
Max. Working Voltage 200V 250V 350V 500V 500V
Max. Overload Voltage 400V 600V 700V 1000V 1000V
Dielectric Withstanding Voltage(AC) 300V 500V 700V 1000V 1000V
Max. Intermittence Overload Voltage 400V 600V 700V 1000V 1000V
Value Range ±0.25%,  ±0.5%,  ±1%, ±0.1%  10Ω-1MΩ
Value Range ±0.05%,  ±0.1% 100Ω-100KΩ
Temp. Coefficient (by Type) ±5ppm/,±10ppm/,±15ppm/,±25ppm/,±50ppm/,±100ppm/

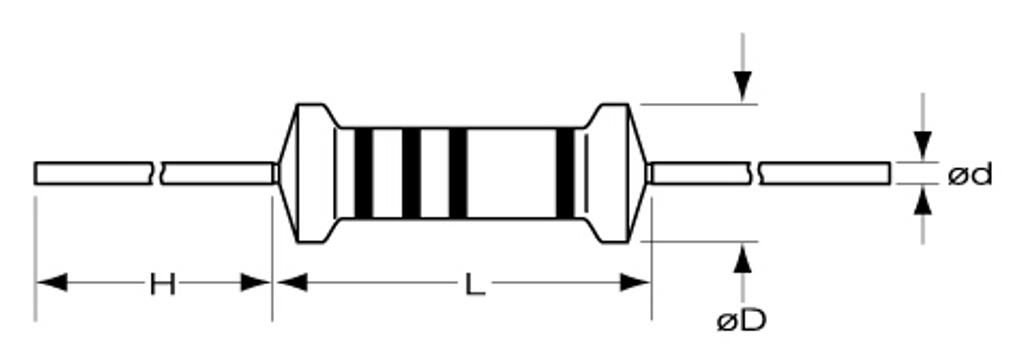

Product Drawing

WEET-MF-Drawing

Main Applications

Mainly used in the industries of precision instruments, electronic measurement.
