WEET WEF CD136 2000H at 105C High Ripple Current Screw Aluminum Electrolytic Capacitors

PDF Download

Features

WEET WEF CD136 2000H at 105C High Ripple Current Screw Aluminum Electrolytic Capacitors
High ripple current, Size may be selected. Used for computers, communication Powers
Hi-ripple circuit of electric vehicle, electric train, general-purpose inverters


Contact Whatsapp Send Enquiry WEET YouTube

Detailed Specifications

Operating Temperature: 25V~100V: -40℃+105℃, 160V~450V: -25℃~+105℃
Rated Voltage: 25V - 450V.DC
Capacitance Range: 220uF - 330000uF
Capacitance Tolerance: ±20% at 120Hz, 20°C
Leakage Current: 0.02CV or 5mA whichever is smaller(at 20℃,after 5 minutes)

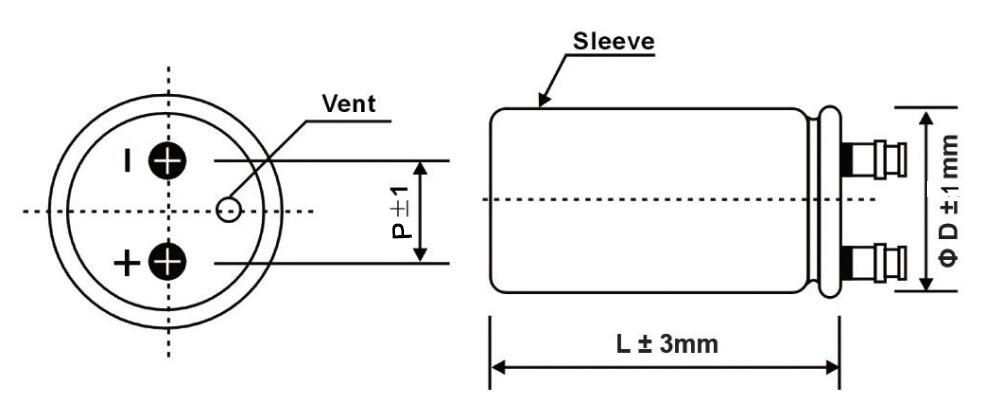

Product Drawing

WEET-WEF-Drawing

Main Applications

CD136 capacitor is a WEF series aluminum electrolytic capacitor produced by WEET, with a rated voltage of 400V and a nominal capacity of 10000 μ F ± 20% (supporting the replacement of mainstream brand capacitors). Mainly used in industrial frequency converters, UPS power supplies, and switch power supply circuits for electronic equipment, it adopts a cylindrical metal shell design, built-in pressure relief device and one-way bolt type lead out structure, and is fixed and installed through snap rings.
