WEET WTP 3306 0.2W 6mm Round Trimming Potentiometer

PDF Download

Features

WEET WTP 3306 0.2W 6mm Round Trimming Potentiometer
Single-Turn / Cermet / Industrial / Open Frame
2 Terminal Styles
Dust resistant/splash resistant covers
Cross slot adjustment options

Detailed Specifications

Standard Resistance Range 100Ω - 1MΩ
Resistance Tolerance ±25% std
Terminal Resistance ≤±1%R or 30Ω)
Contact Resistance Variation (CRV)≤±3%R or 5Ω
Resolution Essentially infinite
Adjustment Angle 215°

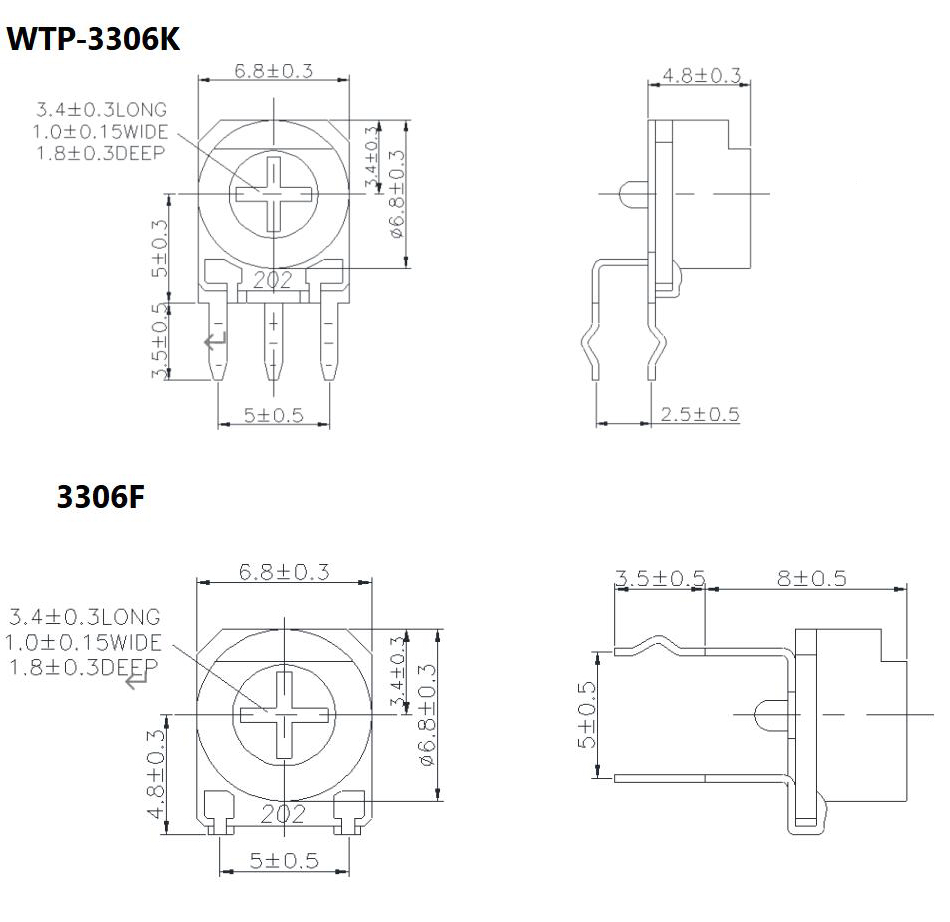

Product Drawing

Main Applications

Military Radios,Control Systems, Radar Systems,Analytical Equipment, Transmission Equipment,Avionics, Laser Altimeters, Power Supplies,Base Stations, Satellite Systems, Portable/Handheld Radios, GPS Navigation, Set-Top Boxes, Sensors, Relays, Laser Diode Drivers, CCTV Cameras, Automated Gates/Doors, Fire Alarms, Metal Detectors, Fluid Measurements, Smoke Detectors, Industrial/Graphic Printers, RFID Systems, Proximity Sensors, Bar Code Scanners, Oscilloscopes, Network Analyzers, Calibration Equipment, Radiation and X-ray Testers, Laser Scanners, Timers, Counters, Power Supplies,Scanners, Medical Meters, Communication Equipment, Temperature andRespiratory Monitors, Blood Chemical Analyzers, Medical Diagnostic Equipment, Mixing Consoles, Sound Processors, Electric Guitars, Instrument Amplifiers, Keyboards, Sound Recording Equipment, Video Editing Stations
