Features

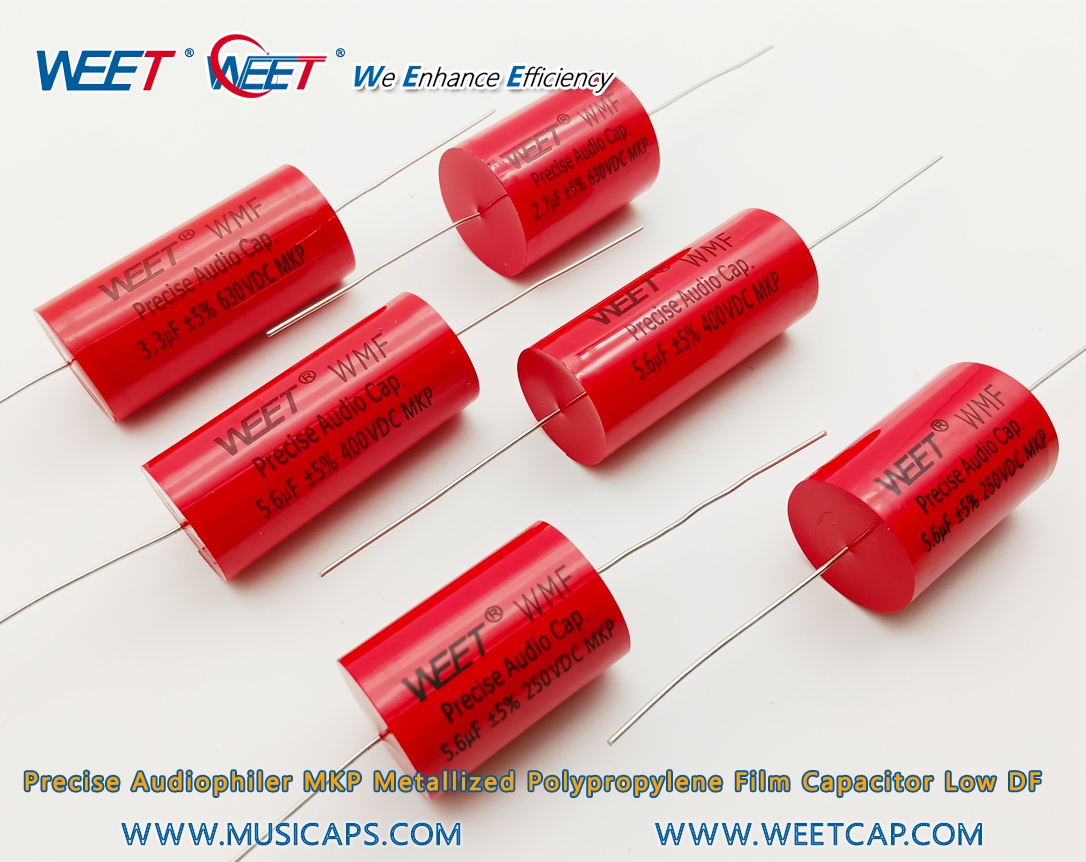

WEET WMF Precise Audiophiler MKP Metallized Polypropylene Film Capacitor Low DF

Quick transient design, High Precise Capacitance ±3%, ±5%
Very Low Dielectric absorption factor, Very Low Dissipation factor, Very Low ESR, Very Low Inductance
Excellent handling of high current audio pulses
The WMF audio capacitor is an excellent replacement for ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm serial audio etc.

Detailed Specifications

Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃～+85℃
Capacitance range 0.1~100uF
Capacitance tolerance ±3%、±5% 1KHz
Rated voltage 250V、400V、630V.DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0005    1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF,    I.R≥5,000S
Leads Diameter 0.8、1.0 Tinned Pure Copper Wire

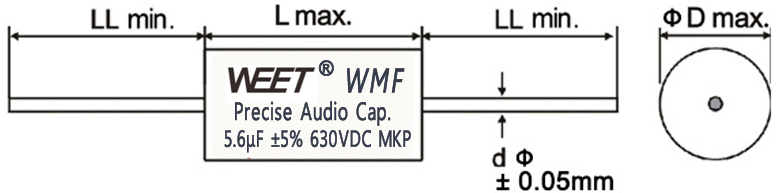

Product Drawing

WEET-WMF-Drawing

Main Applications

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.

In the audio transmission chain in each individual pieces of equipment starting with CD player, record player and tuner, through transducer and pre-amplifier to power amplifier and finally in the crossover of the loudspeaker,
The majority of the applications are directly in the signal path and can have a direct influence on the audio signal.

Voltage Capacitance Cap. Code OD mm Max L mm Max Description WEET PN Solen Jantzen Audio
400V 0.1uF 104 7.5 19 0.1U/400 MKP ±5% WME2G104J000000BR
400V 0.22uF 224 9.5 19 0.22U/400 MKP ±5% WME2G224J000000BR
400V 0.33uF 334 11 19 0.33U/400 MKP ±5% WME2G334J000000BR
400V 0.39uF 394 11.5 19 0.39U/400 MKP ±5% WME2G394J000000BR
400V 0.47uF 474 10.5 25 0.47U/400 MKP ±5% WME2G474J000000BR
400V 0.56uF 564 11.5 25 0.56U/400 MKP ±5% WME2G564J000000BR
400V 0.68uF 684 12.5 25 0.68U/400 MKP ±5% WME2G684J000000BR
400V 0.82uF 824 13.5 25 0.82U/400 MKP ±5% WME2G824J000000BR
400V 1.0uF 105 14.5 25 1.0U/400 MKP ±5% WME2G105J000000BR PB100 001-0410
400V 1.1uF 115 13 31.5 1.1U/400 MKP ±5% WME2G115J000000BR PB110
400V 1.2uF 125 13.5 31.5 1.2U/400 MKP ±5% WME2G125J000000BR PB120 001-0411
400V 1.3uF 135 14 31.5 1.3U/400 MKP ±5% WME2G135J000000BR PB130
400V 1.5uF 155 14.5 31.5 1.5U/400 MKP ±5% WME2G155J000000BR PB150 001-0413
400V 1.6uF 165 15 31.5 1.6U/400 MKP ±5% WME2G165J000000BR PB160
400V 1.8uF 185 16 31.5 1.8U/400 MKP ±5% WME2G185J000000BR PB180 001-0416
400V 2.0uF 205 16.5 31.5 2.0U/400 MKP ±5% WME2G205J000000BR PB200
400V 2.2uF 225 17.5 31.5 2.2U/400 MKP ±5% WME2G225J000000BR PB220 001-0419
400V 2.4uF 245 18 31.5 2.4U/400 MKP ±5% WME2G245J000000BR PB240
400V 2.5uF 255 18.5 31.5 2.5U/400 MKP ±5% WME2G255J000000BR
400V 2.7uF 275 19 31.5 2.7U/400 MKP ±5% WME2G275J000000BR PB270 001-0422
400V 3.0uF 305 20 31.5 3.0U/400 MKP ±5% WME2G305J000000BR PB300
400V 3.3uF 335 20.5 31.5 3.3U/400 MKP ±5% WME2G335J000000BR PB330 001-0425
400V 3.5uF 355 21 31.5 3.5U/400 MKP ±5% WME2G355J000000BR
400V 3.6uF 365 21.5 31.5 3.6U/400 MKP ±5% WME2G365J000000BR PB360 001-0428
400V 3.9uF 395 22.5 31.5 3.9U/400 MKP ±5% WME2G395J000000BR PB390 001-0431
400V 4.0uF 405 23 31.5 4.0U/400 MKP ±5% WME2G405J000000BR
400V 4.2uF 425 23.5 31.5 4.2U/400 MKP ±5% WME2G425J000000BR
400V 4.3uF 435 23.5 31.5 4.3U/400 MKP ±5% WME2G435J000000BR PB430
400V 4.5uF 455 24 31.5 4.5U/400 MKP ±5% WME2G455J000000BR
400V 4.7uF 475 19.5 46 4.7U/400 MKP ±5% WME2G475J000000BR PB470 001-0434
400V 5.0uF 505 20 46 5.0U/400 MKP ±5% WME2G505J000000BR
400V 5.1uF 515 20 46 5.1U/400 MKP ±5% WME2G515J000000BR PB510
400V 5.6uF 565 21 46 5.6U/400 MKP ±5% WME2G565J000000BR PB560 001-0437
400V 6.0uF 605 22 46 6.0U/400 MKP ±5% WME2G605J000000BR
400V 6.2uF 625 22 46 6.2U/400 MKP ±5% WME2G625J000000BR PB620
400V 6.8uF 685 23 46 6.8U/400 MKP ±5% WME2G685J000000BR PB680 001-0440
400V 7.0uF 705 23.5 46 7.0U/400 MKP ±5% WME2G705J000000BR
400V 7.5uF 755 24 46 7.5U/400 MKP ±5% WME2G755J000000BR PB750
400V 8.0uF 805 25 46 8.0U/400 MKP ±5% WME2G805J000000BR
400V 8.2uF 825 25.5 46 8.2U/400 MKP ±5% WME2G825J000000BR PB820 001-0443
400V 9.1uF 915 26.5 46 9.1U/400 MKP ±5% WME2G915J000000BR PB910
400V 10uF 106 28 46 10U/400 MKP ±5% WME2G106J000000BR PB1000 001-0446
400V 11uF 116 29.5 46 11U/400 MKP ±5% WME2G116J000000BR PB1100
400V 12uF 126 30.5 46 12U/400 MKP ±5% WME2G126J000000BR PB1200 001-0447
400V 13uF 136 31.5 46 13U/400 MKP ±5% WME2G136J000000BR PB1300
400V 14uF 146 32.5 46 14U/400 MKP ±5% WME2G146J000000BR
400V 15uF 156 33.5 46 15U/400 MKP ±5% WME2G156J000000BR PB1500 001-0449
400V 16uF 166 31 56 16U/400 MKP ±5% WME2G166J000000BR PB1600
400V 18uF 186 33 56 18U/400 MKP ±5% WME2G186J000000BR PB1800 001-0452
400V 20uF 206 34.5 56 20U/400 MKP ±5% WME2G206J000000BR PB2000
400V 22uF 226 36.5 56 22U/400 MKP ±5% WME2G226J000000BR PB2200 001-0455
400V 24uF 246 38 56 24U/400 MKP ±5% WME2G246J000000BR PB2400
400V 27uF 276 40 56 27U/400 MKP ±5% WME2G276J000000BR PB2700
400V 28uF 286 41 56 28U/400 MKP ±5% WME2G286J000000BR
400V 30uF 306 42 56 30U/400 MKP ±5% WME2G306J000000BR PB3000
400V 33uF 336 44 56 33U/400 MKP ±5% WME2G336J000000BR PB3300 001-0458
400V 36uF 366 46 56 36U/400 MKP ±5% WME2G366J000000BR PB3600
400V 39uF 396 48 56 39U/400 MKP ±5% WME2G396J000000BR PB3900
400V 40uF 406 46 61 40U/400 MKP ±5% WME2G406J000000BR
400V 41uF 416 47 61 41U/400 MKP ±5% WME2G416J000000BR
400V 43uF 436 48 61 43U/400 MKP ±5% WME2G436J000000BR PB4300
400V 45uF 456 49 61 45U/400 MKP ±5% WME2G456J000000BR PB470
400V 47uF 476 50 61 47U/400 MKP ±5% WME2G476J000000BR PB4700 001-0461
400V 56uF 566 43 66 56U/400 MKP ±5% WME2G566J000000BR PB5600 001-0464
400V 68uF 686 47 66 68U/400 MKP ±5% WME2G686J000000BR PB6800 001-0467
400V 82uF 826 48 76 82U/400 MKP ±5% WME2G826J000000BR PB8200 001-0470
400V 100uF 107 49 86 100U/400 MKP ±5% WME2G107J000000BR PB10000 001-0473

Cross Reference

Well, after plenty of burn-in time (that they need to open-up) they deliver a wide and open sound stage. Nice and neutral, WEET WMF Precise sounds quite organized when compared with other standard MKP's in this price range. Like all basic MKP's thay can get a bit muddled when complex programme material is fed to them but they do have a certain tidyness to them which makes them go further before that sets in. The WMF Precise is reasonably well balanced and neutral and in a positive way nothing sticks out. This works especially well on recordings of jazz-trio's or other small ensembles making it easier to pick out the details. The Clarity Cap SA and ESA will give you more image depth and richer harmonic overtones and the Mundorf EVO Oil will give you sharper leading edges to notes but it must be stated that those capacitors are in a higher price bracket. It is just to give you an idea in what sound quality range we are looking at here.

Cross to : http://www.jantzen-audio.com/wp-content/uploads/Standard-Z-Cap-Data.pdf

Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 1.0uF ±5% 400V OD*L:13.5*24mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 8.2uF ±5% 400V OD*L:24.5*45mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 1.2uF ±5% 400V OD*L:12.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 10uF ±5% 400V OD*L:27*45mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 1.5uF ±5% 400V OD*L:13.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 12uF ±5% 400V OD*L:29.5*45mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 1.8uF ±5% 400V OD*L:15*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 15uF ±5% 400V OD*L:32.5*45mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 2.2uF ±5% 400V OD*L:16.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 18uF ±5% 400V OD*L:32*55mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 2.7uF ±5% 400V OD*L:18*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 22uF ±5% 400V OD*L:35.5*55mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 3.3uF ±5% 400V OD*L:19.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 33uF ±5% 400V OD*L:42*55mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 3.6uF ±5% 400V OD*L:20.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 47uF ±5% 400V OD*L:49*60mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 3.9uF ±5% 400V OD*L:21.5*30.5mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 56uF ±5% 400V OD*L:42*65mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 4.7uF ±5% 400V OD*L:18.5*45mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 68uF ±5% 400V OD*L:46*65mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 5.6uF ±5% 400V OD*L:20*45mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 82uF ±5% 400V OD*L:47*75mm
Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 6.8uF ±5% 400V OD*L:22*45mm Precise Audiophiler MKP Metallized Polypropylene Film Capacitor 100uF ±5% 400V OD*L:48*85mm
