WEET WME Premium Metallized Polypropylene Film Capacitor For Music Audio Application

PDF Download

Features

WEET WME Premium Metallized Polypropylene Film Capacitor For Music Audio Application
WEET WME axial metallized polypropylene film capacitor is made of vacuum aluminum plated polypropylene film as the combination of dielectric and electrode.
The electrode is led out by tinned copper wire and filled with 94V-0 epoxy resin.
Capacitance range from 0.1uF~100uF, rated voltage are 50V100V250V、400V、630V.DC.
Quick transient design, High Precise Capacitance ±1%, ±2%, ±3%, ±5%
Very Low Dielectric absorption factor, Very Low Dissipation factor, Very Low ESR, Very Low Inductance

Detailed Specifications

Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃~+85℃
Capacitance range 0.1~100uF
Capacitance tolerance ±1%, ±2%, ±3%, ±5% 1KHz
Rated voltage 50V100V250V、400V、630V.DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0010    1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF,    I.R≥5,000S
Leads Diameter 0.8、1.0 Tinned Pure Copper Wire

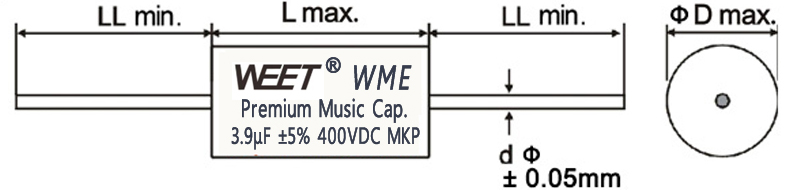

Product Drawing

WEET-WME-Drawing

Main Applications

MKP audio capacitor, Audio Grade Capacitors, Audiophiler MKP, MKP Axial Capacitor 400V , Polypropylene Film, HiFi Audio MKP Capacitor, non-polarized metalized polypropylene crossover capacitors , bi-polar Audio Crossover Capacitor Amplifier Module.

WEET WME MKP Polypropylene Premium Music Precise Audio Low DF Film Audiophile Capacitor for Crossover and Speaker.

Low voltage 50V100V.DC and High Precise Capacitance ±1%, ±2% are low voltage polypropylene audio capacitors in small size, which is very suitable for RIAA type filters.

Items Voltage Cap. Tol. Size Max OD*L WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1 WME-250V 0.22uF ±5% 8.5*19mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.22uF-Metallised-Polypropylene-Crossover-Capacitors-Replace-Solen.html
2 WME-250V 0.33uF ±5% 9.5*19mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.33uF-MKP-For-Loudspeaker-Crossover-Networks.html
3 WME-250V 0.39uF ±5% 10*19mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.39uF-PMPC-Precision-Audio-Capacitor-Replace-Solen.html
4 WME-250V 0.47uF ±5% 11*19mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.47uF-By-passing-Small-Value-Non-polar-Kondensator.html
5 WME-250V 0.56uF ±5% 10*25mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.56uF-X-Over-Capacitors-For-Hifi-Applications.html
6 WME-250V 0.68uF ±5% 10.5*25mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.68uF-Non-polarized-Metalized-Polyester-Capacitor.html
7 WME-250V 0.82uF ±5% 11.5*25mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-0.82uF-Audio-Video-Solen-Capacitors-Polypropylene.html
8 WME-250V 1.0uF ±5% 12.5*25mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-1.0uF-250V-105J-Axial-Pro-Dividing-Film-Kondensator.html
9 WME-250V 1.5uF ±5% 12.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-1.5uF-Monacor-Bipolar-MKT-MKP-CBB20-CL20-Polyester.html
10 WME-250V 1.8uF ±5% 12.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-1.8uF-M-cap-MKP-Audiophller-Audiophile-Crossover-Kondensator.html
11 WME-250V 2.2uF ±5% 14.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-2.2uF-ClarityCap-2.2mfd-CSA-Copper-Connect-Poly-Capacitor.html
12 WME-250V 2.7uF ±5% 16*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-2.7uF-MKP-Audiophiler-Test-Review-Cross-to-JB-and-Suntan.html
13 WME-250V 3.3uF ±5% 17.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-3.3uF-Audiophiler-MKP-Audio-Grade-Axial-Round-Caps.html
14 WME-250V 3.9uF ±5% 19*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-3.9uF-395J-Mundorf-MCap-MPT-Cross-Dayton-Audio.html
15 WME-250V 4.7uF ±5% 20.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-4.7uF-DMPC-Polypropylene-Capacitor-For-Auto-Speakers.html
16 WME-250V 5.6uF ±5% 22.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-5.6uF-Dayton-Audio-Polypropylene-MKP-Yellow-Capacitors.html
17 WME-250V 6.8uF ±5% 24*31.5mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-6.8uF-Audio-Capacitor-MKP-Frequency-Divider-Crossover-HIFI.html
18 WME-250V 8.2uF ±5% 21*46mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-8.2uF-CBB20-Polypropylene-Audio-Film-Capacitors-For-Power-Amplifier.html
19 WME-250V 10uF ±5% 23*46mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-10uF-CAST-Polypropylene-Capacitors-for-Loudspeaker-Power-Supply.html
20 WME-250V 15uF ±5% 28*46mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-15uF-Best-Replacement-Bevenbi-MKPA-C-Polypropylene-Capacitor.html
21 WME-250V 22uF ±5% 33.5*46mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-22uF-MKP-Capacitors-For-Speaker-Frequency-Divider-Amplifier.html
22 WME-250V 33uF ±5% 36.5*56mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-33uF-Audiophiler-Axial-MKP-Capacitor-High-Voltage-and-Capacitance.html
23 WME-250V 47uF ±5% 42*61mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-47uF-Audio-Capacitor-Cross-to-ClarityCap-for-Speaker-Crossover.html
24 WME-250V 56uF ±5% 46*61mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-56uF-CBB20-MKP-Yellow-Horizontal-Axial-MKP-Capacitors.html
25 WME-250V 68uF ±5% 39.5*61mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-68uF-CBB20-MPT-MKP-Axial-Metallized-Polypropylene-Film.html
26 WME-250V 100uF ±5% 46*61mm https://weetcap.com/Audio-Capacitors/WEET-WME-250V-100uF-Yellow-CBB20-MKP-Kondensator-For-Amplifier.html
Items Voltage Cap. Tol. Size Max OD*L WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1 WME-400V 1.0uF ±5% 14.5*25mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-1.0uF-Cross-to-JANTZEN-AUDIO-STANDARD-Z-CAP-Capacitor.html
2 WME-400V 1.2uF ±5% 13.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-1.2uF-MKP-Audiophile-Frequency-Divided-Audio-Capacitor.html
3 WME-400V 1.5uF ±5% 14.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-1.5uF-Replace-MCap-Classic-Capacitors-in-High-Pass-Tweeter-Crossovers.html
4 WME-400V 1.8uF ±5% 16*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-1.8uF-185J-AudioPhiler-Tubular-Audio-Capacitor.html
5 WME-400V 2.2uF ±5% 17.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-2.2uF-Cross-to-Dayton-Audio-DFFC-By-Pass-Capacitors.html
6 WME-400V 2.7uF ±5% 19*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-2.7uF-ARCOTRONICS-MKP-Axial-Film-Capacitor-For-Audio.html
7 WME-400V 3.3uF ±5% 20.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-3.3uF-MKP-Axial-Kondensator-Crossover-Capacitors.html
8 WME-400V 3.6uF ±5% 21.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-3.6uF-Axial-MKP-Miflex-Audio-Capacitor-for-Speaker-Crossover.html
9 WME-400V 3.9uF ±5% 22.5*31.5mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-3.9uF-Audyn-Q4-MKP-X-Over-Capacitor-Upgrade.html
10 WME-400V 4.7uF ±5% 19.5*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-4.7uF-CBB20-MKP-474-J-Axial-Lead-Film-Capacitor.html
11 WME-400V 5.6uF ±5% 21*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-5.6uF-Audyn-Cap-Q4-MKP-Metalized-Polypropylene-Capacitor.html
12 WME-400V 6.8uF ±5% 23*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-6.8uF-Audaphon-MKP-Capacitor-Superior-Polypropylene.html
13 WME-400V 8.2uF ±5% 25.5*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-8.2uF-Replace-Solen-Fast-Caps-400v-Polypropylene-Capacitor.html
14 WME-400V 10uF ±5% 28*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-10uF-Mundorf-400V-M-Cap-Capacitor-For-Amplifier.html
15 WME-400V 12uF ±5% 30.5*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-12uF-Filter-Capacitors-Audio-MKP-PB-FC-For-Loudspeaker.html
16 WME-400V 15uF ±5% 33.5*46mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-15uF-Replacement-Capacitors-in-a-Speaker-Crossover-Application.html
17 WME-400V 18uF ±5% 33*56mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-18uF-Sounder-Bipolar-Crossover-MKP-Foil-Capacitor-for-Crossover.html
18 WME-400V 22uF ±5% 36.5*56mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-22uF-Metallized-Polypropylene-Film-Suppliers-and-Manufacturers.html
19 WME-400V 33uF ±5% 44*56mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-33uF-Large-Value-MKP-Polypropylene-Film-Capacitor.html
20 WME-400V 47uF ±5% 50*61mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-47uF-Prueba-de-Music-Condensador-MKP-47-Microfaradios.html
21 WME-400V 56uF ±5% 43*66mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-56uF-Which-Capacitor-Type-is-Used-in-Audio-Amplifier-Circuits.html
22 WME-400V 68uF ±5% 47*66mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-68uF-Original-Fever-Treble-Crossover-MKP-Film-Capacitor.html
23 WME-400V 82uF ±5% 48*76mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-82uF-Capacitor-Upgrade-in-Crossover-MKP-400V-Film-Capacitor.html
24 WME-400V 100uF ±5% 49*86mm https://weetcap.com/Audio-Capacitors/WEET-OEM-WME-400V-100uF-Bennic-XPP-High-Capacitance-Audio-Hifi-Crossover-NP.html

Cross Reference

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.
WME capacitors are your standard choice for all of your loudspeaker projects.This high quality Premium Audio film capacitor provide perfect sound quality.

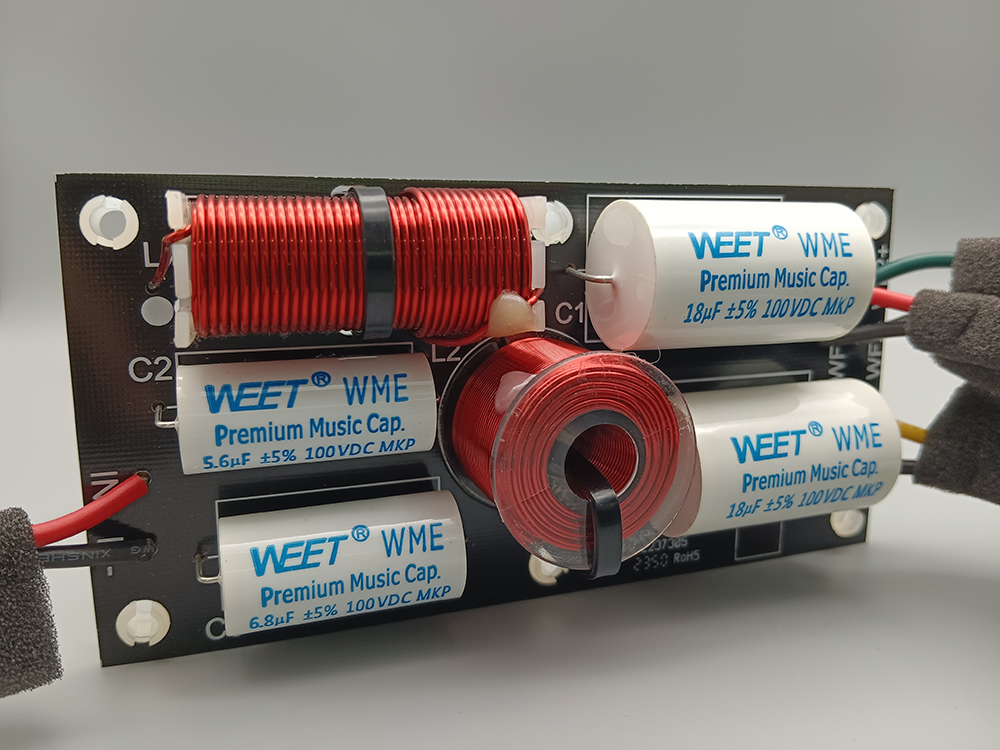

Excellent handling of high current audio pulses, typical applications include General DC Applications, Wave filtering, Bypass, Coupling and decoupling, High end Crossover

Customer Reviews
Well, after plenty of burn-in time (that they need to open-up) they deliver a wide and open sound stage. Nice and neutral, WEET WME Premium sounds quite organized when compared with other standard MKP's in this price range. Like all basic MKP's thay can get a bit muddled when complex programme material is fed to them but they do have a certain tidyness to them which makes them go further before that sets in. The WME Premium is reasonably well balanced and neutral and in a positive way nothing sticks out. This works especially well on recordings of jazz-trio's or other small ensembles making it easier to pick out the details. The Clarity Cap SA and ESA will give you more image depth and richer harmonic overtones and the Mundorf EVO Oil will give you sharper leading edges to notes but it must be stated that those capacitors are in a higher price bracket. It is just to give you an idea in what sound quality range we are looking at here.

WME: The WME, like the WMC, is very compact, with an attractive white tape wrap. Performance and character are quite similar, but subjectively it appears to make further gains in transients through the crossover range where the capacitor has its greatest influence on the sound
--- From Mr Stefan Whatcott, United Kingdom
Cross to 400V MKP Audiophile Frequency-Divided Audio Capacitor Speaker, Audyn Cap Q4 400V MKP Metalized Polypropylene Foil Crossover Capacitor, Jantzen Audio Standard Z-Cap Metalized polypropylene foil capacitor, Solen Fast Caps 400v Polypropylene
Dayton audio Metalized Polypropylene Crossover Capacitors, Dayton audio PMPC Tightest capacitor tolerance available: +/-1%, Dayton audio 400V DMPC capacitor tolerance available: +/-5%, Audyn Cap Q2 Intertechnik Cap 250V Polypropylene Kondensator, Audyn Cap Q4  Intertechnik 400V MKP Polypropylene Folienkondensator, Audyn Cap QS4  Intertechnik Cap 400V MKP Polypropylene Kondensator, Audyn Qtex4  Intertechnik Cap 400V MKP Polypropylene Kondensator, Audyn Cap Q6  Intertechnik Cap 630V MKP Polypropylene Kondensator ,Audyn Cap QS6  Intertechnik Cap 630V MKP Polypropylene Kondensator.

WEET-WME-Premium-Music-Film-Capacitor-Crossover-HIFI-Precise-Tolerance-50V-100V-Low-Voltage
