WEET WMA MKT CL19 Metallized Polyester Film Capacitor Axial and Round

PDF Download

Features

WEET WMA MKT CL19 Metallized Polyester Film Capacitor Axial and Round

WMA is constructed with metallized polyester film as medium and electricode, wrapped and sealed with flame-retardant plastic and epoxy resin.
With high reliability, high temperature-resistance, high moisture resistance, small volume, large capacity and good self-healing property.
Flame retardant epoxy material, vacuum encapsulation, good safety and good appearance consistency.
Environmental protection material, flame retardant epoxy material, vacuum encapsulation, good safety and good appearance consistency.

Detailed Specifications

Operating Temperature:

-40℃~ +105℃
Rated Voltage: 100V, 250V, 400V, 630V.DC
Withstand Voltage: 1.6UR 2s (1.5UR 5s)
Capacitance Range: 0.033 ~ 68μF

Capacitance Tolerance:

±5%, ±10%

Insulation Resistance:

C≤0.33μF VR≤100V(10V)≥7500MΩ
VR>100V≥15000 MΩ
Dissipation Factor: C<1μF, ≤0.013 10KHz
1μF
C>10μF, ≤0.010  1KHz

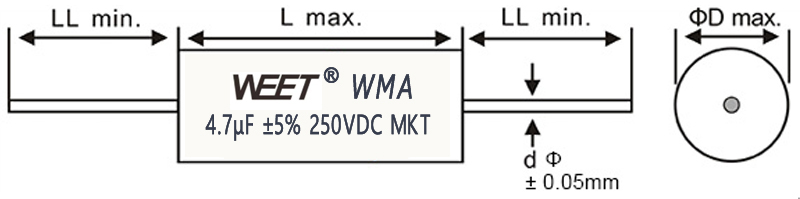

Product Drawing

WEET-WMA-Drawing

Main Applications

Mainly used in instruments and the DC & AC circuit of the household equipment and the fractional frequency circuit of acoustics system.
also be widely used for various DC and pulsating circuits such as audacious widely beio-visual, communication, power supply and audio frequency division circuits.

Cross Reference

Kemet MKT A50, Wima MKB 6, Vishay MKT 1813, Iskra KEU 1012, Epcos B32231-2

WEET audio capacitors can replace ERSE, Mundorf - MCAP MKP, Jantzen Audio, Mallory, BENNIC, SCR / SOLEN, Auricap, INTERTECHNIK, Ampohm audio series.
