WEET WMR to Replace Cross Cap Metalized Polypropylene Zinc and Aluminum Foil Capacitors

PDF Download

Features

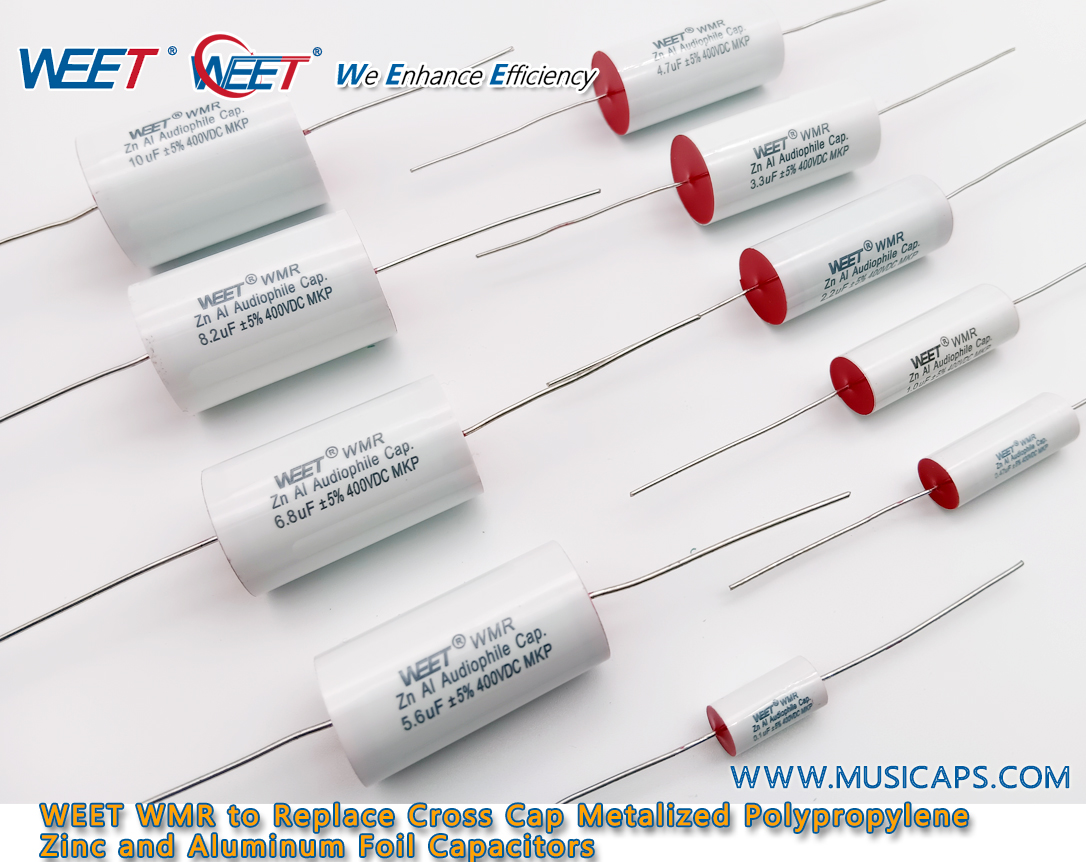

WEET WMR to Replace Cross Cap Metalized Polypropylene Zinc and Aluminum Foil Capacitors

WMR is constructed with a good quality aluminum and zinc based metalized polypropylene foil as medium and electrode, wrapped and sealed with flame-retardant plastic and epoxy resin.

With high reliability, high temperature-resistance, small volume, large capacity and good self-healing property.


A great multipurpose entry-level audiophile capacitor

Virtually free of distortion and delivers a pleasant and rather neutral sonic profile.

Detailed Specifications

Operating Temperature -40℃~ +85℃
Rated Voltage 400V.DC. 100V 250V 630V are Available on Request
Withstand Voltage 1.6UR 2s (1.5UR 5s)
Capacitance Range 0.1μF ~ 300μF
Capacitance Tolerance ±5%
Insulation Resistance C≤0.33μF,VR≤100V(10V)≥7500MΩ
VR>100V ≥15000 MΩ
C>0.33μF VR≤100V(10V)≥2500S VR>100V ≥5000S

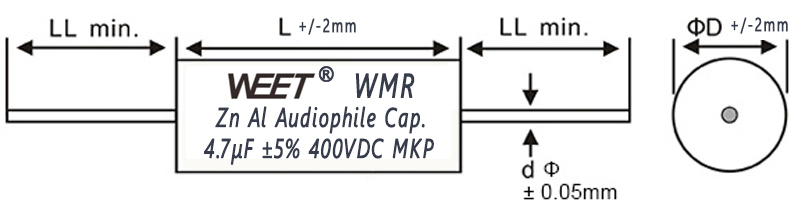

Product Drawing


Main Applications

NO. PN DESCRIPTION QTY (PC)

WMR Zinc and Aluminum MKP Audiophile Capacitor D*L:+/-2mm Stock Offers
1 WMR-0.10uF-400V 0.1uF ±5% 400V 8*16 500
2 WMR-0.47uF-400V 0.47uF ±5% 400V 10*26 500
3 WMR-1.0uF-400V 1.0uF ±5% 400V 12*31 500
4 WMR-2.2uF-400V 2.2uF ±5% 400V 15*36 500
5 WMR-3.3uF-400V 3.3uF ±5% 400V 18*36 500
6 WMR-4.7uF-400V 4.7uF ±5% 400V 19*36 500
7 WMR-5.6uF-400V 5.6uF ±5% 400V 21*36 500
8 WMR-6.8uF-400V 6.8uF ±5% 400V 22*36 500
9 WMR-8.2uF-400V 8.2uF ±5% 400V 24*36 500
10 WMR-10.0uF-400V 10.0uF ±5% 400V 26*36 500

Cross Reference

Cross to Jantzen-audio Cross Cap 400V.  (100V 250V 630V are Available on Request)

CAPACITANCE WEET PN WMR to Replace Cross Cap Metalized Polypropylene Zinc and Aluminum Foil Capacitors  OD*L±2mm Cross Jantzen PN
0,10μF WMR2G104J000000BR 0.1uF 400V ±5% 7*18mm Axial Bulk RoHS 001-0200
0,12μF WMR2G124J000000BR 0.12uF 400V ±5% 7*18mm Axial Bulk RoHS 001-0202
0,15μF WMR2G154J000000BR 0.15uF 400V ±5% 8*19mm Axial Bulk RoHS 001-0204
0,18μF WMR2G184J000000BR 0.18uF 400V ±5% 8*19mm Axial Bulk RoHS 001-0206
0,22μF WMR2G224J000000BR 0.22uF 400V ±5% 8*19mm Axial Bulk RoHS 001-0208
0,27μF WMR2G274J000000BR 0.27uF 400V ±5% 9*19mm Axial Bulk RoHS 001-0210
0,30μF WMR2G304J000000BR 0.3uF 400V ±5% 9*19mm Axial Bulk RoHS 001-0212
0,33μF WMR2G334J000000BR 0.33uF 400V ±5% 9*25mm Axial Bulk RoHS 001-0214
0,39μF WMR2G394J000000BR 0.39uF 400V ±5% 9*25mm Axial Bulk RoHS 001-0216
0,43μF WMR2G434J000000BR 0.43uF 400V ±5% 10*25mm Axial Bulk RoHS 001-0218
0,47μF WMR2G474J000000BR 0.47uF 400V ±5% 10*25mm Axial Bulk RoHS 001-0220
0,56μF WMR2G564J000000BR 0.56uF 400V ±5% 11*25mm Axial Bulk RoHS 001-0224
0,68μF WMR2G684J000000BR 0.68uF 400V ±5% 11*25mm Axial Bulk RoHS 001-0226
0,82μF WMR2G824J000000BR 0.82uF 400V ±5% 12*25mm Axial Bulk RoHS 001-0228
1.0μF WMR2G105J000000BR 1.0uF 400V ±5% 11*31mm Axial Bulk RoHS 001-0230
1.1μF WMR2G115J000000BR 1.1uF 400V ±5% 12*31mm Axial Bulk RoHS 001-0232
1.2μF WMR2G125J000000BR 1.2uF 400V ±5% 12*31mm Axial Bulk RoHS 001-0234
1.5μF WMR2G155J000000BR 1.5uF 400V ±5% 14*31mm Axial Bulk RoHS 001-0236
1.6μF WMR2G165J000000BR 1.6uF 400V ±5% 14*26mm Axial Bulk RoHS 001-02366
1.8μF WMR2G185J000000BR 1.8uF 400V ±5% 15*26mm Axial Bulk RoHS 001-0237
2.0μF WMR2G205J000000BR 2.0uF 400V ±5% 16*31mm Axial Bulk RoHS 001-02372
2.2μF WMR2G225J000000BR 2.2uF 400V ±5% 15*36mm Axial Bulk RoHS 001-0238
2.4μF WMR2G245J000000BR 2.4uF 400V ±5% 15*35mm Axial Bulk RoHS 001-0239
2.7μF WMR2G275J000000BR 2.7uF 400V ±5% 17*36mm Axial Bulk RoHS 001-0240
3.0μF WMR2G305J000000BR 3.0uF 400V ±5% 18*36mm Axial Bulk RoHS 001-0241
3.3μF WMR2G335J000000BR 3.3uF 400V ±5% 18*36mm Axial Bulk RoHS 001-0242
3.6μF WMR2G365J000000BR 3.6uF 400V ±5% 16*36mm Axial Bulk RoHS 001-0244
3.9μF WMR2G395J000000BR 3.9uF 400V ±5% 17*36mm Axial Bulk RoHS 001-0246
4.1μF WMR2G415J000000BR 4.1uF 400V ±5% 17*36mm Axial Bulk RoHS 001-0247
4.3μF WMR2G435J000000BR 4.3uF 400V ±5% 17*36mm Axial Bulk RoHS 001-0248
4.5μF WMR2G455J000000BR 4.5uF 400V ±5% 18*36mm Axial Bulk RoHS 001-0249
4.7μF WMR2G475J000000BR 4.7uF 400V ±5% 18*36mm Axial Bulk RoHS 001-0250
5.1μF WMR2G515J000000BR 5.1uF 400V ±5% 19*36mm Axial Bulk RoHS 001-0252
5.4μF WMR2G545J000000BR 5.4uF 400V ±5% 20*36mm Axial Bulk RoHS 001-0253
5.6μF WMR2G565J000000BR 5.6uF 400V ±5% 21*36mm Axial Bulk RoHS 001-0254
6.2μF WMR2G625J000000BR 6.2uF 400V ±5% 21*36mm Axial Bulk RoHS 001-0256
6.8μF WMR2G685J000000BR 6.8uF 400V ±5% 24*36mm Axial Bulk RoHS 001-0258
7.5μF WMR2G755J000000BR 7.5uF 400V ±5% 23*36mm Axial Bulk RoHS 001-0260
8.2μF WMR2G825J000000BR 8.2uF 400V ±5% 24*36mm Axial Bulk RoHS 001-0262
9.1μF WMR2G915J000000BR 9.1uF 400V ±5% 25*36mm Axial Bulk RoHS 001-0263
10μF WMR2G106J000000BR 10uF 400V ±5% 26*36mm Axial Bulk RoHS 001-0264
12μF WMR2G126J000000BR 12uF 400V ±5% 26*44mm Axial Bulk RoHS 001-0266
15μF WMR2G156J000000BR 15uF 400V ±5% 29*44mm Axial Bulk RoHS 001-0268
16μF WMR2G166J000000BR 16uF 400V ±5% 29*44mm Axial Bulk RoHS 001-0269
18μF WMR2G186J000000BR 18uF 400V ±5% 31*44mm Axial Bulk RoHS 001-0270
20μF WMR2G206J000000BR 20uF 400V ±5% 31*44mm Axial Bulk RoHS 001-0271
22μF WMR2G226J000000BR 22uF 400V ±5% 34*44mm Axial Bulk RoHS 001-0272
25μF WMR2G256J000000BR 25uF 400V ±5% 32*58mm Axial Bulk RoHS 001-0273
27μF WMR2G276J000000BR 27uF 400V ±5% 32*58mm Axial Bulk RoHS 001-0274
30μF WMR2G306J000000BR 30uF 400V ±5% 35*58mm Axial Bulk RoHS 001-0276
33μF WMR2G336J000000BR 33uF 400V ±5% 36*58mm Axial Bulk RoHS 001-0278
36μF WMR2G366J000000BR 36uF 400V ±5% 38*58mm Axial Bulk RoHS 001-0279
39μF WMR2G396J000000BR 39uF 400V ±5% 39*58mm Axial Bulk RoHS 001-0280
47μF WMR2G476J000000BR 47uF 400V ±5% 44*58mm Axial Bulk RoHS 001-0282
51μF WMR2G516J000000BR 51uF 400V ±5% 44*58mm Axial Bulk RoHS 001-0283
56μF WMR2G566J000000BR 56uF 400V ±5% 46*58mm Axial Bulk RoHS 001-0284
68μF WMR2G686J000000BR 68uF 400V ±5% 50*58mm Axial Bulk RoHS 001-0286
82μF WMR2G826J000000BR 82uF 400V ±5% 54*58mm Axial Bulk RoHS 001-0288
100μF WMR2G107J000000BR 100uF 400V ±5% 59*58mm Axial Bulk RoHS 001-0290
120μF WMR2G127J000000BR 120uF 400V ±5% 42*112mm Axial Bulk RoHS 001-0292
150μF WMR2G157J000000BR 150uF 400V ±5% 45*112mm Axial Bulk RoHS 001-0294
220μF WMR2G227J000000BR 220uF 400V ±5% 57*112mm Axial Bulk RoHS 001-0296
270μF WMR2G277J000000BR 270uF 400V ±5% 62*112mm Axial Bulk RoHS 001-0298
300μF WMR2G307J000000BR 300uF 400V ±5% 69*112mm Axial Bulk RoHS 001-0299
