WEET WMO Oil Immersed Pure Copper Foil and PP Polypropylene Film Capacitors

PDF Download

Features

WEET WMO Oil Immersed Pure Copper Foil and PP Polypropylene Film Capacitors
FEATURES
Extremely low loss, internal resistance, and inductance.
Stable operation with a lifespan of 100000 hours and unchanged sound quality.
The outer sealing material has a shielding effect.
Application:Bravery amplifier.Home audio, car audio, stage audio and other audio equipment.

STRUCTURE
Imported 6N copper foil inner core.
High tin content tin zinc alloy welding layer.
PET metal coating, flame retardant epoxy resin encapsulation.
Silver plated copper wire.

TECHNOLOGY

German high-temperature industrial oil impregnation technology.
High temperature vacuum heat treatment technology.
Independently develops the "13 layer" gold spraying technology.

Detailed Specifications

Items Characteristics Characteristics Characteristics Characteristics
Rated Voltage 630VDC 400VDC 250VDC 100VDC
Capacitance Range 0.01μF~1.0μF 0.1μF~3.3μF 3.9μF~5.6μF 6.8μF~8.2μF
Capacitance Tolerance ±5% (J) ±5% (J) ±5% (J) ±5% (J)
Voltage Proof 630VDC 400VDC 250VDC 10VDC
Dissipation Factor See size table See size table See size table See size table

For other voltage and capacitance, please check with WEET sales. WEET is capable of doing custom service for you. Thank you.

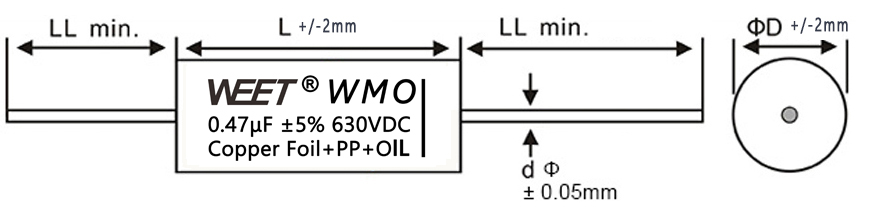

Product Drawing

Main Applications

Crossover, Tweeter Bass, Audio Speaker, CD player, Amplifier, Loudspeakers, DAC Built, Crossover Filters, Middle range speaker.Bravery amplifier.Home audio, car audio, stage audio and other audio equipment.

Items Caps. Voltage Tolerance WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1 0.01uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.01uF-630V-Copper-Foil-and-PP-in-Oil-Capacitors-for-Crossover.html
2 0.033uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.033uF-630V-Copper-Foil-and-Film-in-Oil-Capacitors-for-Amplifier.html
3 0.068uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.068uF-630V-Cross-Miflex-Copper-Foil-Capacitor.html
4 0.1uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.1uF-630V-Cross-Audionote-Copper-Foil-in-Oil-Capacitor.html
5 0.22uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.22uF-630V-Cross-Jensen-Copper-Foil-Paper-In-Oil-Silver-Lead.html
6 0.33uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.33uF-630V-Cross-KPCU-Copper-Foil-Oil-Immersed-Paper-Tube.html
7 0.47uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.47uF-630V-Oil-Copper-Foil-and-PP-Capacitors-Cross-MIFLEX-KPCU-Jensen.html
8 0.82uF 630V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.82uF-630V-Copper-in-OIL-Capacitors-Cross-to-Jupiter-Copper-Foil-400V.html
9 0.22uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-0.22uF-400V-Cross-Duelund-JDM-Copper-Foil-Oil-Immersed-Capacitor.html
10 1.0uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-1.0uF-400V-Cross-Mundorf-Silver-Oil-VS-Jensen-Copper-Foil.html
11 2.0uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-2.0uF-400V-Cross-Jupiter-Copper-Foil-Capacitor-Review.html
12 2.2uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-2.2uF-400V-Pure-Copper-in-Wax-oil-Compare-with-Duelund.html
13 2.7uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-2.7uF-400V-Au-Ag-Lead-Copper-Foil-Oil-V-Cap-CuTF-Copper-Foil-Capacitors.html
14 3.3uF 400V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-3.3uF-400V-Pure-Copper-Foil-and-Film-Replace-Miflex-Clarity-Cap-ESA.html
15 3.9uF 250V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-3.9uF-250V-Cross-Audyn-True-Copper-Cap-Copper-Foil-Capacitor.html
16 4.3uF 250V ±5% https://weetcap.com/Audio-Capacitors/WEET-WMO-4.3uF-250V-Cross-Copper-Foil-Paper-Wax-Capacitors-100V.html

Cross Reference

WEET WMO Oil Immersed Pure Copper Foil and PP Polypropylene Film Capacitors Cross Miflex KPCU Copper Foil Capacitor, Duelund JDM series copper foil oil immersed Capacitor, Audyn True Copper Foil Capacitor, Audionote Copper Foil in Oil Capacitor,Jensen copper foil capacitors, Jupiter copper foil capacitor

CAPACITANCE WEET PN WEET WMO Oil Immersed Pure Copper Foil and PP Polypropylene Film Capacitors , D*L:+/-2mm MIFLEX                KPCU-01 Jensen Copper Foil, Paper in Oil, in a Copper can Capacitors
0,001μF JCCu-005
0,0015μF JCCu-010
0,0022μF JCCu-020
0,0033μF JCCu-030
0,0047μF JCCu-040
0,01μF JCCu-050
0,01μF WMO2J103J000000BR 0.01uF 630V ±5% OD*L11.5*21mm Axial Bulk RoHS
0,022μF WMO2J223J000000BR 0.022uF 630V ±5% OD*L15*21mm Axial Bulk RoHS KPCU01H322J
0,027μF KPCU01H327J
0,033μF WMO2J333J000000BR 0.033uF 630V ±5% OD*L17*21mm Axial Bulk RoHS KPCU01H333J
0,039μF KPCU01H339J
0,047μF WMO2J473J000000BR 0.047uF 630V ±5% OD*L23*21mm Axial Bulk RoHS KPCU01H347J
0,056μF KPCU01H356J
0,068μF WMO2J683J000000BR 0.068uF 630V ±5% OD*L23*21mm Axial Bulk RoHS KPCU01H368J
0,082μF KPCU01H382J
0,1μF WMO2J104J000000BR 0.1uF 630V ±5% OD*L24*21mm Axial Bulk RoHS KPCU01H410J JCCu-100
0,12μF KPCU01H412J
0,15μF KPCU01H415J JCCu-110
0,18μF KPCU01H418J
0,22μF WMO2J224J000000BR 0.22uF 630V ±5% OD*L22*36mm Axial Bulk RoHS KPCU01H422J JCCu-140
0,27μF KPCU01H427J
0,33μF WMO2J334J000000BR 0.33uF 630V ±5% OD*L20*57mm Axial Bulk RoHS KPCU01H433J JCCu-160
0,39μF KPCU01H439J
0,47μF WMO2J474J000000BR 0.47uF 630V ±5% OD*L23*57mm Axial Bulk RoHS KPCU01H447J JCCu-180
