WEET WMM BP Axial Bi polar Aluminum Electrolytic Capacitors for Audio and Speaker System

PDF Download

Features

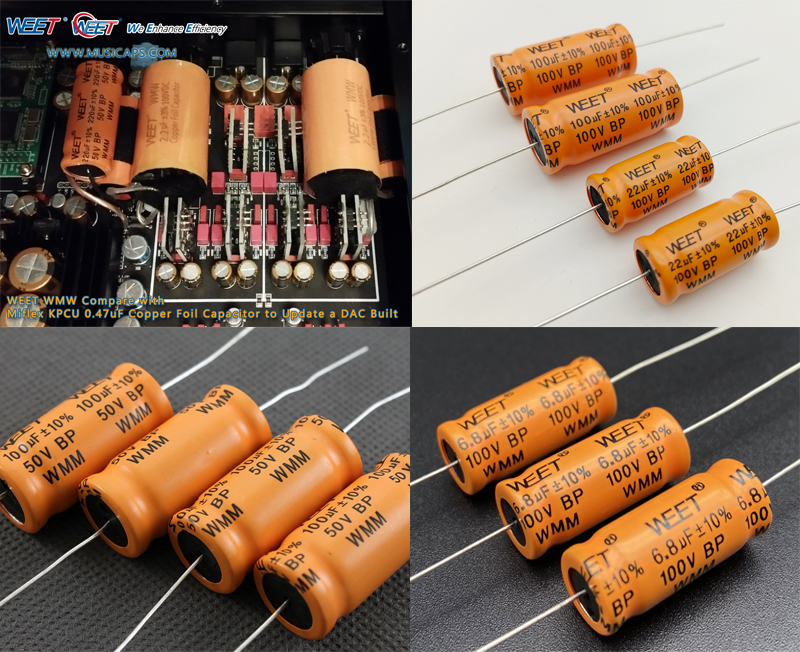

WEET WMM BP Axial Bi polar Aluminum Electrolytic Capacitors for Audio and Speaker System
High-quality crossover non-polar aluminum electrolytic capacitors
Low Dissipation Factor MAX 5% at 1KHz,Bi-Polarized,105℃ 1000 hours

Detailed Specifications

Operating Temperature: -40℃~+105℃
Rated Voltage: 50V, 100V.DC
Leakage Current: MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
Capacitance Range: 1uF ~ 150uF
Capacitance Tolerance: ±10%
Dissipation Factor: MAX 5% at 1KHz  (Other Dissipation Factor 3%, 4%, 6%, 7%, 8%, 9%, 10%, 12% are available on request)

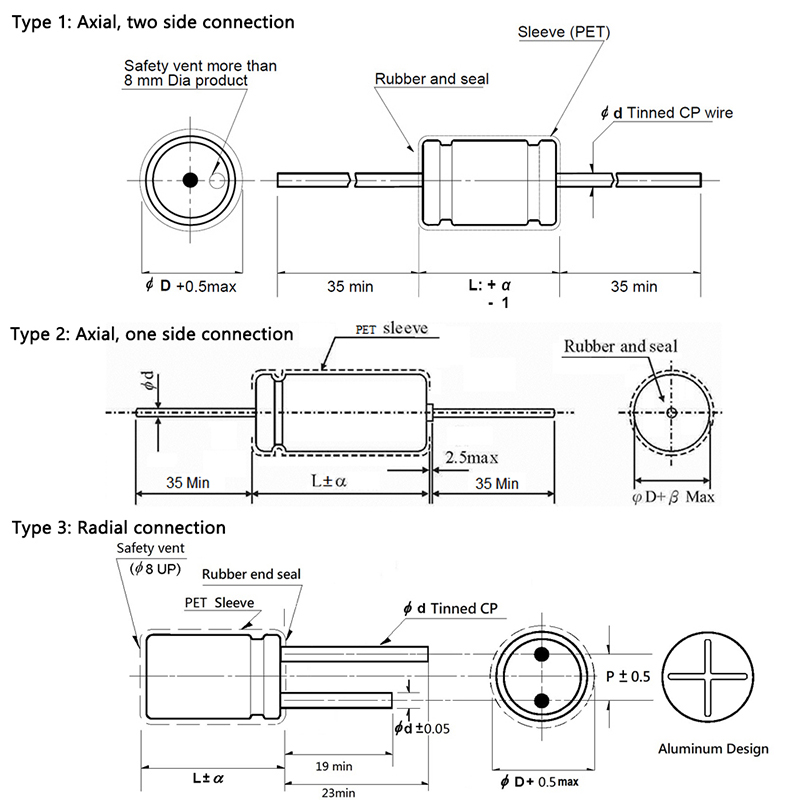

Product Drawing

WEET-WMM-Drawing

Main Applications

Specially produced for Cross-Over Networks with high fidelity audio system.Product mainly used in Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on

Cross Reference

Popular Items cross reference to Visaton brand.

https://www.visaton.de/en/products/accessories/crossover-parts/electrolytic-capacitors

" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."

--- Comment by Stanislav Nadelyaev from Russia

No. WMM 1000H 105°C, DF 5% Visaton PN WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1 10uF ±10% 50V OD:L: 13*27mm / https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-10uF-50V-BP-Axial-Bi-Polar-Aluminum-Electrolytic-Capacitors.html
2 15uF ±10% 50V OD:L: 13*27mm 5379 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-15uF-50V-Audio-Grade-Aluminum-Electrolytic-Capacitors.html
3 20uF ±10% 50V OD:L: 13*27mm / https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-20uF-50V-Non-Polarized-Low-Loss-low-DF-BIPOLAR-CAPACITOR.html
4 22uF ±10% 50V OD:L: 13*27mm 5381 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-22uF-50V-Audio-Capacitors-Axial-NP-BP-Aluminum-Electrolytic.html
5 33uF ±10% 50V OD:L: 13*31mm 5380 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-33uF-50V-Cross-Electrolytic-Cap-Crossover-Audio-Capacitors.html
6 47uF ±10% 50V OD:L: 13*31mm 5382 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-47uF-50V-Cross-Nichicon-Audio-Capacitors.html
7 56uF ±10% 50V OD:L:13*31mm / https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-56uF-50V-Replacement-Visaton-BIPOLAR-CAPACITOR.html
8 68uF ±10% 50V OD:L: 16*34mm 5384 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-68uF-50V-Coupling-Aluminium-Electrolytic-Bipolar-Capacitors.html
9 82uF ±10% 50V OD:L: 16*34mm 5386 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-82uF-50V-Visaton-Bipolar-Elco-Speaker-Capacitor.html
11 100uF ±10% 50V OD:L: 16*34mm 5388 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-100uF-50V-VIS-ELKO-5388-Bipolar-Capacitors.html
10 120uF ±10% 50V OD:L: 16*43mm / https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-120uF-50V-Bipolar-Al-Electrolytic-Capacitors.html
12 150uF ±10% 50V OD:L: 16*43mm 5390 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-150uF-50V-Condensateur-Visaton-Bipolar-Elco.html
13 220uF ±10% 50V OD:L: 18*44mm 5392 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMM-220uF-50V-Visaton-Lautsprecher-Kondensator.html
No. WMN 1000H 105°C, DF 10% Visaton PN WEET Description , Manufacturing Process, Product Photos, Datasheet Download
1 330uF ±10% 50V OD:L: 18*44mm 5394 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-330uF-50V-Cross-Visaton-Speaker-Driver-Capacitors.html
2 470uF ±10% 50V OD:L: 22*45mm 5396 https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-470uF-50V-1000H-105C-Low-DF-Ecap-Bipolar-Kondensator.html
3 680uF ±10% 50V OD:L: 22*45mm / https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WMN-680uF-50V-63V-100V-Axial-Radial-Electrolytic-Capacitors.html
